Commands and Control
MAESTRO
xs
is a program-
mable device to control the
machine that can adapt its
operation to the specic re-
quirements of the network it is
connected to.
099
It has several programming levels, with
special possibilities of control/analysis of
operation and of failures.
The advanced programming and analysis
levels are protected by digital codes so as
to prevent any unintentional tampering.
Maestro
xs
has a storage that saves the
settings made over time as well as the data
on operation even if the machine is not con-
nected to the electrical line or if voltage drops
occur.
A weekly schedule of starts/stops can be set
that is combined with the management of
the connection to other machines so as to
control any multiple installations as efcien-
tly as possible.
“Maestro xs” is a control device made up
of two separate units:
- Display with keypad
- Data input-output device

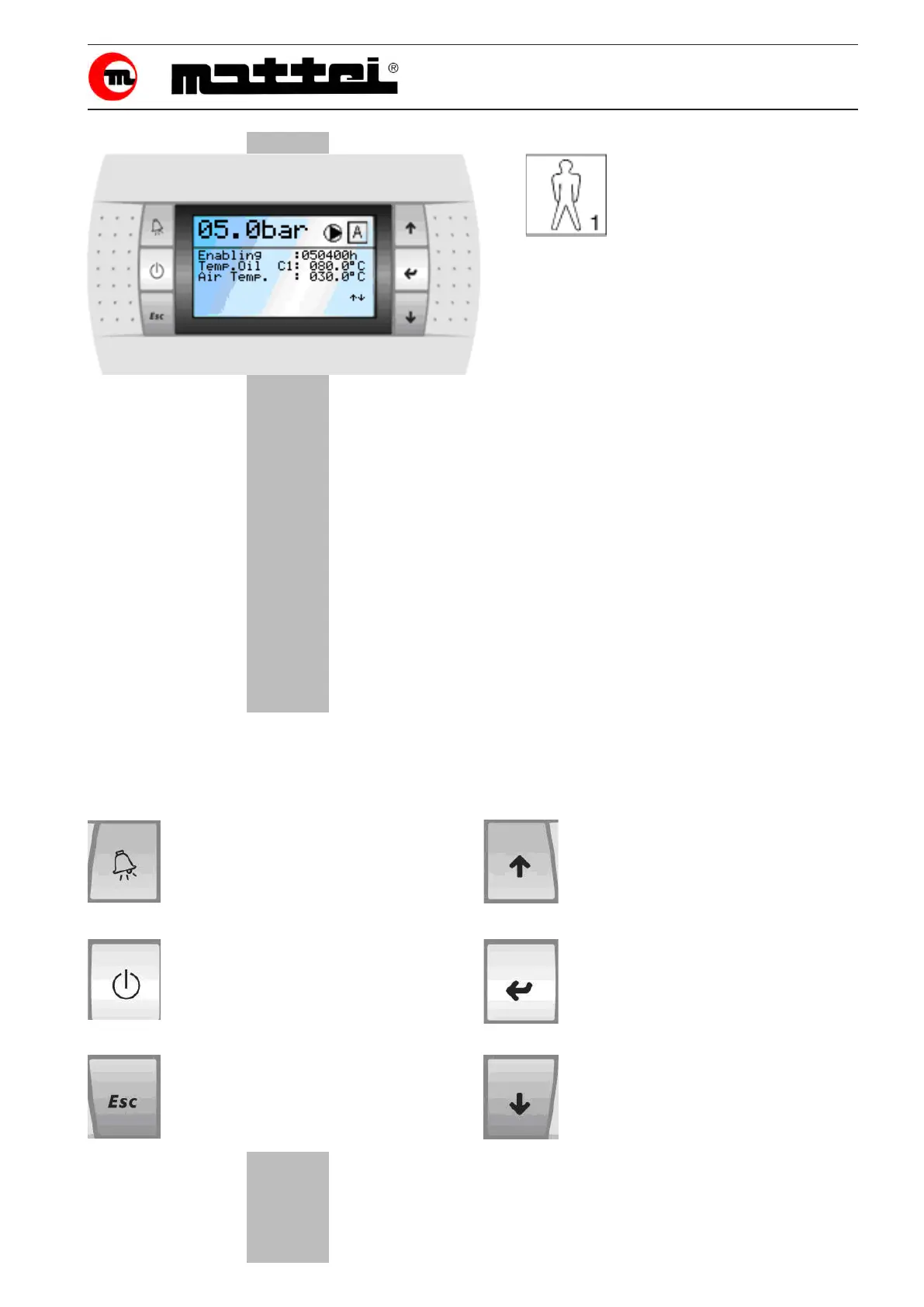

Keypad
The buttons are backlit for enhanced clarity and, in some cases, in order to complete the information
provided by the device.
Reset buttons: Resets any faults
detected by the system. Eliminate
the reason for the fault rst.
Up button: Moves around the
various menus. Also increases the
value of a variable in the edit mode.
On / Off button: Enables and
disables the compressor.
Enter button: Accesses the selec-
ted menu and opens and closes the
memory in the edit mode.
Esc button: Accesses the main
menu and exits the current menu.
Down button: Moves around the
various menus. Also decreases the
value of a variable in the edit mode.
