Maverick ATOM - Page 18

18

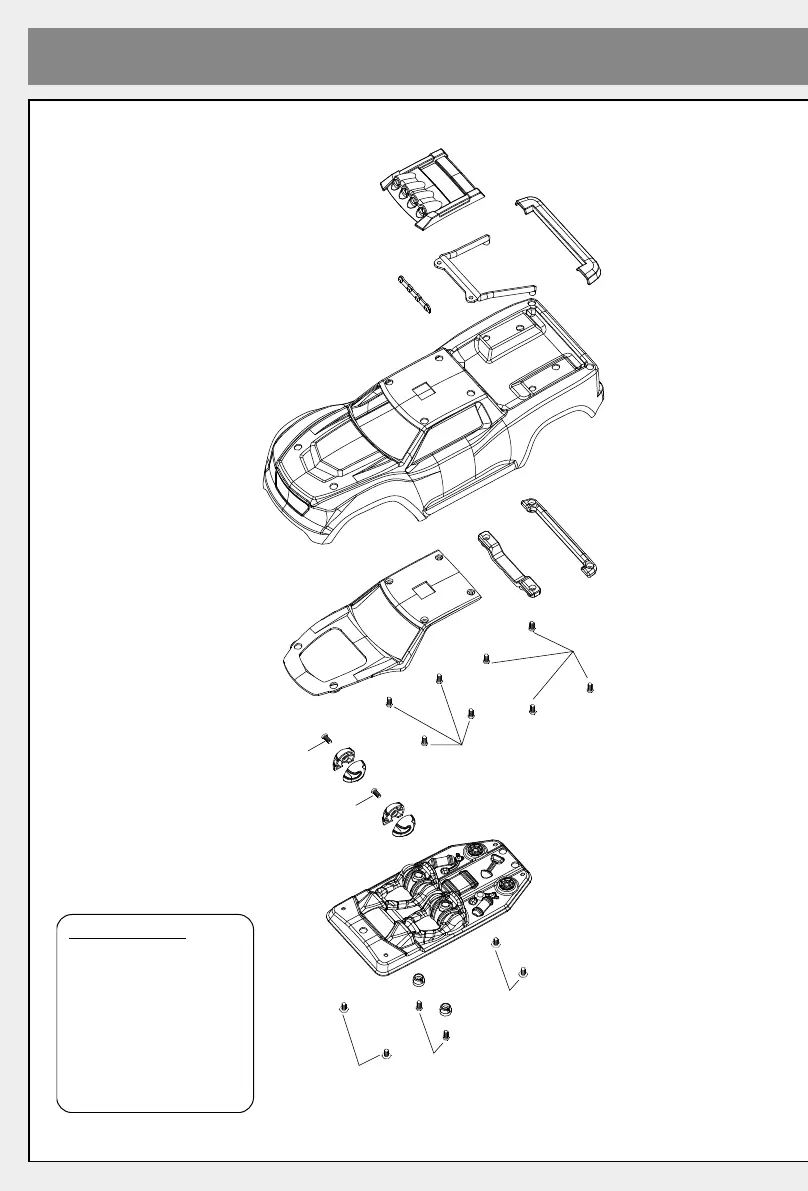

Exploded View
Explosionszeichnung
Vue éclatée
Diagrama desplegado
5
*
150530 Hardware Set
a Pan Head TP. Screw 2.6x8mm
b Pan Head TP. Screw 2.6x6mm
c Step Screw 3x8mm
d Flanged Screw 2.5x8mm
e Flanged TP. Screw 2.3x5mm
f Flat Head Screw 2.5x6mm
g Flat Head TP. Screw 2.6x5mm
h Pan Head TP. Screw 2.3x6mm
i Flat Head TP. Screw 2.6x8mm
j Pan Head TP. Screw 1.7x7mm
k Flanged TP. Screw 2.6x6mm
l Pan Head Screw 3x12mm
m Pivot Ball Screw
150530e
150530b
150546
150530b
150530e
150530h
150530b
150530b
150546
150546
150546
Assembled Bodyshell
150531: Blue
150532: Red
150533: Orange
150534: Green
*
Assembled Bodyshell
