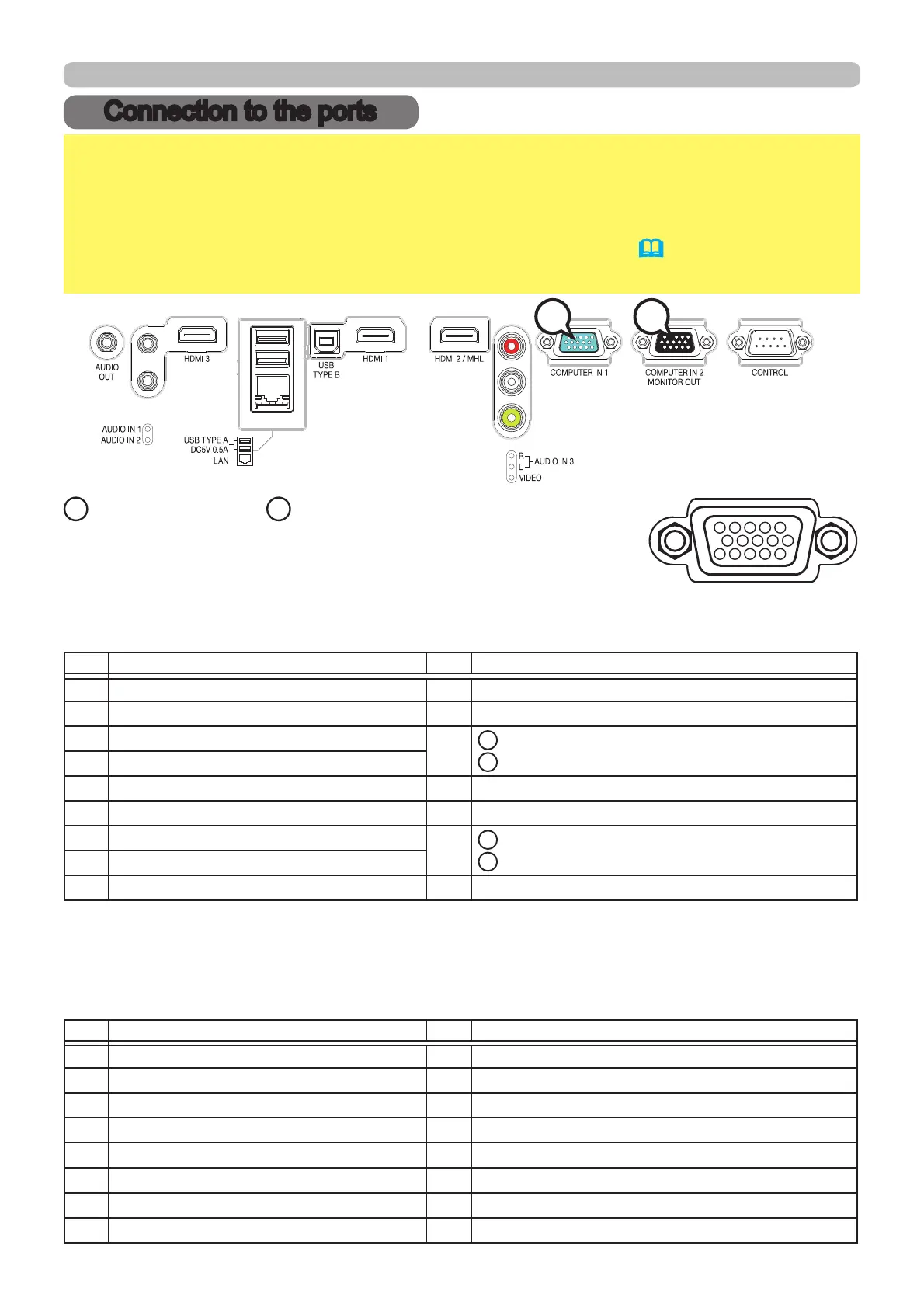

Connection to the ports
Connection to the ports
NOTICE
Ź8VHWKHFDEOHVZLWKVWUDLJKWSOXJVQRW/VKDSHGRQHVDVWKH
input ports of the projector are recessed.
Ź2QO\WKHVLJQDOWKDWLVLQSXWIURPWKHCOMPUTER IN1 can be output from
the COMPUTER IN2/MONITOR OUT port. The way is available only when
the MONITOR OUT is selected for the COMPUTER IN2. (
INPUT menu -
COMPUTER IN in the Operating Guide)
A
COMPUTER IN1,
B
COMPUTER IN2/MONITOR OUT
D-sub 15pin mini shrink jack
(1) for PC signal
9LGHRVLJQDO5*%VHSDUDWH$QDORJ9SSȍWHUPLQDWHGSRVLWLYH
• H/V. sync. Signal: TTL level (positive/negative)
• Composite sync. Signal: TTL level
Pin Signal Pin Signal
1
Video Red 10 Ground
2 Video Green 11 (No connection)
3 Video Blue
12
A
: SDA (DDC data)
B
: (No connection)
4 (No connection)
5 Ground 13 H. sync / Composite sync.
6 Ground Red 14 V. sync.
7 Ground Green
15
A
: SCL (DDC clock)
B
: (No connection)
8 Ground Blue
9 (No connection) - -


   
(2) for Component signal
<&RPSRQHQWYLGHR<ZLWKFRPSRVLWHV\QF9SSWHUPLQDWRU
&U3U&RPSRQHQWYLGHR&U3U9SSWHUPLQDWRU
&E3E&RPSRQHQWYLGHR&E3E9SSWHUPLQDWRU
System:480i@60,480p@60,576i@50,576p@50,720p@50/60,1080i@50/60,1080p@50/60
Pin Signal Pin Signal
1
Cr/Pr 9 (No connection)
2 Y 10 Ground
3 Cb/Pb 11 (No connection)
4 (No connection) 12 (No connection)
5 Ground 13 (No connection)
6 Ground Cr/Pr 14 (No connection)
7 Ground Y 15 (No connection)
8 Ground Cb/Pb - -
