12
M-70

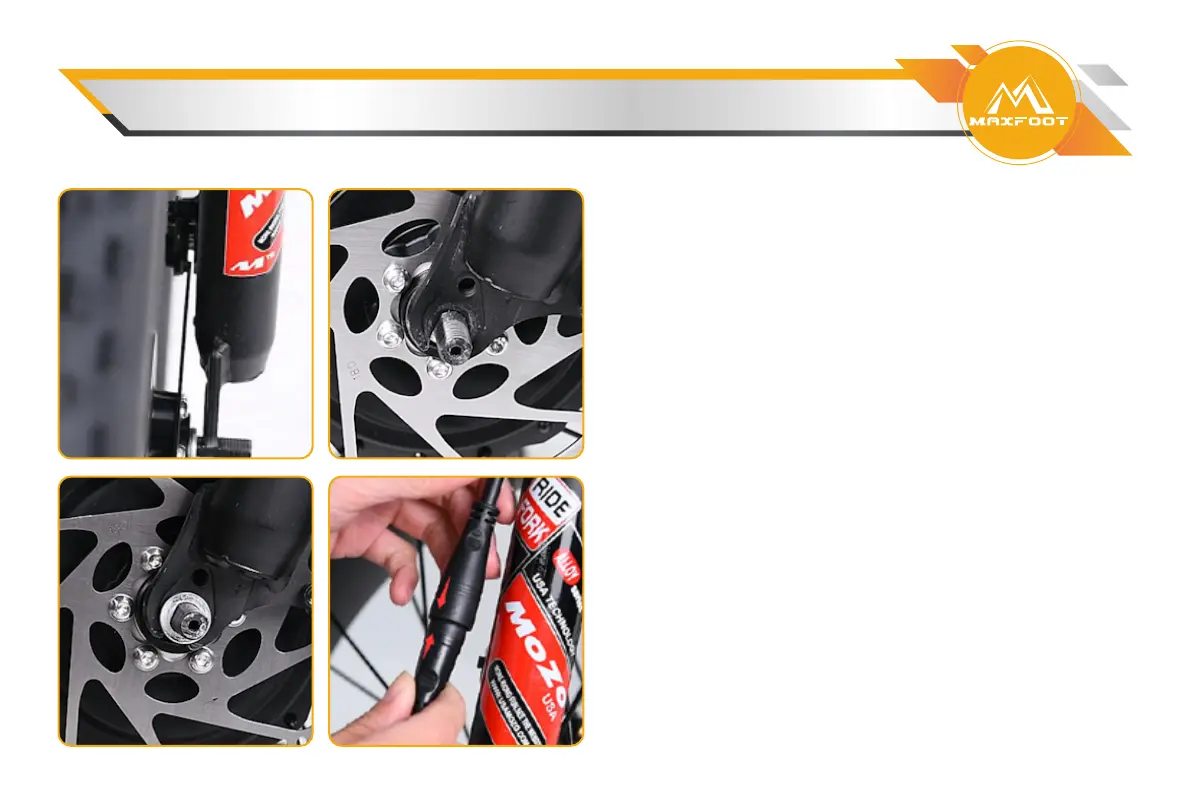

Front Wheel
1.Loosen the bolts on the front fork protcet bar
and remove it.
2. Loosen and remove the nut on the front wheel
axle, install the front wheel by lining up the disc
brake. The front wheel should be fully seated and
centered in the dropouts of the front fork, the
brake rotor should be in between the brake pads
in the brake caliper.
3.Install the gaskets in order. When installing a
gasket with a protrusion, please place the protrusion
into the notch of the front fork.
4.Tighten the nuts on both sides at the same time
by hand, then turn the front wheel to check if the
disc brake will be rubbed. If not, please hold tight
one side with spanner, and then screw up the
other side with spanner, screw up reverse side
by same method until the nuts on both sides are
completely fixed.
5.Connect the motor wires according to the
arrow marks on the male and female heads.
Step 2：Install the front wheel
