Troubleshooting
Basic Troubleshooting

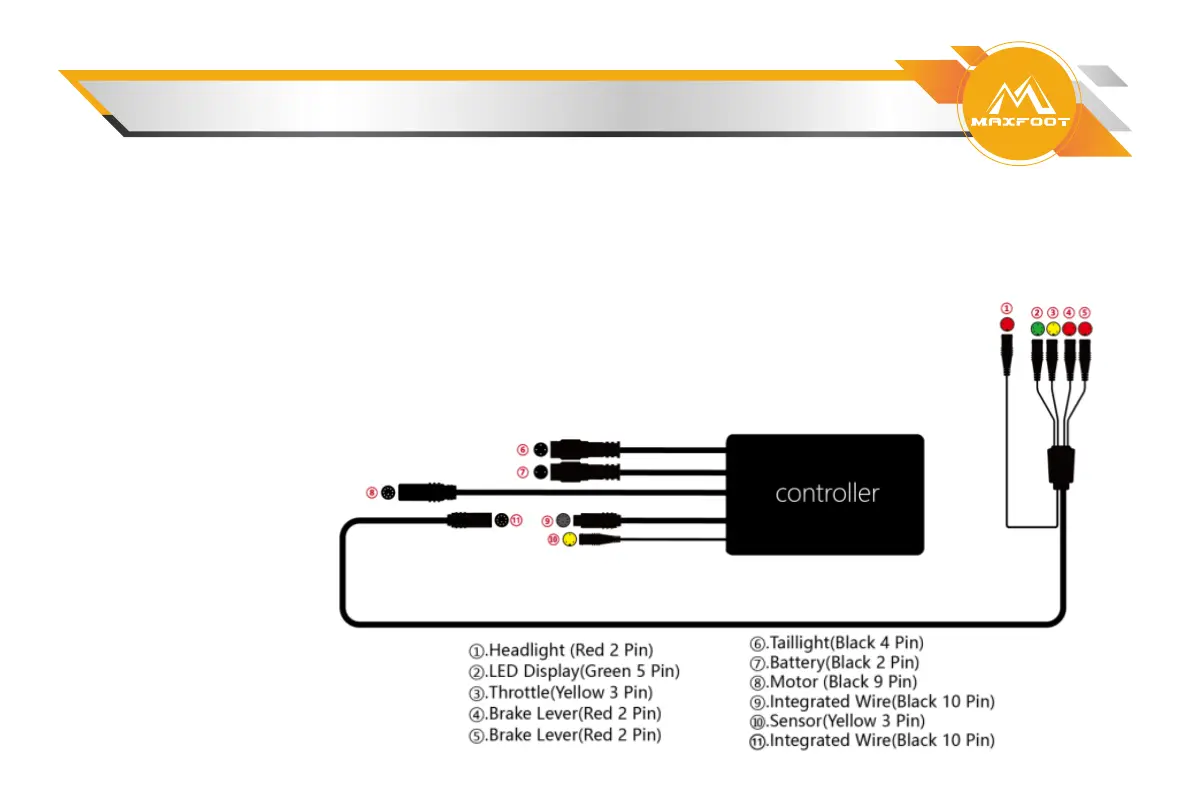

If your MaxFoot bike is not working, check the Quick Disconnect fittings to make sure they did not
come loose or unplugged. There are 5 total colored Quick Disconnect fittings to check:
1.Throttle – Yellow (3 PIN)
2.Left Brake Lever – Red (2 PIN)
3.Right Brake Lever – Red (2 PIN)
4.Controller Box - Black (10 Pin)
5.LCD Display– Green (5 PIN)
