2. Ambient Light Sensor – detects ambient brightness.
3. Power LED – indicates battery level & charging or system status.
4. Vehicle Communication LED – flashes green when the Display Tablet is
communicating/linking with the vehicle’s system.
The power LED displays different colors in response to the following
scenarios:
A. Green
Illuminates green when the Display Tablet is charging and the
battery level is above 90%.
Illuminates green when the Display Tablet is powered on and the
battery level is above 15%.
B. Yellow
Illuminates yellow when the Display Tablet is charging and the
battery level is below 90%.
C. Red
Illuminates red when the Display Tablet is powered on and the
battery level is below 15%.

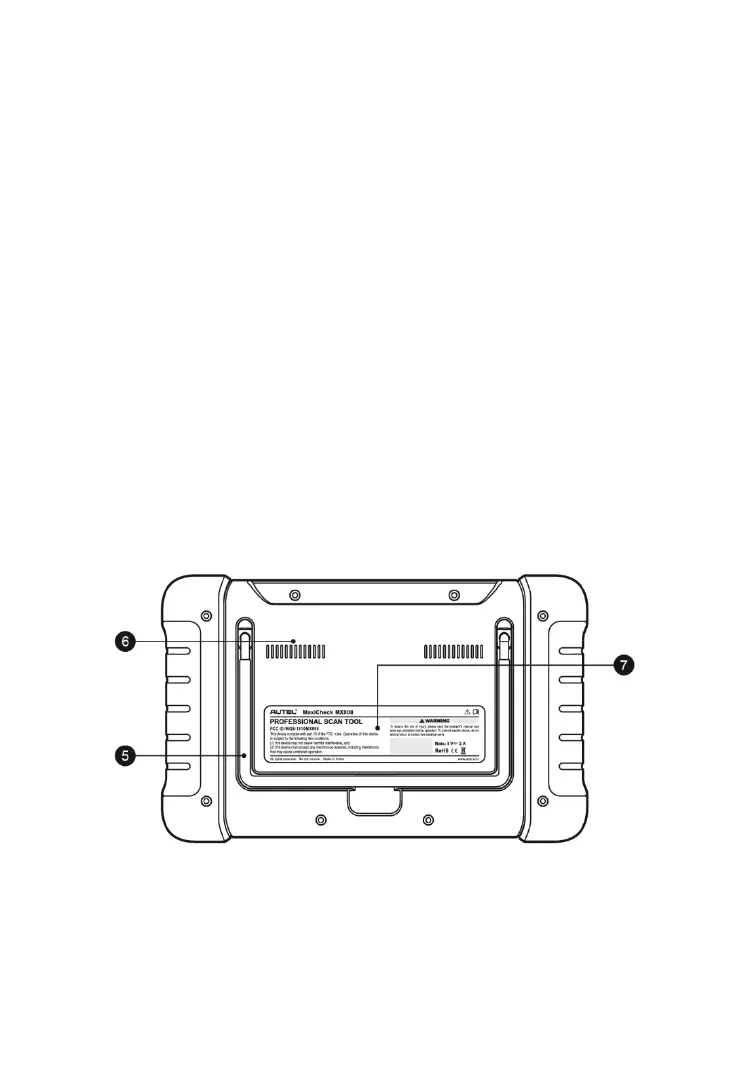

Figure 2-0-2 MaxiCheck MX808 Display Tablet Back View
5. Collapsible Stand – extends from the back to allow hands-free viewing
of the Display Tablet.
6. Heat Sink
