Evaluates: MAX86140 and MAX86141
MAX86140/MAX86141
Evaluation System

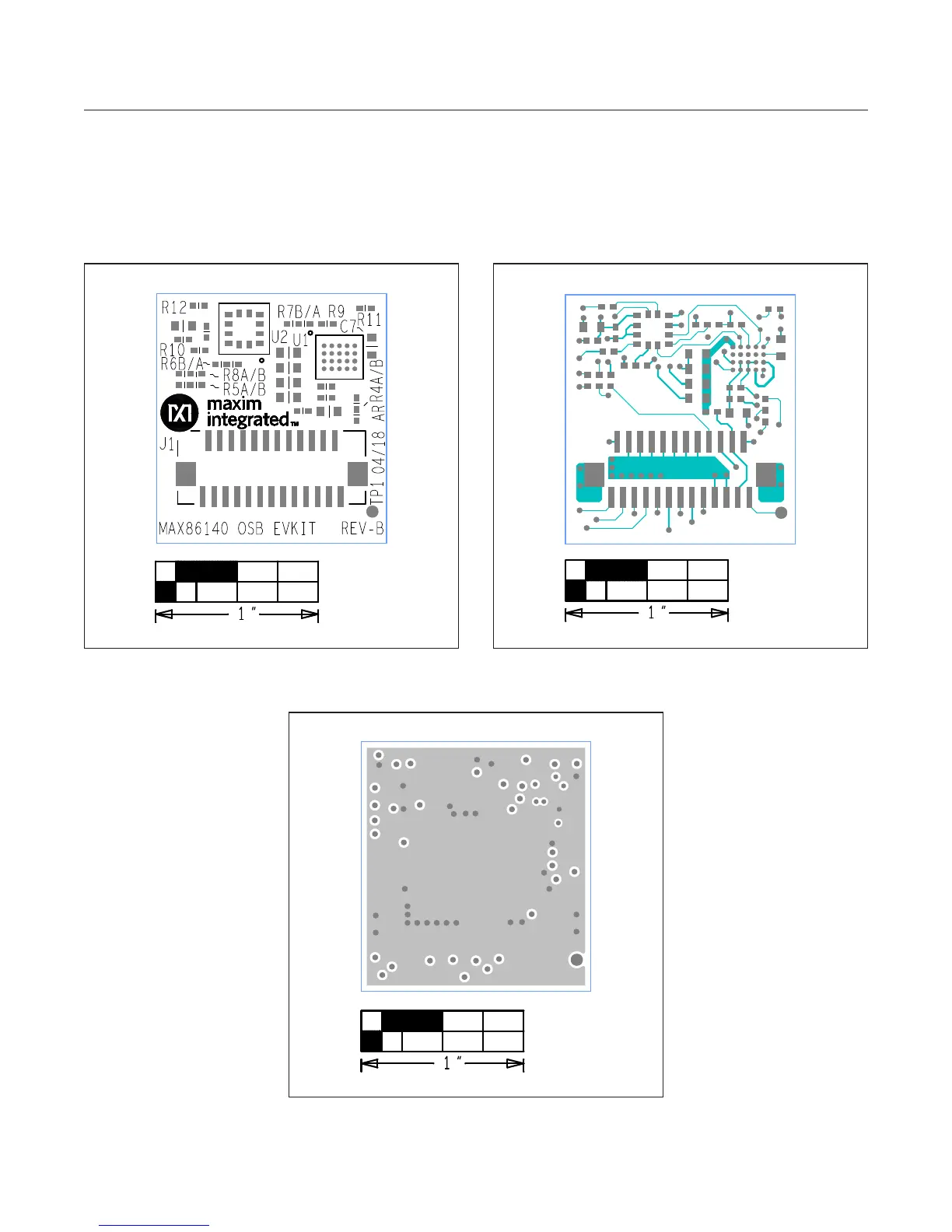

MAX86140OSBEK#—SILK_TOP MAX86140OSBEK#—Top
MAX86140OSBEK#—L02_GND
MAX86140/MAX86141 EV Kit PCB Layout Diagrams (continued)
MAX86140_OSB_EVKIT
