8.4 Spool valve

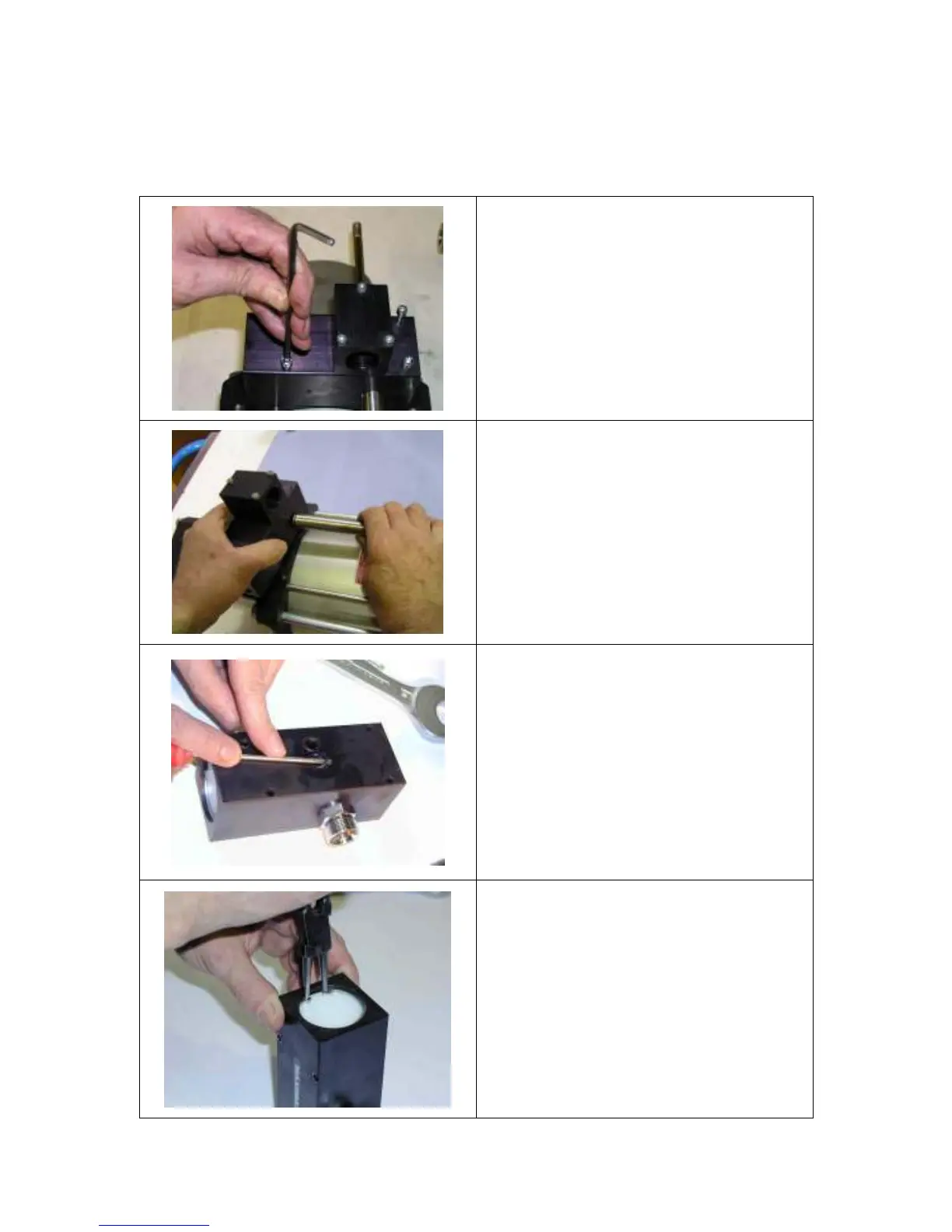

8.4.1 Dismantling
Loosen the socket head screws in the spool
valve housing.
The air pipes are only loosely pushed in and
can smoothly be withdrawn from the spool
valve housing and the intermediate cover.
Remove the O rings that seal the top cover.
Dismantle the locking ring at the spool valve
housing with suitable locking ring pliers. (The
ring is located opposite the compressed air
inlet).
