SPECIFICATIONS
1
2
model no. 055-6766-2 | contact us 1-888-670-6682
4

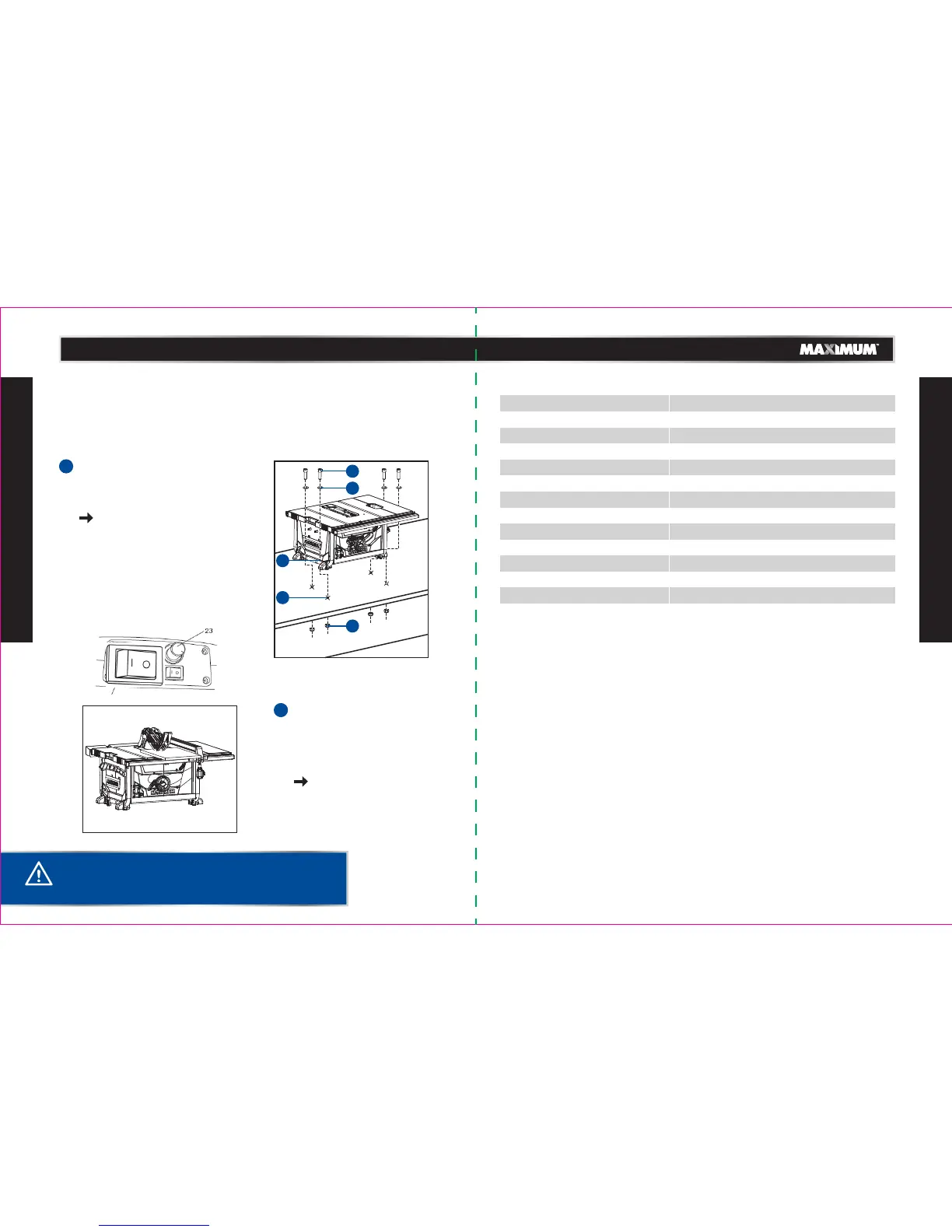

QUICK START GUIDE
• Drill four 3/8" (10 mm) diameter
holes (2) through workbench.
• Place table saw on workbench
aligning holes in tube frame with
holes drilled in workbench.
see page 22.
• Adjust the blade so that it is
approximately 1/8" (3.2 mm)
higher than the workpiece.
• Hold the workpiece flat on the
table and against the fence. Keep
the workpiece approximately 1"
(2.5 cm) away from the blade.
see page 41.
This portable table saw is designed to cut wood and wood composition products only.
The tool can be used for straight-line cutting operations such as crosscutting, ripping,
mitring 0-45° mitre angle, bevel crosscutting 0-45° blade bevel and 90° mitre angle,
0-45° blade bevel and 0-45° mitre angle, cabinet making and woodworking.
CAUTION!
• Read and understand the following instructions to get the
best use of this portable table saw.
Motor
Motor speed
Blade
Sliding extension table size
Outfeed support size
Main table size
Depth of cut at 90°
Depth of cut at 45°
Rip capacity
Bevel range
Mitre range
Table height
Weight
120 V, 60 Hz, 15 A
3100 RPM (no load)
10" (25.4 cm) 40-tooth carbide-tipped
5 63/64 x 21 1/16" (15.2 x 53.5 cm)
24 x 2 1/2" (61 x 6.5 cm)
24 x 21 1/16" (61 x 53.5 cm)
3 1/8" (7.9 cm)
2 5/32" (5.5 cm)
8" (20.3 cm) left, 24 1/2" (62.2 cm) right
0-45°
0-60° (left and right)
14 3/16" (36 cm)
61 lb (27.6 kg)
SPECIFICATIONS
To Next Page
