maxon motor EC Series User Manual

maxon EC motor
EC-i30 IE Document ID:: rel8710
9
Operating Manual Edition: March 2019
© 2019 maxon motor. Subject to change without prior notice.

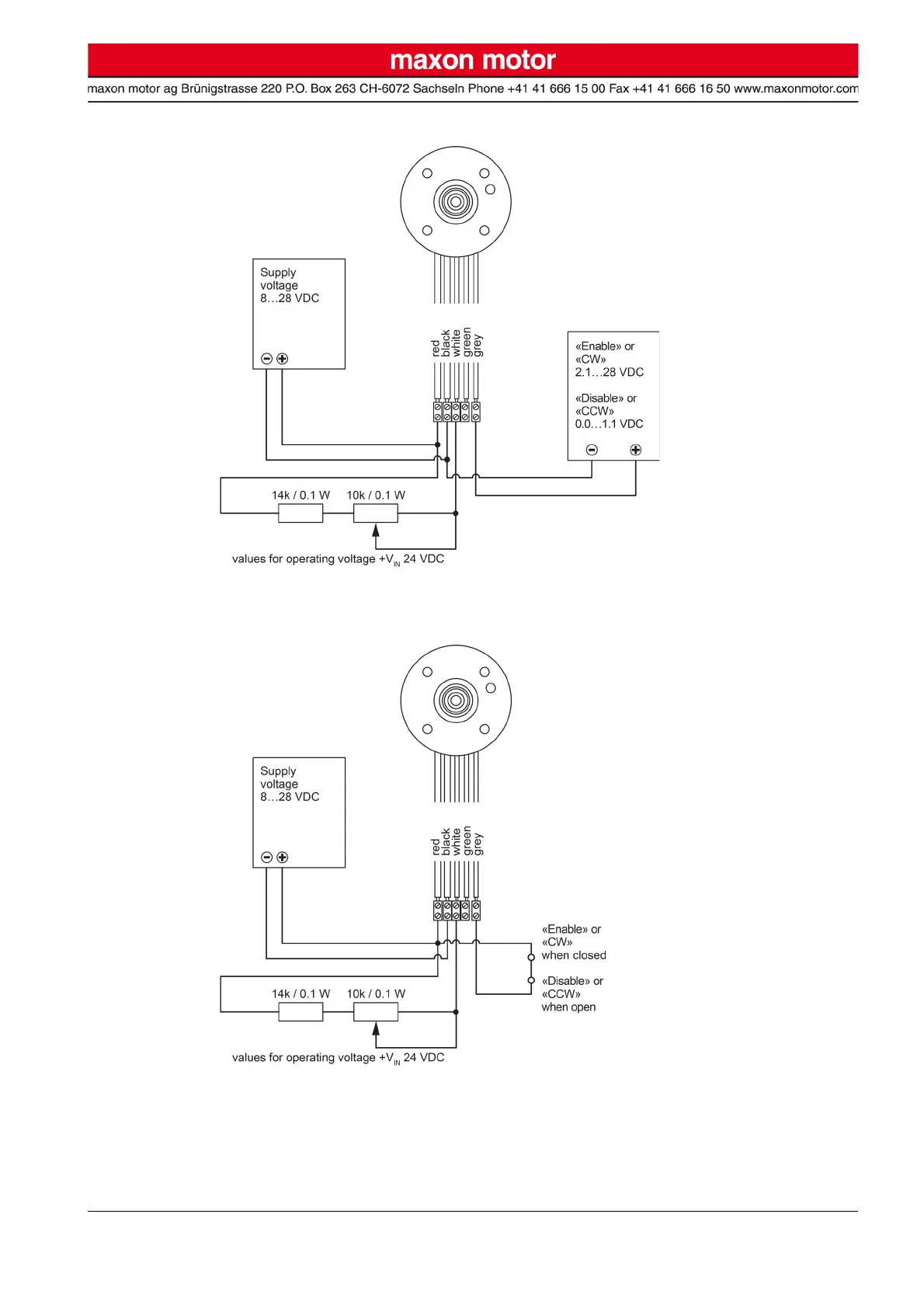

Figure 5 Set point «Set value speed» via external potentiometer and (depending on version)
activation «Enable» or direction preselection «Direction» from external power supply
Figure 6 Set point «Set value speed» via external potentiometer and (depending on version)
activation «Enable» or direction preselection «Direction» with potential-free contact

maxon motor EC Series Specifications

General

Series	EC
Motor Type	Brushless DC
Voltage	12V, 24V, 48V
Nominal Speed	Varies by model (e.g., 3000 - 10000 rpm)
Nominal Torque	Varies by model (e.g., mNm range)
Peak Torque	Varies by model (typically higher than nominal torque)
Efficiency	Up to 90%
Weight	Varies by model
Protection Class	IP54
