maxon motor EC Series - Basic Electrical Wiring; Speed & Enable;Direction Control Wiring; Speed Control with Potential-Free Contact

maxon EC motor
8 Document ID:: rel8710 EC-i30 IE
Edition: March 2019 Operating Manual
© 2019 maxon motor. Subject to change without prior notice.
2.2 Minimal Wiring

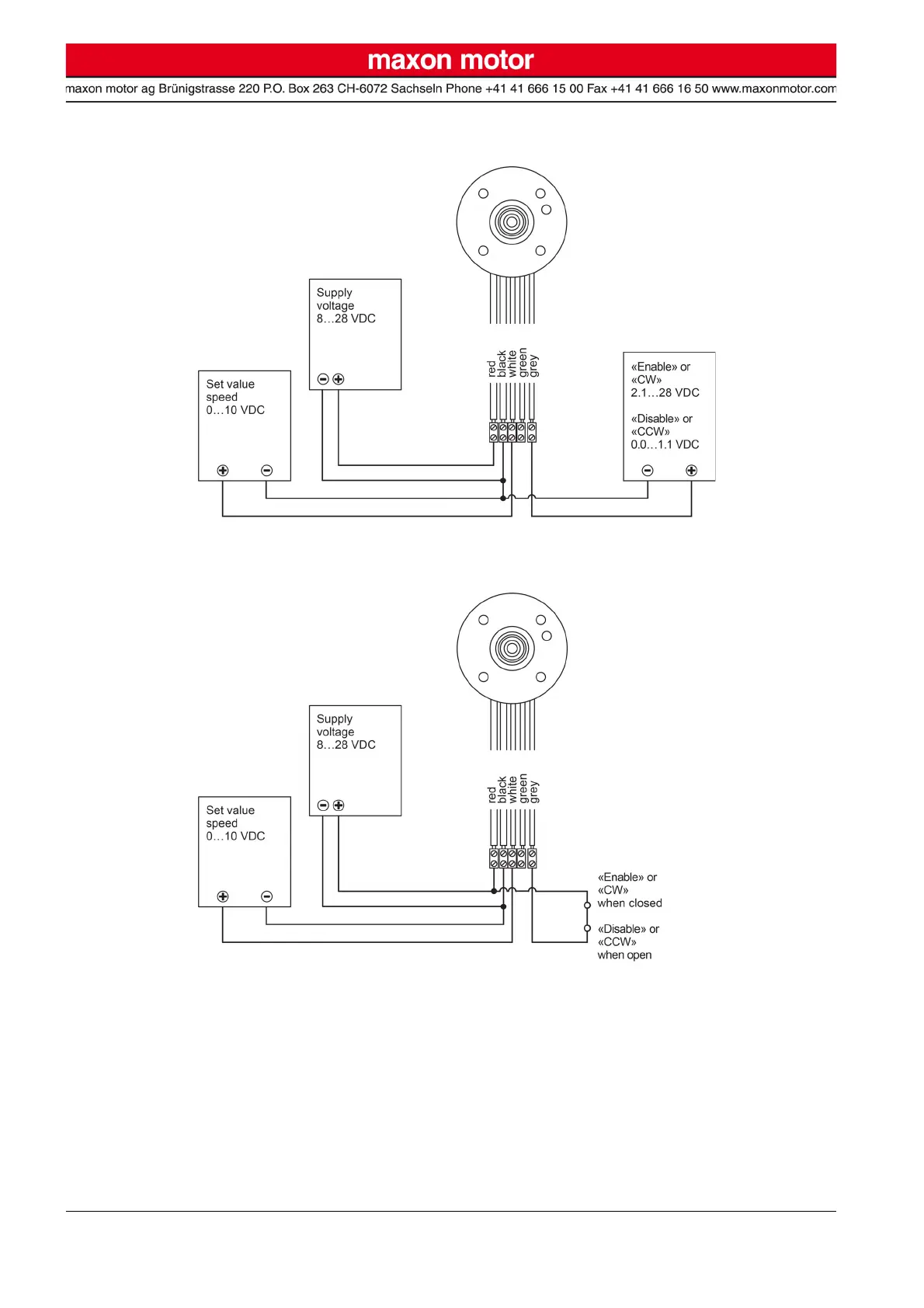

Figure 3 Set point «Set value speed» and (depending on version) activation «Enable» or direction
preselection «Direction» from external power supply
Figure 4 Set point «Set value speed» from external power supply and (depending on version)
activation «Enable» or direction preselection «Direction» with potential-free contact
