Fig.5
Recommendations: Use of high temperature sealant to seal the installation gap after the heater has been mounted is
recommended.
44
12
56
18
7
ø
ø
25
7
ø
ø
25

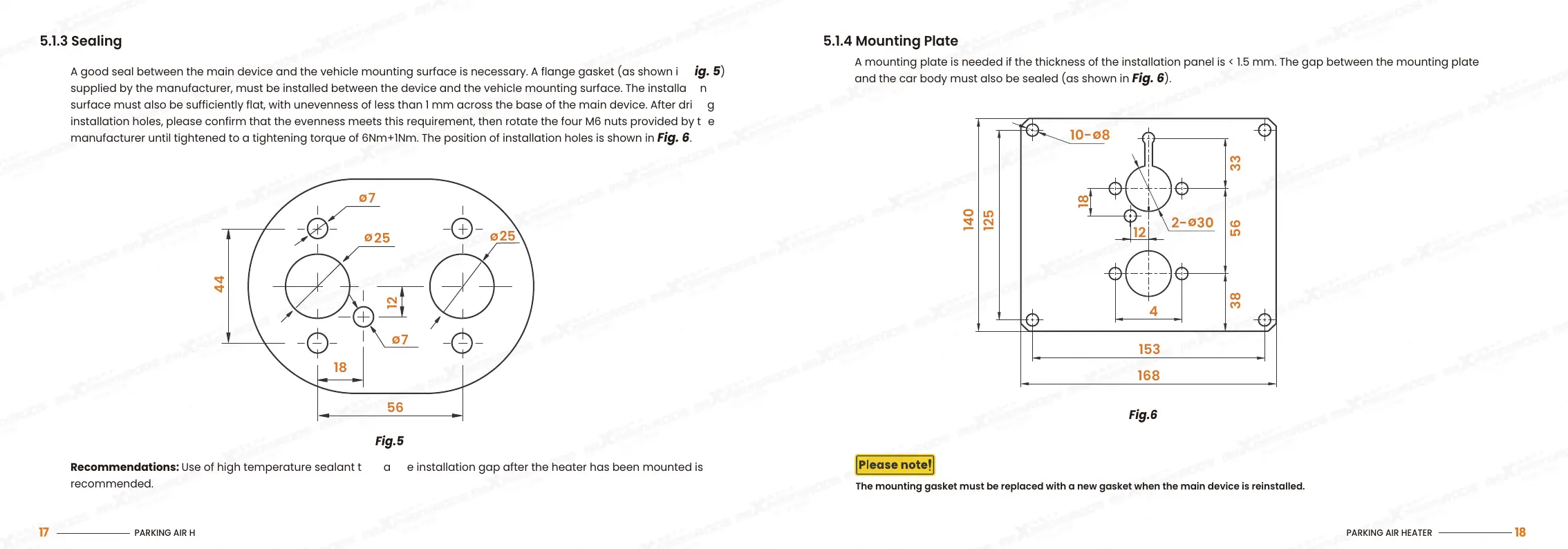

5.1.3 Sealing
A good seal between the main device and the vehicle mounting surface is necessary. A flange gasket (as shown in Fig. 5)
supplied by the manufacturer, must be installed between the device and the vehicle mounting surface. The installation
surface must also be sufficiently flat, with unevenness of less than 1 mm across the base of the main device. After drilling
installation holes, please confirm that the evenness meets this requirement, then rotate the four M6 nuts provided by the
manufacturer until tightened to a tightening torque of 6Nm+1Nm. The position of installation holes is shown in Fig. 6.
5.1.4 Mounting Plate
A mounting plate is needed if the thickness of the installation panel is < 1.5 mm. The gap between the mounting plate
and the car body must also be sealed (as shown in Fig. 6).
Fig.6
10- 8
ø
140
125
18
335638
12
44
153
168
2- 30
ø
The mounting gasket must be replaced with a new gasket when the main device is reinstalled.
PARKING AIR HEATER
17
PARKING AIR HEATER
18
