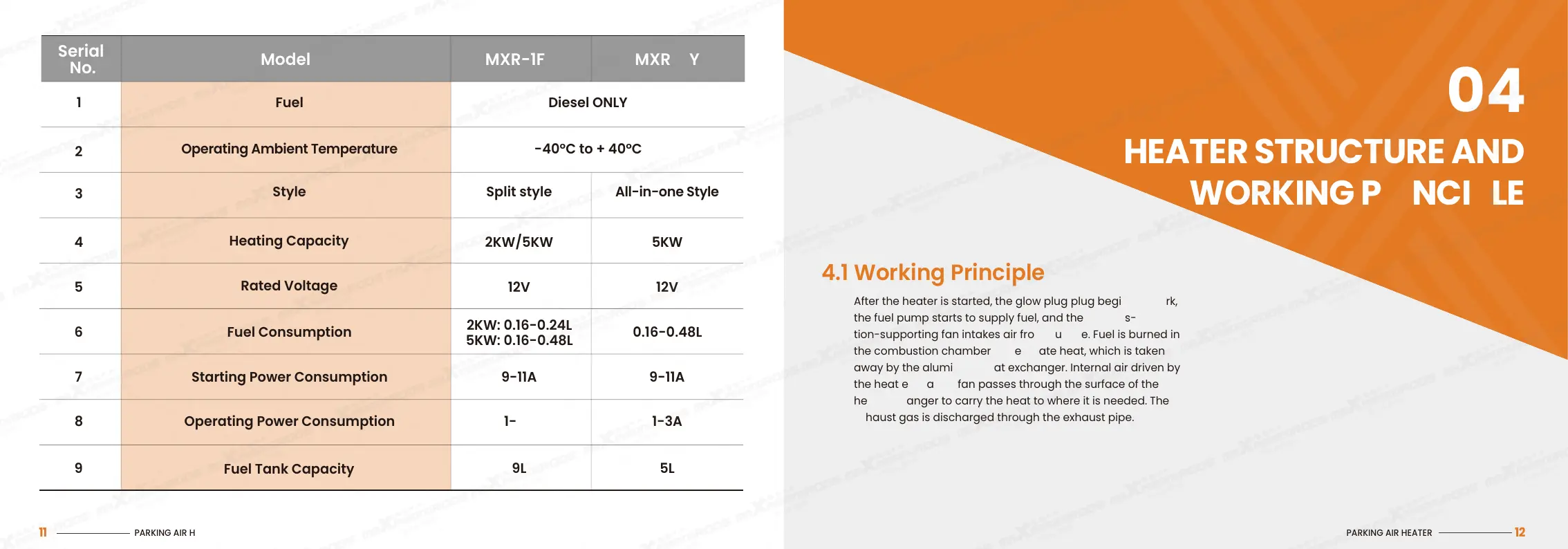

Serial
No.
Model MXR-1F MXR-2Y
Fuel
Diesel ONLY1
Style
Split style
Operating Ambient Temperature
-40°C to + 40°C
2
3
Heating Capacity
2KW/5KW
4
Rated Voltage
12V
5
Fuel Consumption
2KW: 0.16-0.24L
5KW: 0.16-0.48L
6
Starting Power Consumption
9-11A
7
Operating Power Consumption
1-3A
8
Fuel Tank Capacity
9L
All-in-one Style
5KW
12V
0.16-0.48L
9-11A
1-3A
5L
9
HEATER STRUCTURE AND
WORKING PRINCIPLE
04
PARKING AIR HEATER
11
4.1 Working Principle
After the heater is started, the glow plug plug begins to work,
the fuel pump starts to supply fuel, and the combus-
tion-supporting fan intakes air from outside. Fuel is burned in
the combustion chamber to generate heat, which is taken
away by the aluminum heat exchanger. Internal air driven by
the heat exchange fan passes through the surface of the
heat exchanger to carry the heat to where it is needed. The
exhaust gas is discharged through the exhaust pipe.
