MAXPhotonics MA1-45 - Page 43

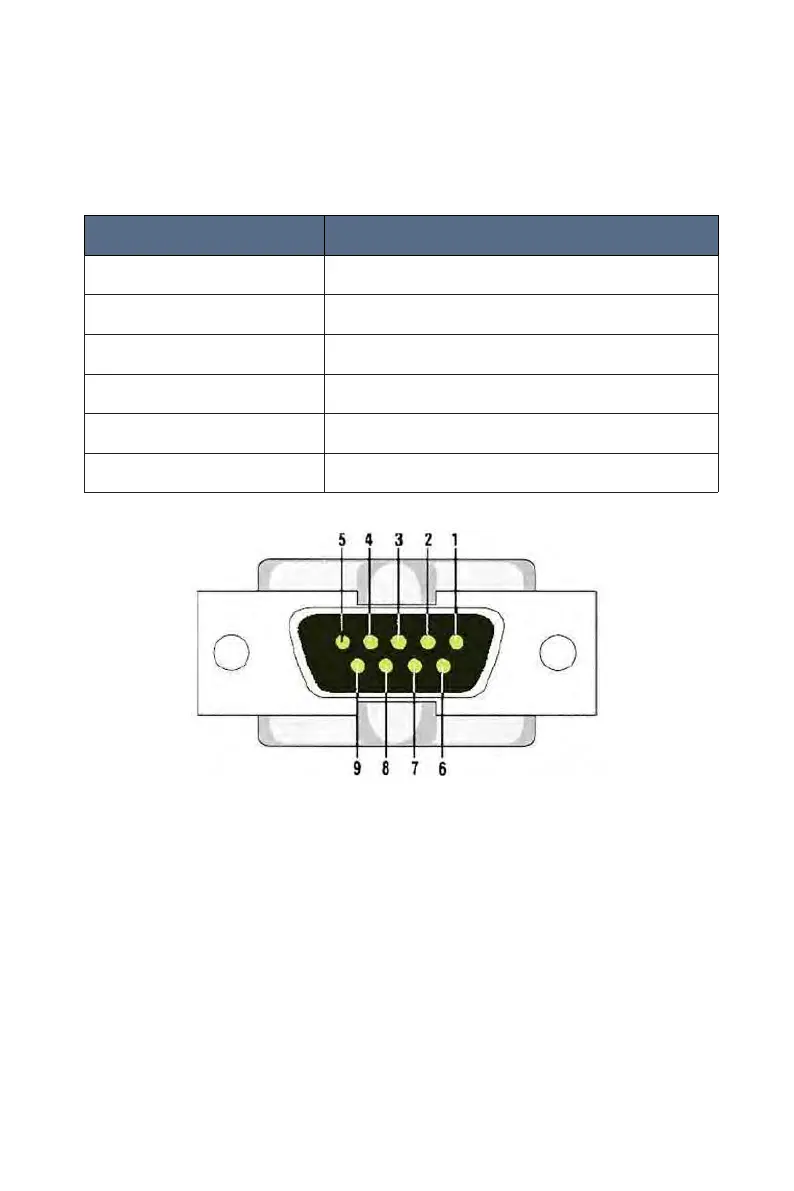

RS232 Interface Description
Pin# Describtion
1 N/A
2 RxD Serial data input
3 TxD Serial data output
4 N/A
5 GND
6~9 N/A
34
The laser welding machine's external control port utilizes an RS232 interface (DB9)
and an EX-CTRL interface (DB25),with the following interface descriptions:
