25
Chapter 5 Operation Guide
CAUTION：
◎ Apply at least 7mA current when input signal.
Digital Signal
Digital Ground
Laser interior circuit
Interior optocoupler
R
510

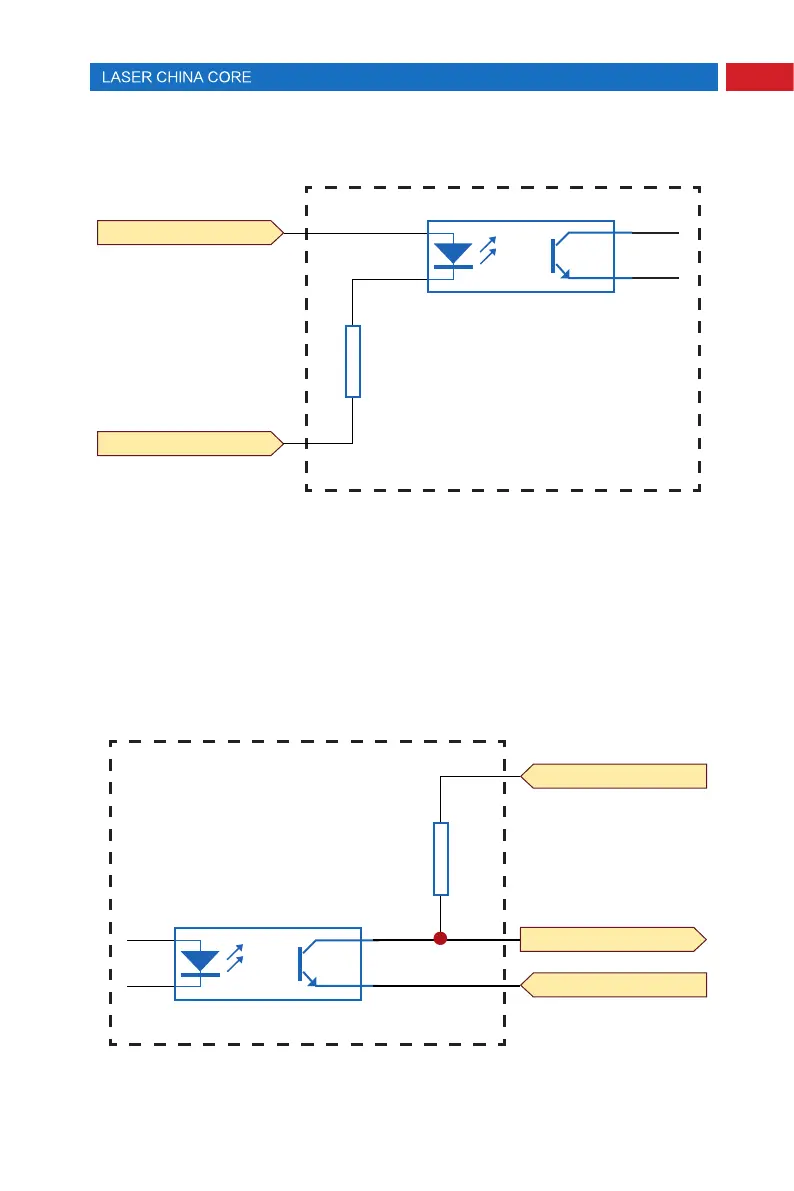

Sketched circuit diagram of output interface：
External power input
Laser Output Signal
Digital Signal
Laser interior circuit
Interior optocoupler
10K
