Chapter 6 Operation Guide
4-Fiber Connector Inspection and Cleaning Guide
1.Tools
For cleaning a fiber connector you need the following materials:
（
1
）
Powder-free rubber gloves or ngerstall
（
2
）
Lint free optical cleaning wipes and/or swabs
（
3
）
Ahydrous ethanol
（
Optical level, pure >99.5%
）
（
4
）
Compressed air (oil free, water free)
（
5
）
Microscope
（
6
）
Light source
CAUTION :
◎
It is imperative that the protective lens are checked for dirt, dust, or damage
before you use the fiber connector. It will lead to heavy damage if the laser
equipped with dirty or damaged fiber connector.
◎
The use of a dirty fiber connector can result in laser damage, which is not
covered by the Maxphotonics' warranty.
◎
The laser will not be covered by the Maxphotonics' warranty if the buyer

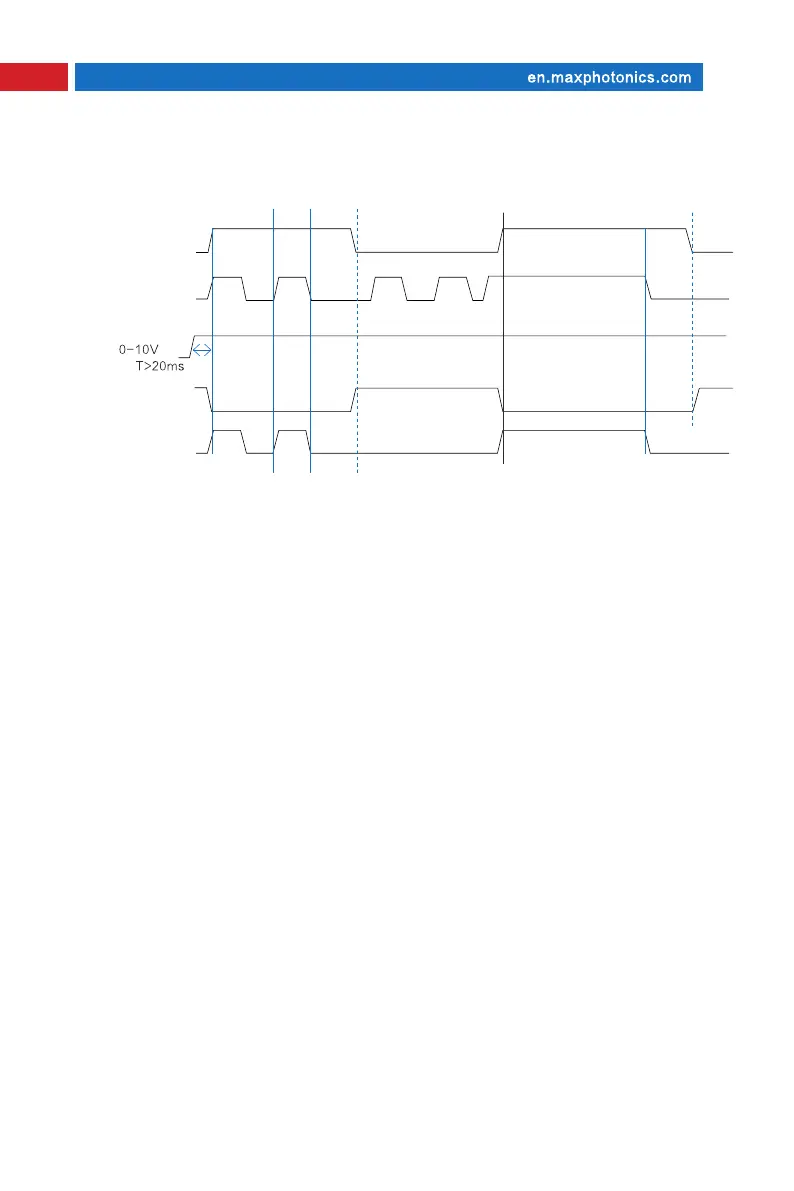

External Control Signal Timing
Emission Enable
Input
Laser Modulation
Input
Power Input
Red Light Signal
Output
Laser Output
To Next Page
