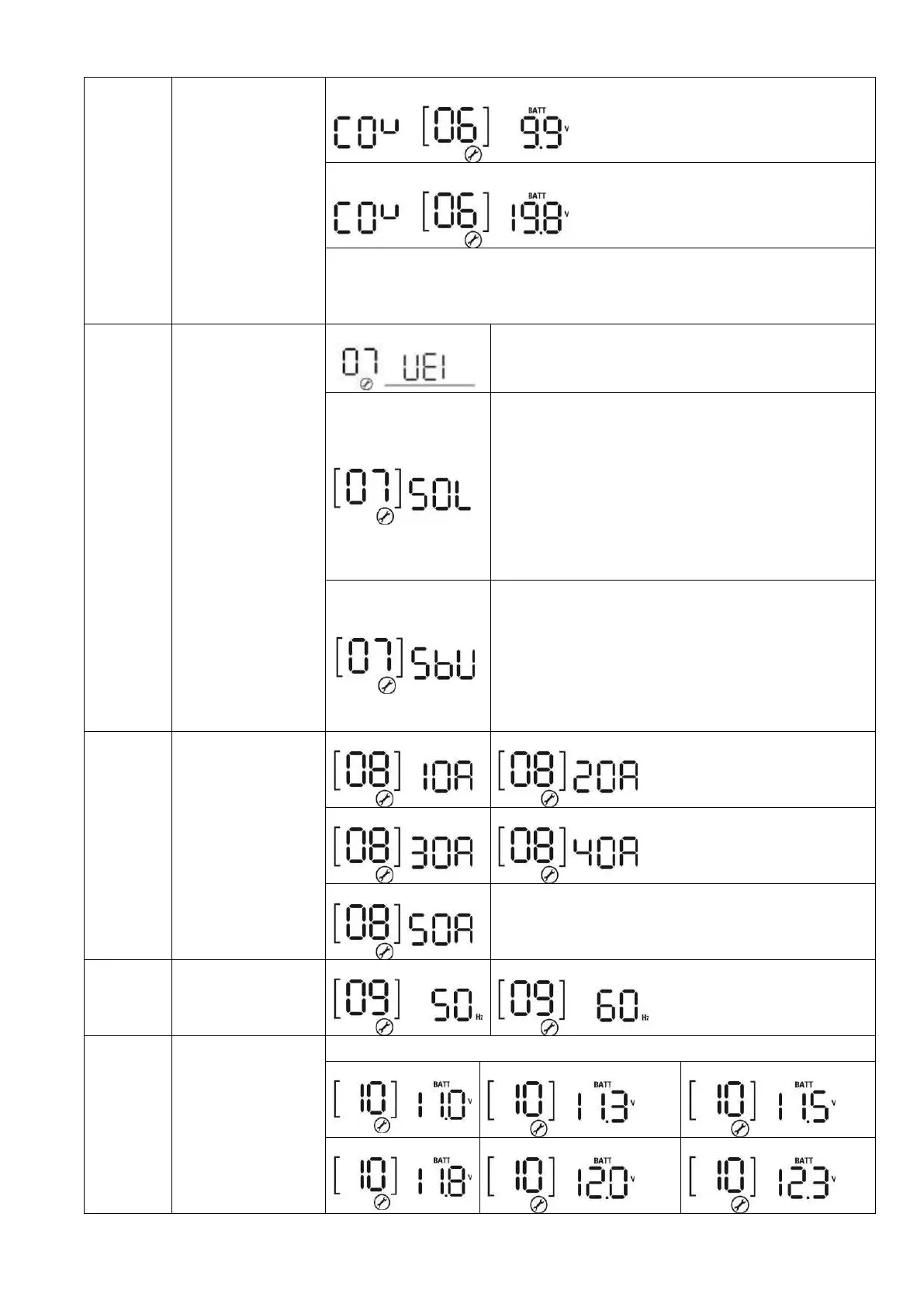

MaxPower Sunbridge 2000 - Page 11

9
06
Low DC cut-off
voltage
SUNBRIDGE 1000 default setting: 9.9V
SUNBRIDGE 2000 default setting: 19.8V
Setting range is from 9.9V to 12.0V for SUNBRIDGE 1000 model and increment
of each click is 0.1V Setting range is from 19.8V to 24.0V for SUNBRIDGE 2000
model and increment of each click is 0.2V. Low DC cut-off voltage will be fixed
to setting value no matter what percentage of load is connected.
07
Output source
priority:
To configure load
power source
priority
Utility first
Utility will provide power to the loads as first priority.
Solar and battery energy will provide power to the
loads only when utility power is not available.
Solar first (default)
Solar energy provides power to the loads as first
priority.
If solar energy is not sufficient to power all connected
loads, battery energy will supply power the loads at
the same time.
Utility provides power to the loads only when any one
condition happens:
- Solar energy is not available
- Battery voltage drops to low-level warning voltage or
the setting point in program 10.
SBU priority
Solar energy provides power to the loads as first
priority.
If solar energy is not sufficient to power all connected
loads, battery energy will supply power to the loads at
the same time.
Utility provides power to the loads only when battery
voltage drops to either low-level warning voltage or
the setting point in program 10.
08
Maximum charging
current: To
configure total
charging current for
solar and utility
chargers.
(Max. charging
current = utility
charging current +
solar charging
current)
10A
20A
30A
40A
50A (default)
09
Output frequency
50Hz (default)
60Hz
10
Setting voltage
point back to utility
source when
selecting “SBU
priority” or “Solar
first” in program 07.
Available options in SUNBRIDGE 1000model:
11.0V
11.3V
11.5V (default)
11.8V
12.0V
12.3V
