Maxtor D540X-4K - 3.6 COMBINATION CONNECTOR (J1)

Installation
Maxtor D540X-4K 20.4/40.0/60.0/80.0 GB AT 3-11
!! )./
Clearance from the drive to any other surface (except mounting surfaces) must be a
minimum of 1.25 mm (0.05 inches).
!! $.-)-*.
The Maxtor D540X-4K 20.4/40.0/60.0/80.0 GB AT hard disk drives operate
without a cooling fan, provided the ambient air temperature does not exceed 131°F
(55°C) at any point along the drive form factor envelope.
! 465

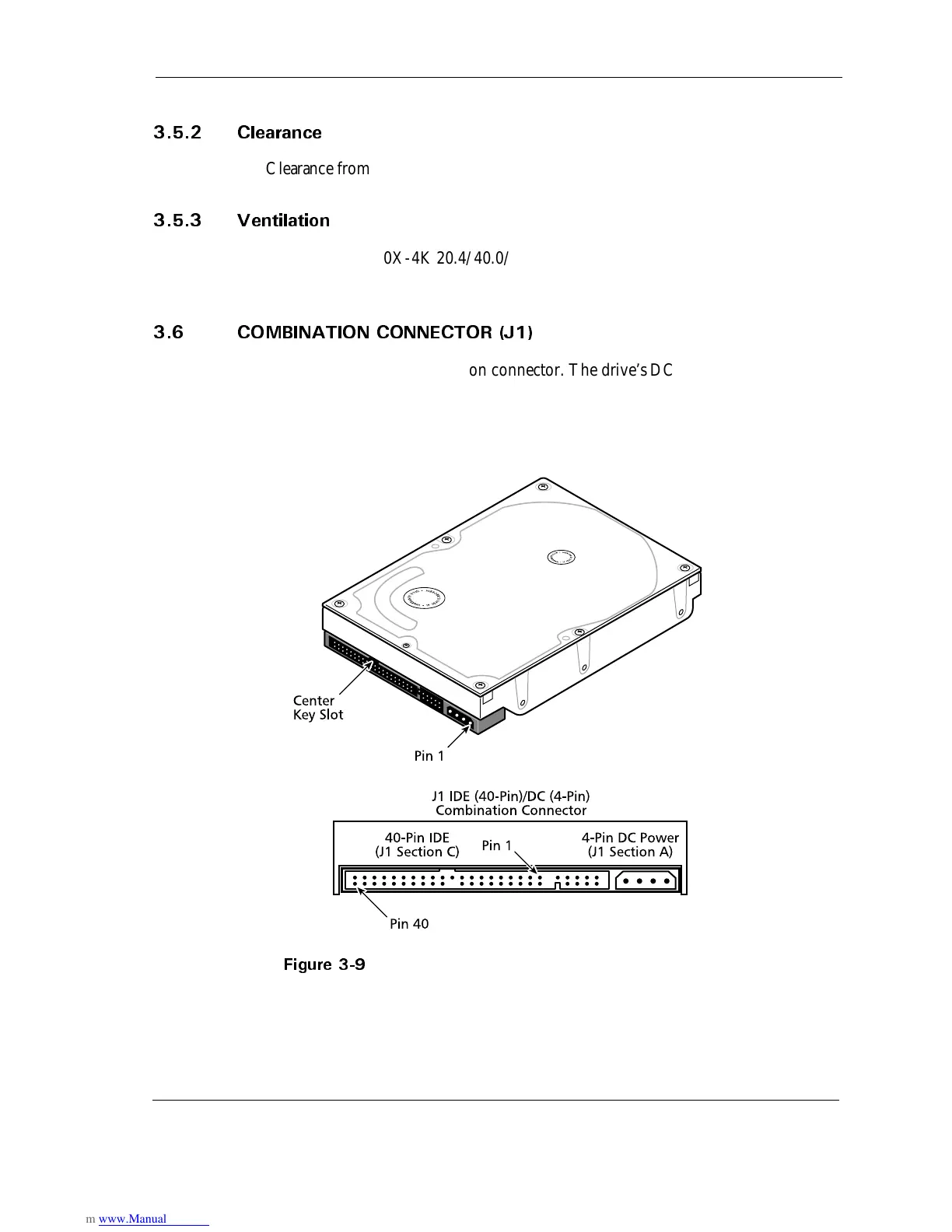

J1 is a three-in-one combination connector. The drive’s DC power can be applied
to section A. The ATA bus interface (40-pin) uses section C. The connector is
mounted on the back edge of the printed-circuit board (PCB), as shown in Figure
3-9.
1 J1 DC Power and ATA Bus Combination Connector
