Maxum 2400SR - Bimini Top Installation

Chapter 8: Deck Equipment
29

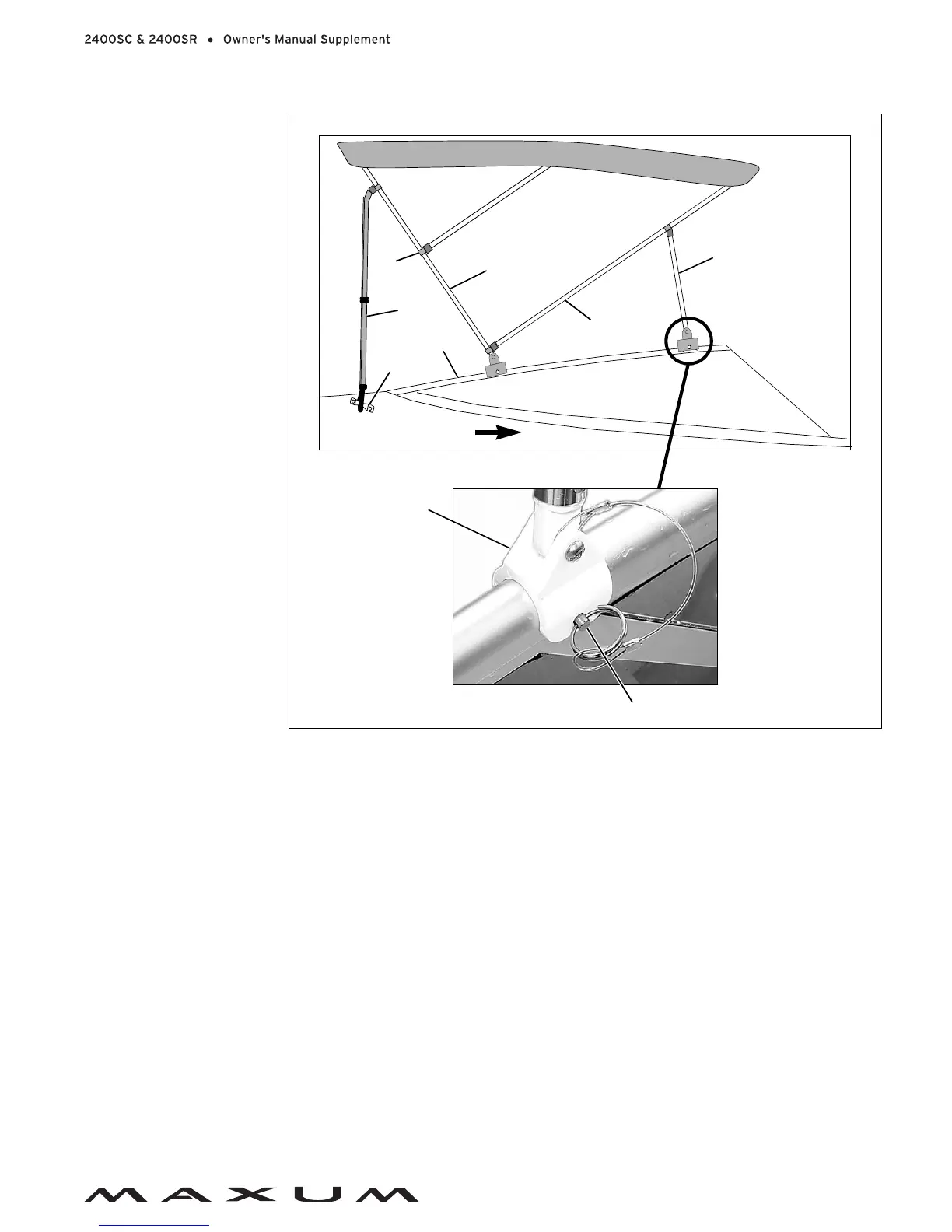

Installing the Bimini Top (If Equipped)
1. Slide the swivel ends
(A) of the main bow
(B) over the aft pre-
drilled holes in the
windshield frames (C)
and insert the pins (D).
2. Pull the secondary bow
(E) forward and slide
the swivel ends of the
forward legs (F) over
the forward pre-drilled
holes in the windshield
frames and insert
the pins.
3. Hook the hold down
straps (G) to the deck
loops (H).
• The jaw slides (I) should
not need to be adjusted.
• However, if you think the
jaw slides need to be
adjusted, obtain the mea-
surements from your
selling dealer.
FWD
A
B
C
D
E
F
G
H
I
