Chapter 3: Locations
13
Component Locations
12-Volt Accessory Outlet: At the helm on the dash panel.
Battery: Access is through the port transom hatch. Access the
hatch by removing the port transom cushion and lifting the
canvas storage cover.
Battery Switch: Access is through the port transom hatch.
Access the hatch by removing the port transom cushion and
lifting the canvas storage cover.
Bilge pump: In the engine compartment (for system details refer to the Bilge Pump section of Chapter 6: Plumbing).
CO Monitor (2400SC Only): On the ceiling inside
the cabin.
Depth Sounder Transducer: In the engine
compartment bilge.
Engine Circuit Breaker: On the engine (refer to the Engine Owner’s Manual).
Fuel Fill Deck Fitting: On the starboard aft corner of the deck (refer to pages 9 & 10 for location views).

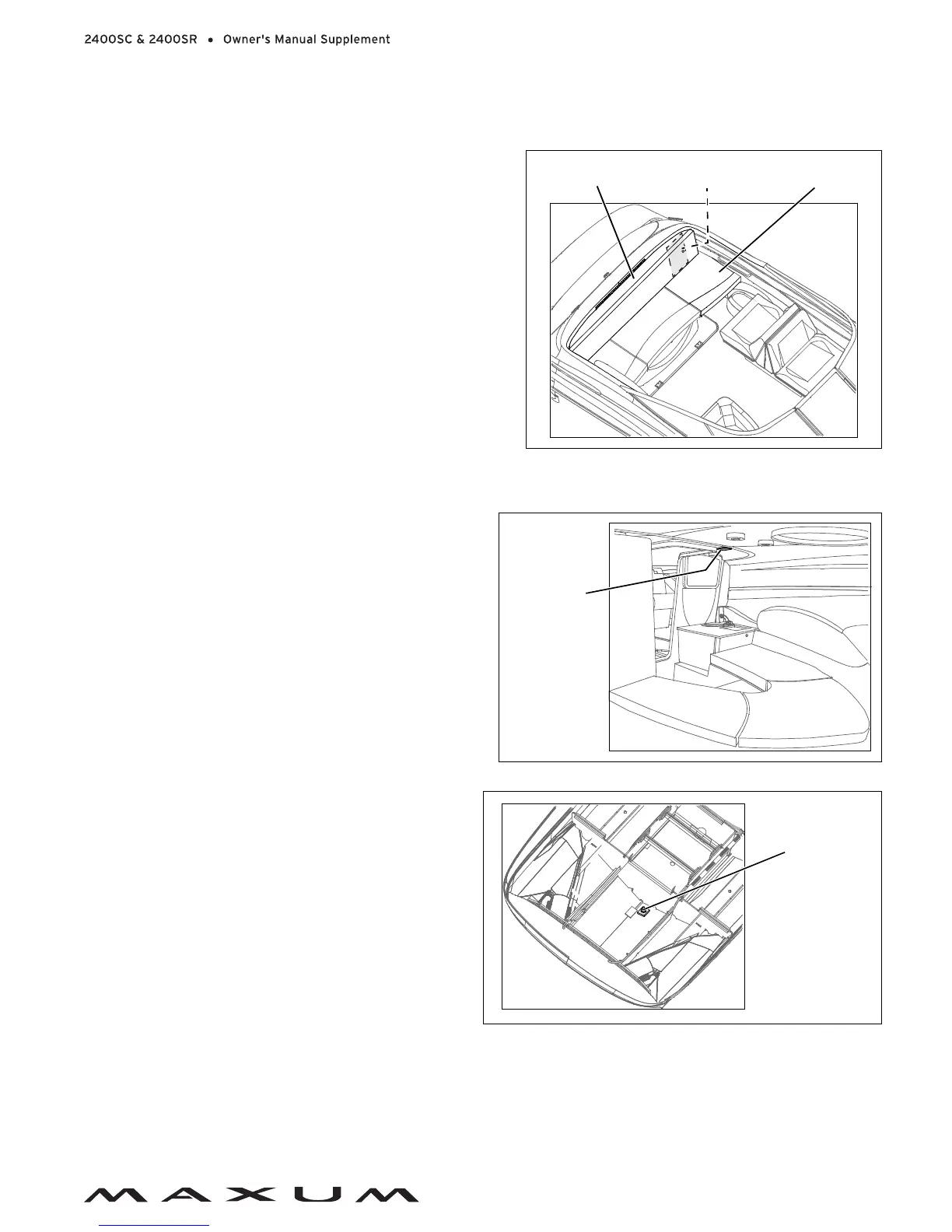

CANVAS
STORAGE COVER
PORT TRANSOM
HATCH
PORT TRANSOM
CUSHION
CO MONITOR
TRANSDUCER
