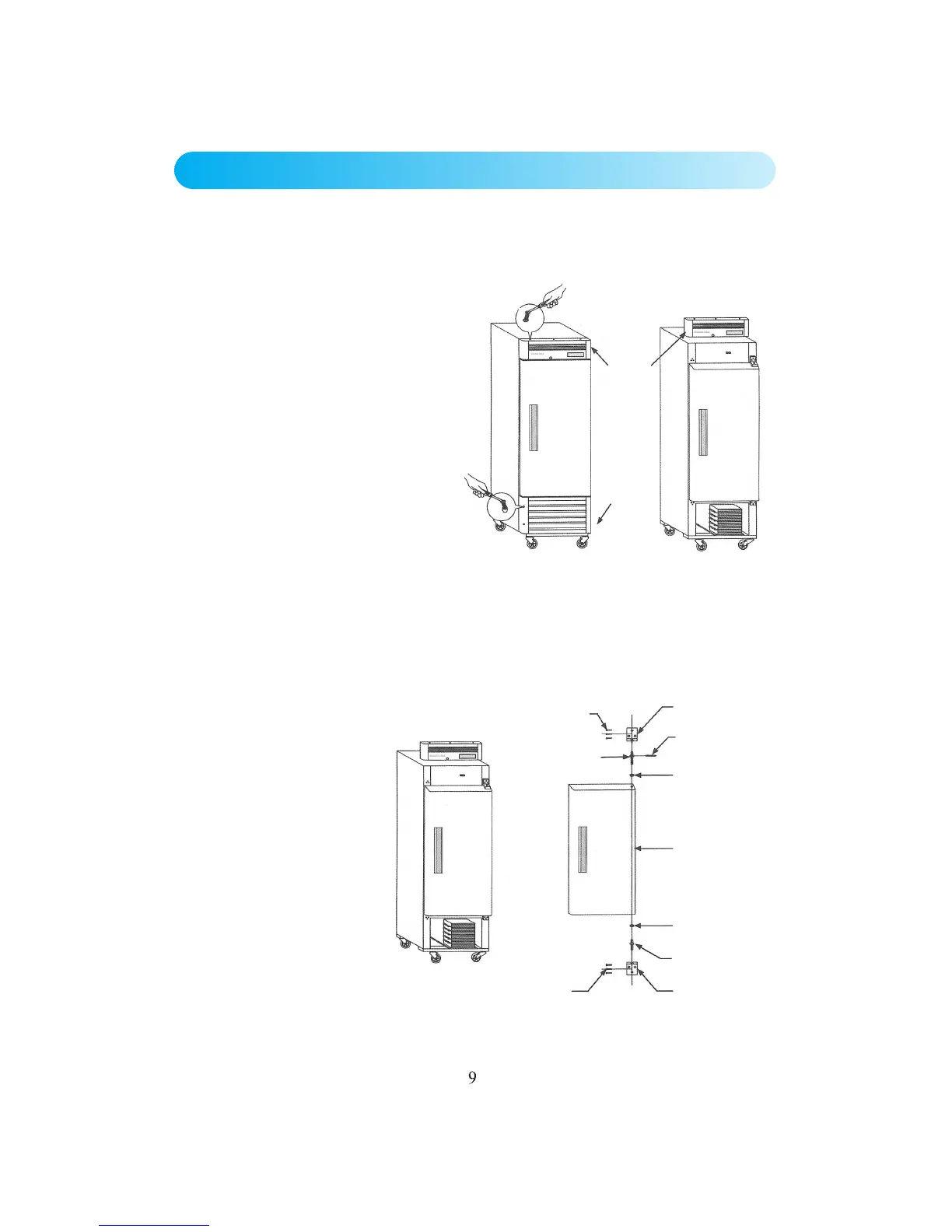

MODEL : MCF-23FD / MCR-23FD
REVERSIBLE-DOOR ASSEMBLY METHOD
2. Taking apart of DOOR-ASSEMBLY
1) Follow steps ῡ ~ Ὺ in order at the PICTURE (B)
# Caution : Door is heavey
hinges are strong
loaded.
Use appropriate
care when
removing door.
1. REMOVAL OF TOP GRILL and GRILL ASSEMBLY
1) Remove the TOP GRILL by
removing securing screws.
Upper or downward located ῡ
in the PICTURE (A)
2) Remove GRILL by
removing securing screws.
connected
Left and right side located ῢ
in the PICTURE (A)
# Caution : Disconnect power
before reversing door, use caution with
cares associated with electronic control.
ῡ
ῢ
TOP GRILL
ῢ M5*27 SCREW
Ῡ M5*27 SCREW
ΰ DOOR-HINGE
UPPER
ῡ DOOR-HINGE
STOP PIN
ῥ DOOR-HINGE
BUSHING
ῧ DOOR-HINGE
BUSHING
ῦ DOOR
ASSEMBLY
ῤ DOOR-HINGE
SHAFT-UPPER
GRILL
ASSEMBLY
PICTURE A
PICTURE B
Ῠ DOOR-HINGE
SHAFT-LOWER
Ὺ DOOR-HINGE
LOWER
To Next Page
