Maxx Ice MIM452 - Water System; Water Supply and Trough Components; Water Pump and Distribution System

7

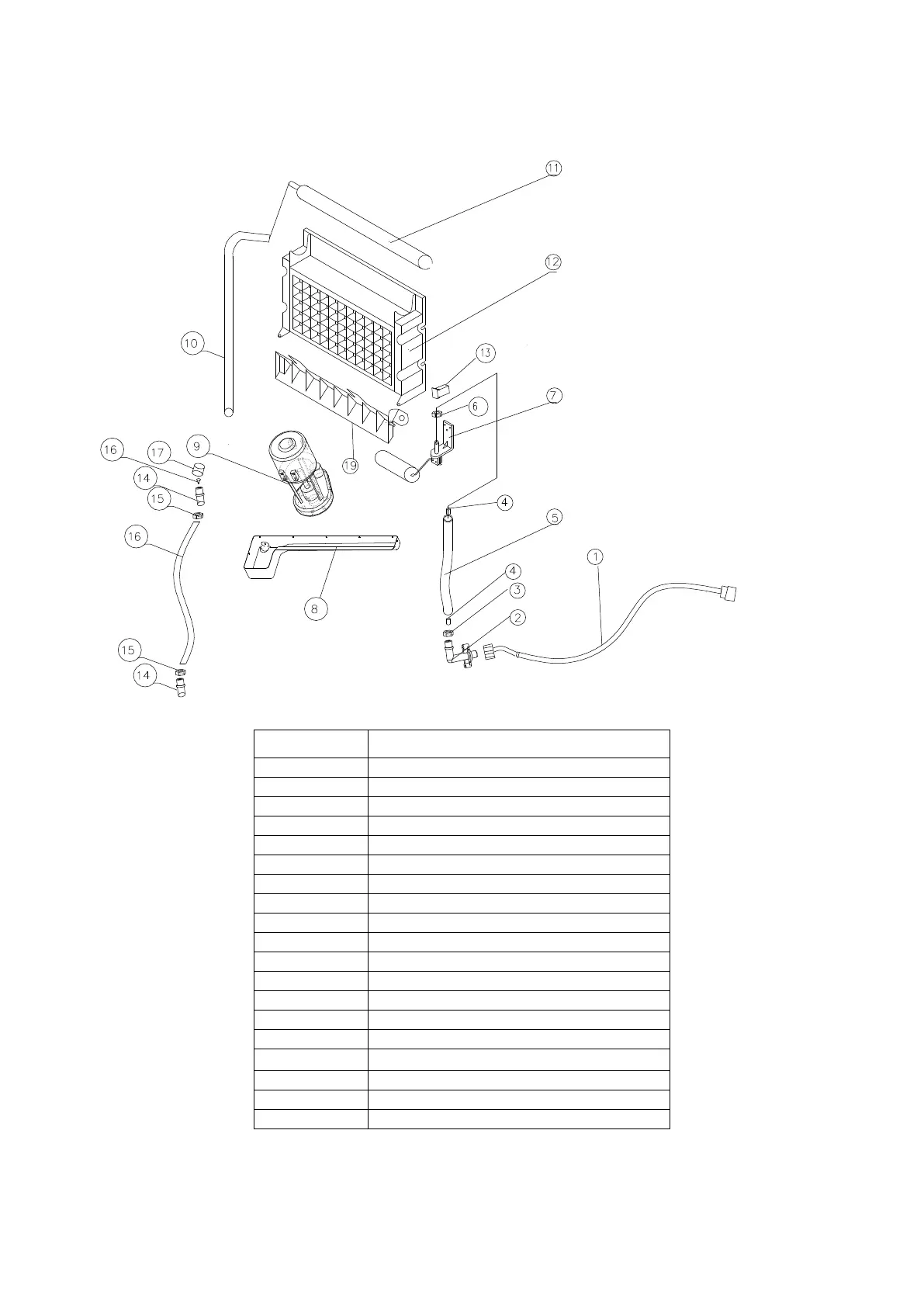

Water System
ITEM NO
DESCRIPTION
1
Water supply pipe
2
Water inlet connector
3
Nut of water inlet tube
4
Supporting tube
5
Water pump inlet tube
6
Nut of water inlet tube
7
Floater valve
8
Water trough
9
Water pump
10
Water pump outlet tube
11
Water distribution tube
12
Evaporator (Ice Mold)
13
Ice full sensor
14
Drain pipe connector
15
Drain pipe hex nut
16
Drain pipe
17
Drain pipe screw
18
Drain pipe stopple
19
Ice slideway
When the water inlet is connected with the main water supply, water will fill the trough through the
