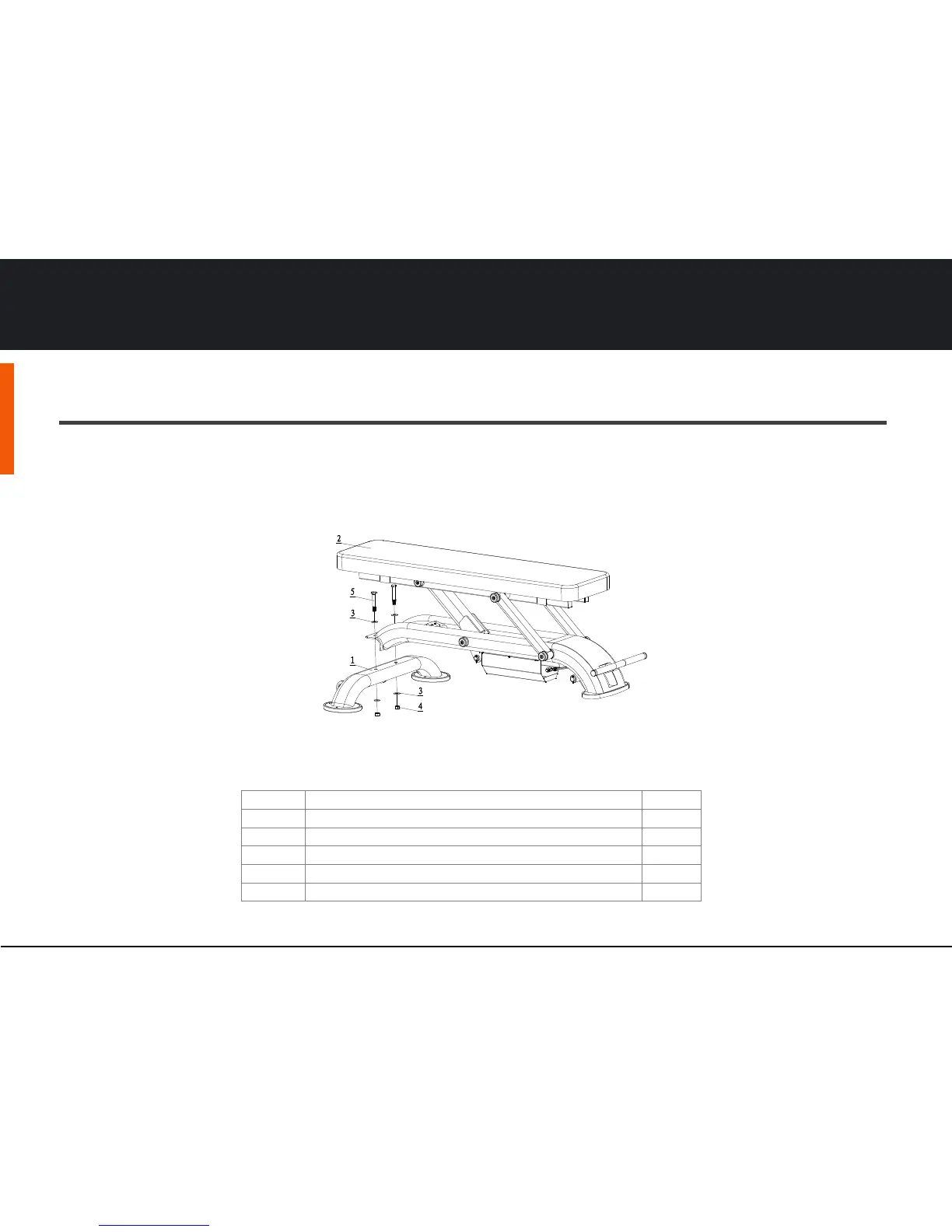

MAXX FLAT BENCH: ATTACH BENCH TO WHEELSET
Assemble Base Frame(1) & Bench(2) using Flat Washer Ф13.5*Ф24*2.5(3), Nut M12(4) and Hex Bolt
M12*75(5).
Part No.
Description
Q’ty
1
Base Frame
1
2
Bench
1
3
Flat Washer Ф13.5*Ф24*2.5
4
4
Nut M12
2
5
Hex Bolt M12*75
2
