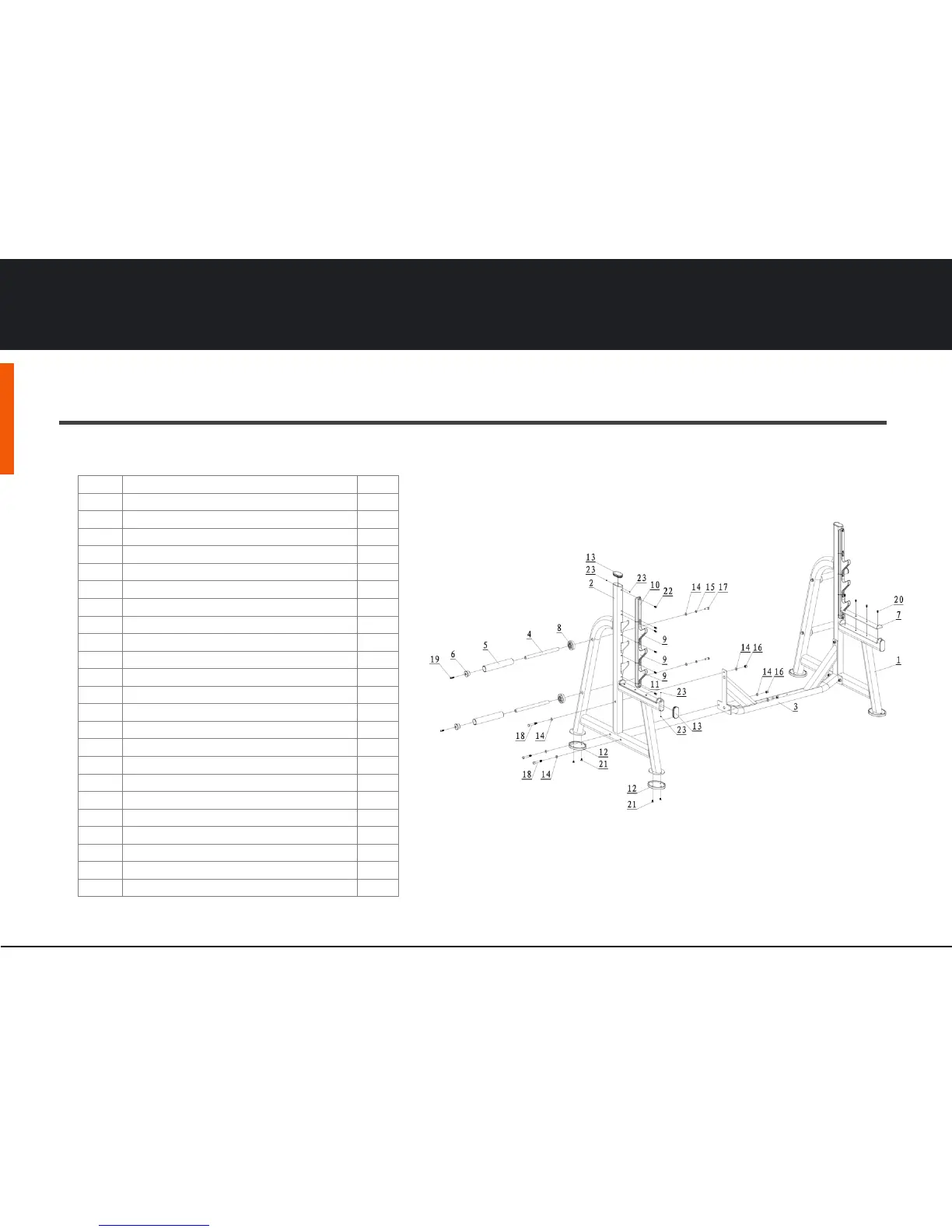

5.2 PARTS LIST AND EXPLODED DRAWING
MAXXBENCH
INSTRUCTIONS
MAINTANENCE
WARRANTY
MAXX BENCH | WILKES-BARRE PA | WWW.MAXXBENCH.COM
MAXX OLYMPIC RACK
Part
No.
Description
Q’ty
1
Left Upright Frame
1
2
Right Upright Frame
1
3
Cross Frame
1
4
Inner Frame for Bumper Plate
4
5
Bar Holder Φ48*2.5*280
4
6
End Cap Φ8.5*Φ47.5*30
4
7
Protect Board 505*47.5*30
2
8
Rubber Bushing Φ75*Φ26*Φ48.5*25
4
9
Cover 183*114*50
6
10
Upper Cover 220*50*34
2
11
Lower Cover 50*34*37
2
12
Rubber Foot 169*126*16
4
13
End Cap 50*100*3
4
14
Flat Washer Φ13.5*Φ24*2.5
16
15
Spring Washer Φ12
4
16
Nut M12
6
17
Hex Bolt M12*30
4
18
Hex Bolt M12*75
6
19
Hex Bolt M8*25
4
20
Hex Bolt M6*15
8
21
Hex Bolt M8*15
8
22
Hex Bolt M8*25
12
23
Screw M6*6
8
page 14
