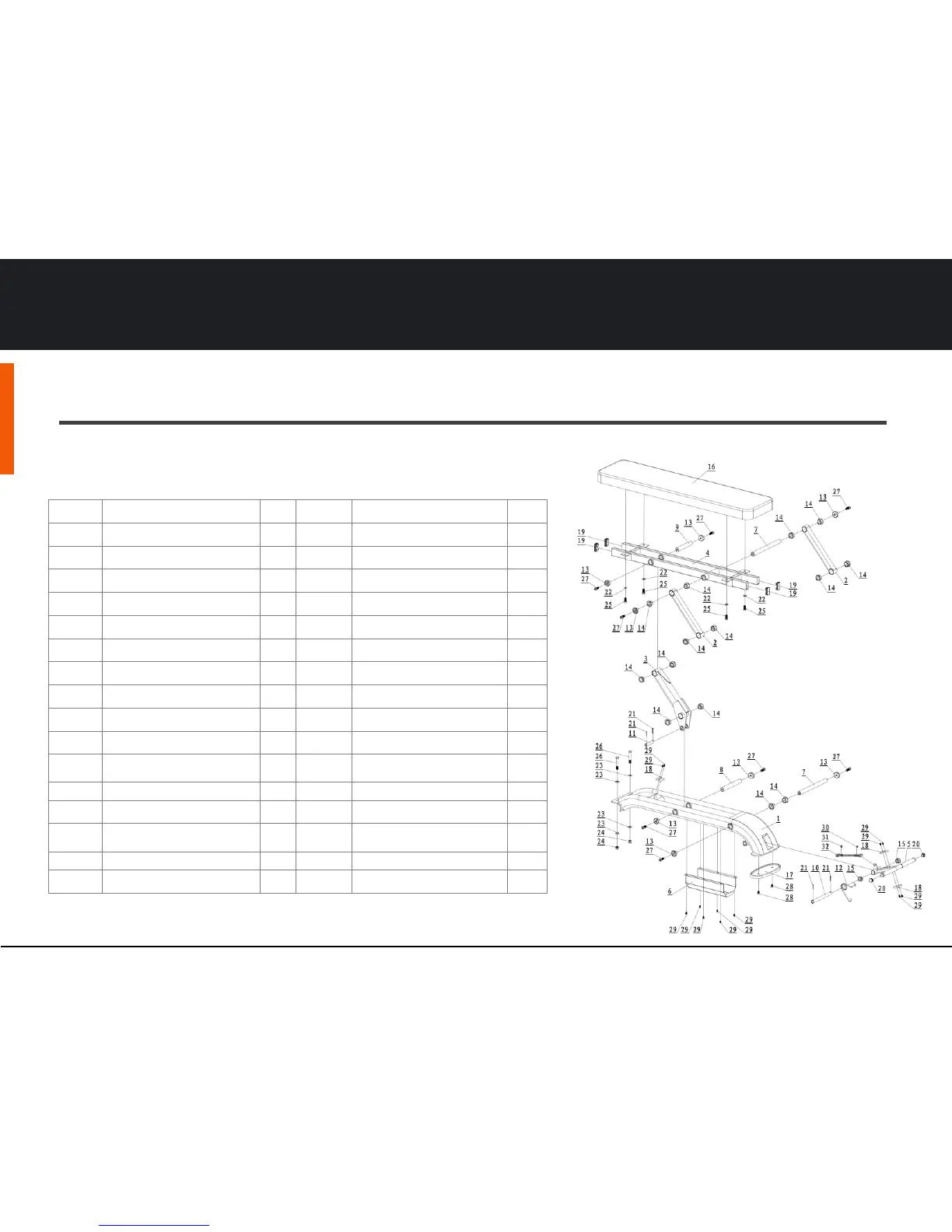

5.1 PARTS LIST AND EXPLODED DRAWING
MAXXBENCH
INSTRUCTIONS
MAINTANENCE
WARRANTY
MAXX BENCH | WILKES-BARRE PA | WWW.MAXXBENCH.COM
MAXX OLYMPIC Bench
Part No.
Description
Q’ty
Part No.
Description
Q’ty
1
Base Frame
1
17
Rubber Foot 270*113*16
1
2
Font Rolling Frame
2
18
Rubber Bushing 45*35*8
2
3
Rear Rolling Frame
1
19
End Cap 25*50*2
4
4
Pad Support Frame
1
20
End Cap Ф25*3
2
5
Adjustable Frame for Foot
1
21
Shaft Ф3.2*25
4
6
Cover for oil Cylinder
1
22
Flat Washer Ф11*Ф20*2
4
7
Long Axis Ф25*293
2
23
Flat Washer Ф13.5*Ф24*2.5
4
8
Short Axis Ф25*198
1
24
Nut M12
2
9
Rear Axis Ф25*153
1
25
Hex Bolt M10*25
4
10
Adjustable Rolling Axis Ф19*200
1
26
Hex Bolt M12*75
2
11
Rolling Axis for Oil Cylinder
Ф15.6*80
1
27
Hex Bolt M10*25
8
12
Torsion Spring Ф45*22*Ф4
1
28
Hex Bolt M8*15
2
13
End cap of Axis Ф38*14
8
29
Screw M5*10
12
14
Metal Bushing
Ф38*Ф32*Ф25.2*18
14
30
Flat Nut 1/4
1
15
Busing Ф31*Ф25.4*Ф19.2*6
2
31
Flat Nut 1/4L
1
16
Pad 1220*300*65
1
32
Flange Bolt KUUD-1/4*4
1
page 13
