maxxess eMAX-LP1502 - Reader Wiring Diagram

February, 2019 eMAX-LP1502-Man Page 9 of 20

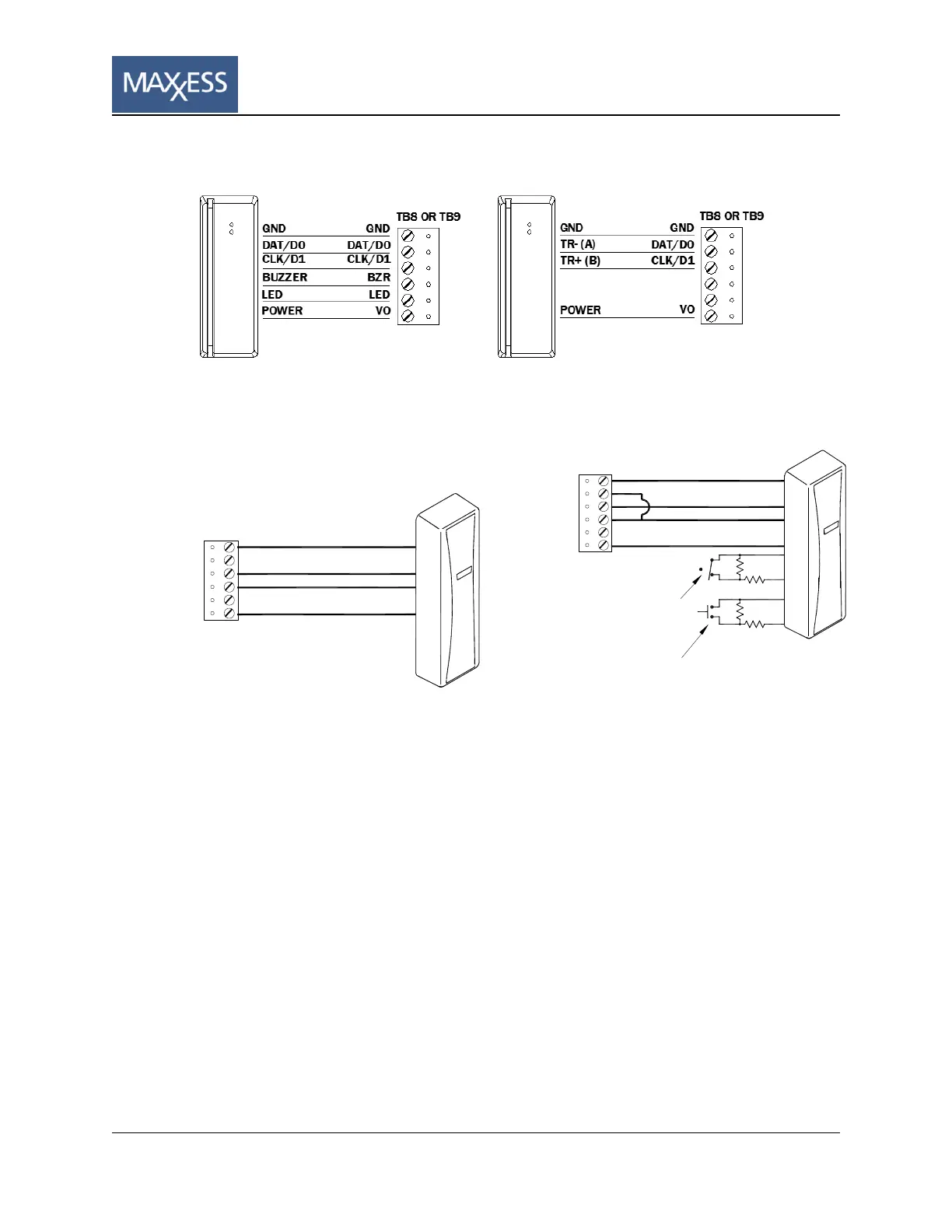

Reader Wiring Diagram:
Typical D1/D0 or Clock/Data Reader
Typical 2-Wire RS-485 Device
(Such as OSDP Reader)
VO
LED
BZR
D1/CLK/TR+
D0/DAT/TR-
GND
+12 Vdc
D1
GROUND
DO (GREEN LED)
1
TB8 or TB9
1
VO
LED
BZR
D1/CLK/TR+
D0/DAT/TR-
GND
+12 Vdc
D1
GROUND
DO (GREEN LED)
NORMALLY CLOSED CONTACT *
DOOR MONITOR SWITCH
REQUEST TO EXIT SWITCH
NORMALLY OPEN CONTACT *
1K,1%
1K,1%
1K,1%
1K,1%
TB8 or TB9
Typical Unsupervised F/2F Reader
Typical Supervised F/2F Reader
Jumper D1 to LED on supervised F/2F readers
* Inputs on supervised F/2F readers may be unsupervised or supervised (supervised shown).
