4. For all other models, latch the Left Side Panel with the Back Panel. The buckle has
a guide tab that must be placed in the guide slot for alignment. When the Back
Panel and the Side Panel is attached together on the floor panel, make sure all the
buckles are latched. (see Figure 6)

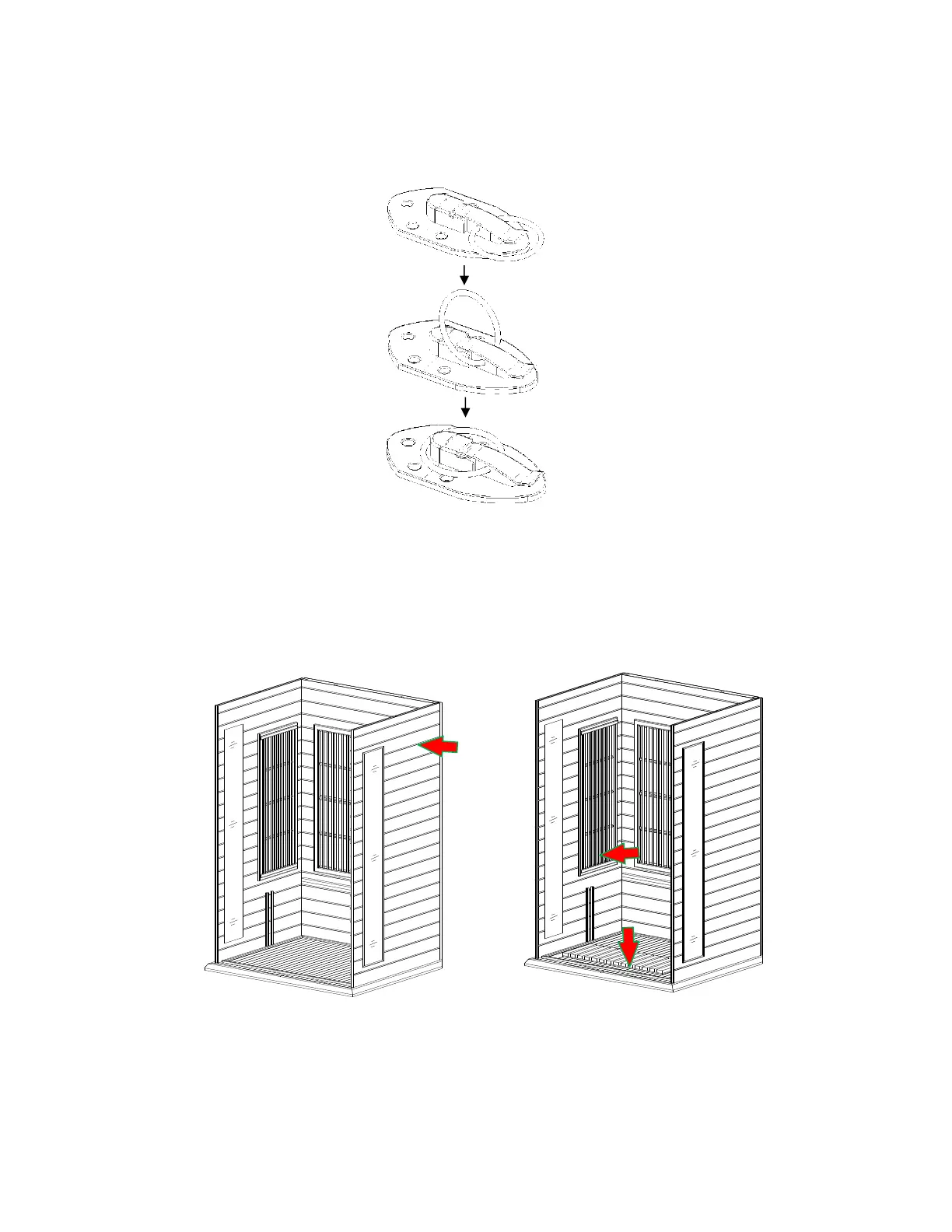

FIG 6 Buckle
5. Align the Right Side Panel with the Floor Panel’s corresponding patterns. Make sure
the Right Panel fits flush into the Back Panel and latch together. (see FIG 7 and
FIG 8)
FIG 7 Assembling Right Panel FIG 8 Placing Floor Heater
Page 10
