Bench Heating Board
5. Align the Right Side Panel with the Floor Panel’s corresponding patterns; make sure
the Right Panel fits flush into the Back Panel and latch together. See FIG-6

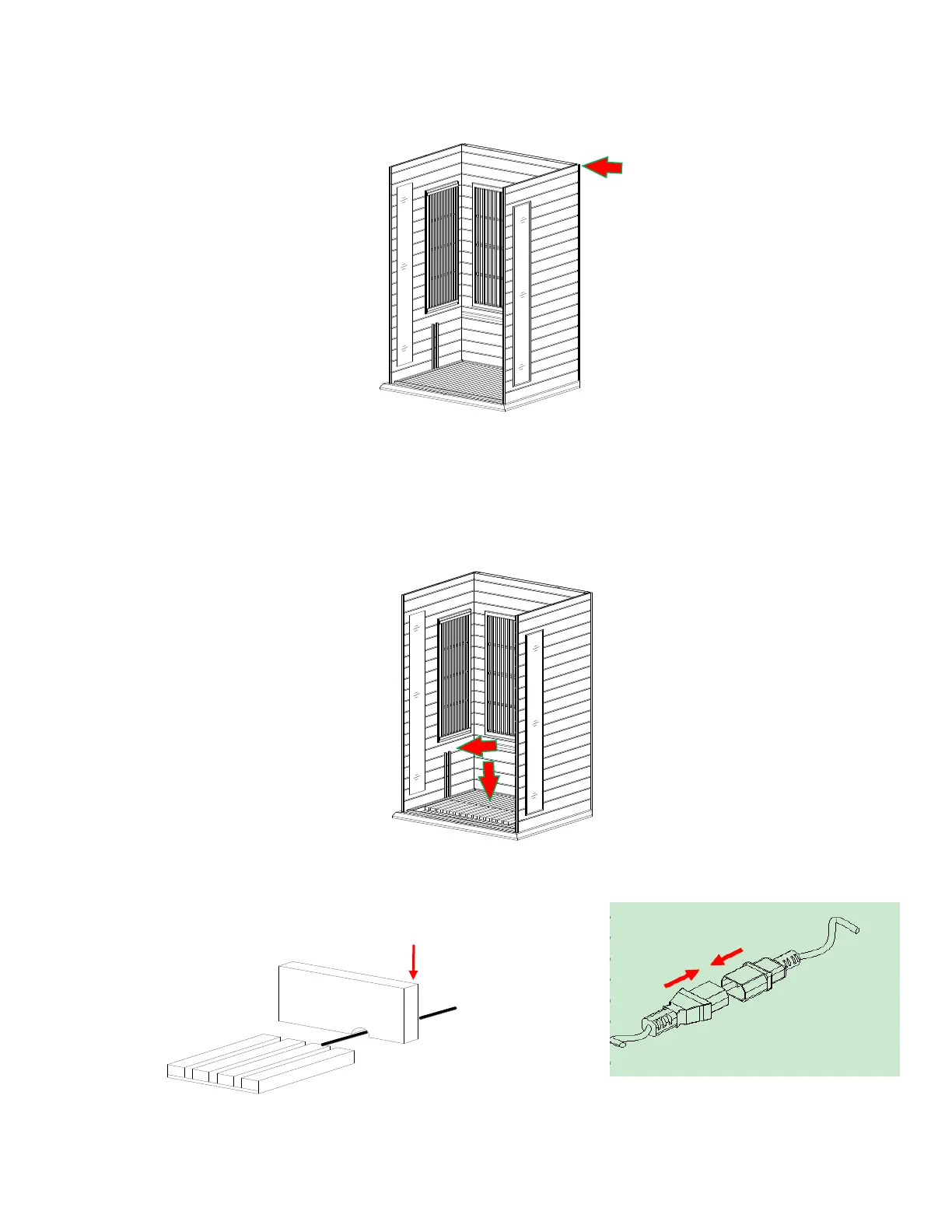

FIG-6 Assembling Right Panel
6. Place the Floor Heater on the Floor Panel making sure that the Floor Heater is in
front of the Bench Heater Panel slots. Please note there is a pre-cut small hole
under the Bench Heater Panel which is provided for the Floor Heater cord. This
cord will connect the Floor Heater to the plug outlet on the Left Side Panel. See
FIG-7 & 8
FIG-7 Placing Floor Heater
FIG-8 Connect Floor Heater
Floor Heater
Floor Heater Wire
