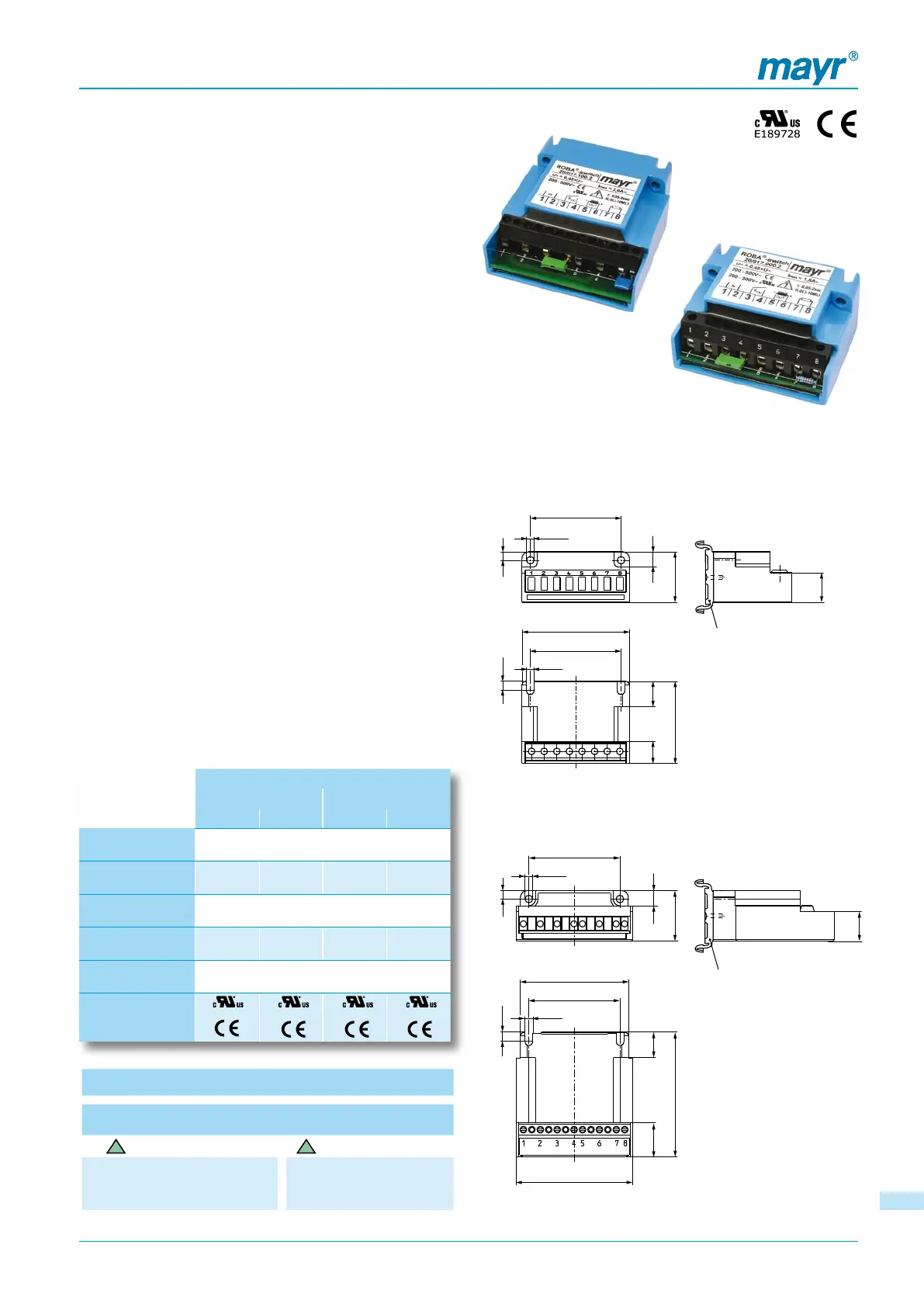

Mayr ROBA-stop-M - Page 15

17,5
54
5
5,6
9
30
48,6
1513
64
Ø4,5
54
4,5
17,5
54
5
5,6
9
30
73,6
1520
64
69
Ø4,5
54
4,5
ROBA
®
-switch Type 017._00.2
bis 300 V
Application
ROBA
®
-switch fast acting rectifiers are used to connect DC con-
sumers to alternating voltage supplies, for example electromagnetic
brakes and couplings (ROBA-stop
®
, ROBA
®
-quick, ROBATIC
®
) as
well as electromagnets and electrovalves etc.
Fast acting rectifier ROBA
®
-switch 017._00.2
• Consumer operation with overexcitation or power reduction
• Input voltage: 100 - 500 VAC
• Maximum output current I
RMS
: 3 A at 250 VAC
• UL-approved
Function
The ROBA
®
-switch units are used for operation at an input
voltage of between 100 and 500 VAC, dependent on size. They can
switch internally from bridge rectification output voltage to half-
wave rectification output voltage. The bridge rectification time can
be modified from 0,05 to 2 seconds by exchanging the external
resistor (R
ext
).
Electrical Connection (Terminals)
1 + 2 Input voltage (fitted protective varistor)
3 + 4 Connection for external contact for DC-side switch-off
5 + 6 Output voltage (fitted protective varistor)
7 + 8 R
ext
for bridge rectifier timing adjustment
Technical Data
Input voltage see Table 1
Output voltage see Table 1
Protection IP65 components, IP20 terminals,
IP10 R
ext
Terminal nom. cross-section 1,5 mm
2
, (AWG 22-14)
Ambient temperature -25 °C up to +70 °C
Storage temperature -40 °C up to +105 °C
ROBA
®
-switch Sizes, Table 1
Dimensions (mm)
Type 017.000.2
Size
Type 017.000.2 Type 017.100.2
10 20 10 20
Input voltage
VAC ± 10 %
100 - 250 200 - 500 100 - 250 200 - 500
Output voltage
VDC, U
bridge
90 - 225 180 - 450 90 - 225 180 - 450
Output voltage
VDC, U
half-wave
45 - 113 90 - 225 45 - 113 90 - 225
Output current I
RMS
at ≤ 45 °C, (A)
2,0 1,8 3,0 2,0
Output current I
RMS
at max. 70 °C, (A)
1,0 0,9 1,5 1,0
Comformity
markings
Order Number
__ / 0 1 7 . __ 0 0 . 2
Size
10
20
0
1
UL-approved
to 300 V
to 500 V
Accessories:
Mounting bracket set for
35 mm rail acc. to EN 50022:
Article-No. 1802911
Type 017.100.2
Accessories:
Mounting bracket set for
35 mm rail acc. to EN 50022:
Article-No. 1802911
up to 300 V
