Maytag ACM1580AB User Manual

Component Specifications
CAUTION
!
To avoid electrical shock, personal injury, or death, disconnect power to unit and discharge capacitor before
servicing, unless testing requires power.
16026267 ©2005 Maytag Services 10

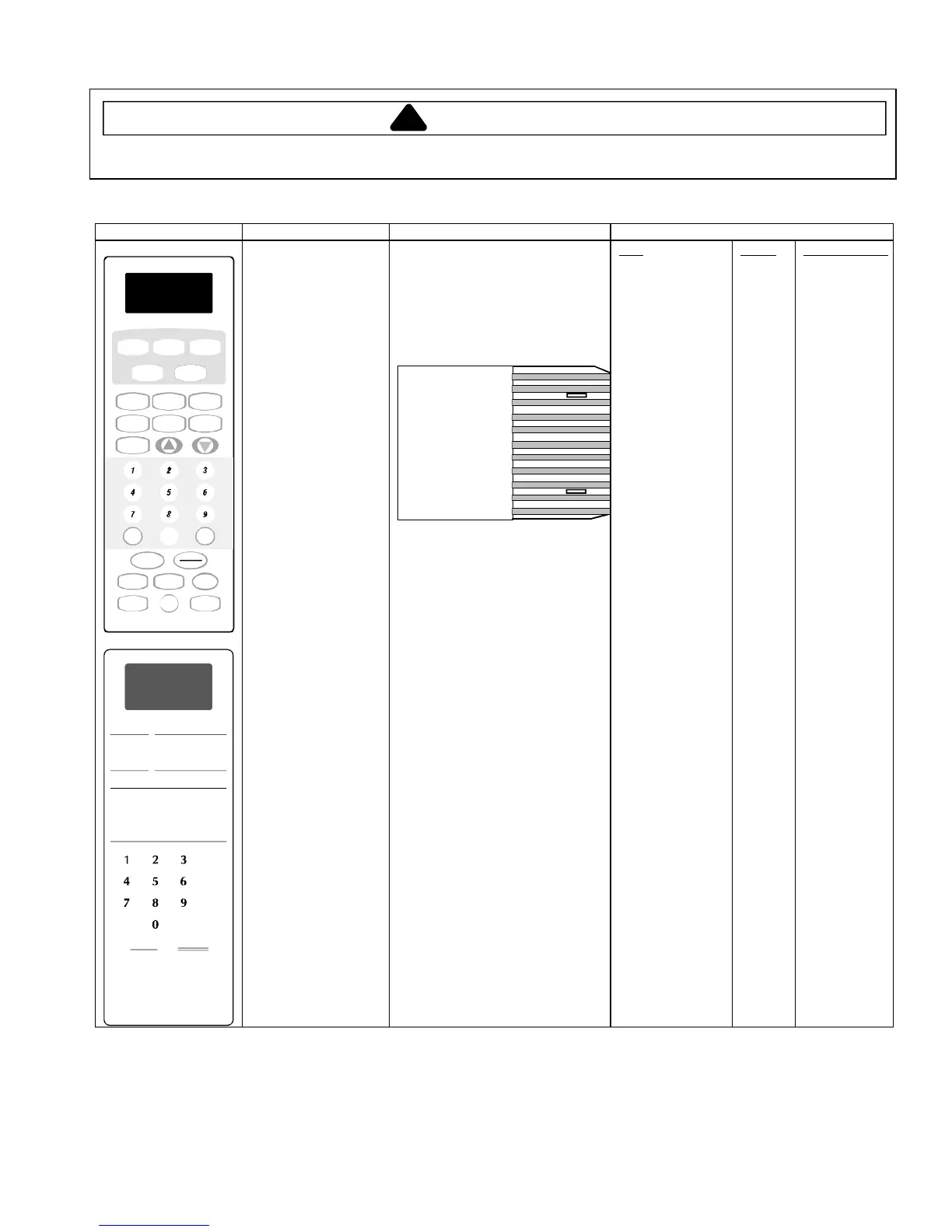

Illustration Component Testing Results
ACM1580
FOR RE CIPES REQUIRING STRIRRING OR TO
CHECK FOOD WITHOUT CANCELING COOKING
PROGRA M - PRESS S TART/ P AUSE
CLOCK TIMER
CONTROL
SE T-UP
REMINDER
RECALL HELP
START
PAUSE
CANCEL
STOP
PROGRAM
POWER
LEVEL
0
WA RM
HOLD
DEFROST
AUTO/TIM E
RAPID
DEFROST
1 lb.
EASY
COOK
LESS
MORE
SENSOR
REHEAT
SE NS OR
POPCORN
SENSOR
COOK
COOK
AUTO
BAK E
AUTO
ROAST
ROAST BAK E
Convection
Combination
Microwave
JMC9158
FOR RECIPES REQUIRI NG STIRRING OR
TO CHECK FOOD WITHOUT CANCELLING COOKING
PROGRAM - PRESS START/PAUSE
Clock
Control
Set-up
Timer
Help Reminder Recall
More + Less -
Cancel
Stop
Start
Pause
Program
Warm
Hold
Power
Level
Defrost
Auto/Time
Easy
Cook
Rapid
Defrost
1 lb.
Sensor
Cook
Sensor
popcorn
Sensor
Reheat
Microwave
Convection
Convection Combination
Conv.
Cook
Auto
Bake
Auto
Roast
Bake Roast
Membrane key panel
Disconnect ribbon from
connector.
Continuity is indicated as 100 Ω
and below.
Each pad must be pressed to
perform the following test.
1
2
3
4
5
6
7
8
9
10
11
Top
Pad
Sensor Popcorn
Hold Warm
Sensor Cook
Defrost Auto/Cook
Control Set-up
Timer
Clock
Easy Cook
Sensor Reheat
Help
More
Less
Power Level
Program
Cancel Stop
Start/Pause
8
9
0
1
2
3
4
5
6
7
Auto Bake
Auto Roast
Conv. Cook
Combi. Roast
Combi. Bake
Reminder
Recall
Rapid Defrost
Trace
1 & 8
2 & 8
3 & 8
4 & 8
5 & 8
6 & 8
7 & 8
1 & 9
3 & 9
5 & 9
6 & 9
7 & 9
1 & 10
2 & 10
3 & 10
4 & 10
5 & 10
6 & 10
7 & 10
1 & 11
2 & 11
3 & 11
4 & 11
5 & 11
6 & 11
7 & 11
1 & 12
3 & 12
5 & 12
6 & 12
7 & 12
1 & 13
2 & 13
3 & 13
Measurement
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
Continuity
