Disassembly Procedures
To avoid risk of electrical shock, personal injury or death;
disconnect power to oven and discharge capacitor before
following any disassembly procedures.
WARNING
!

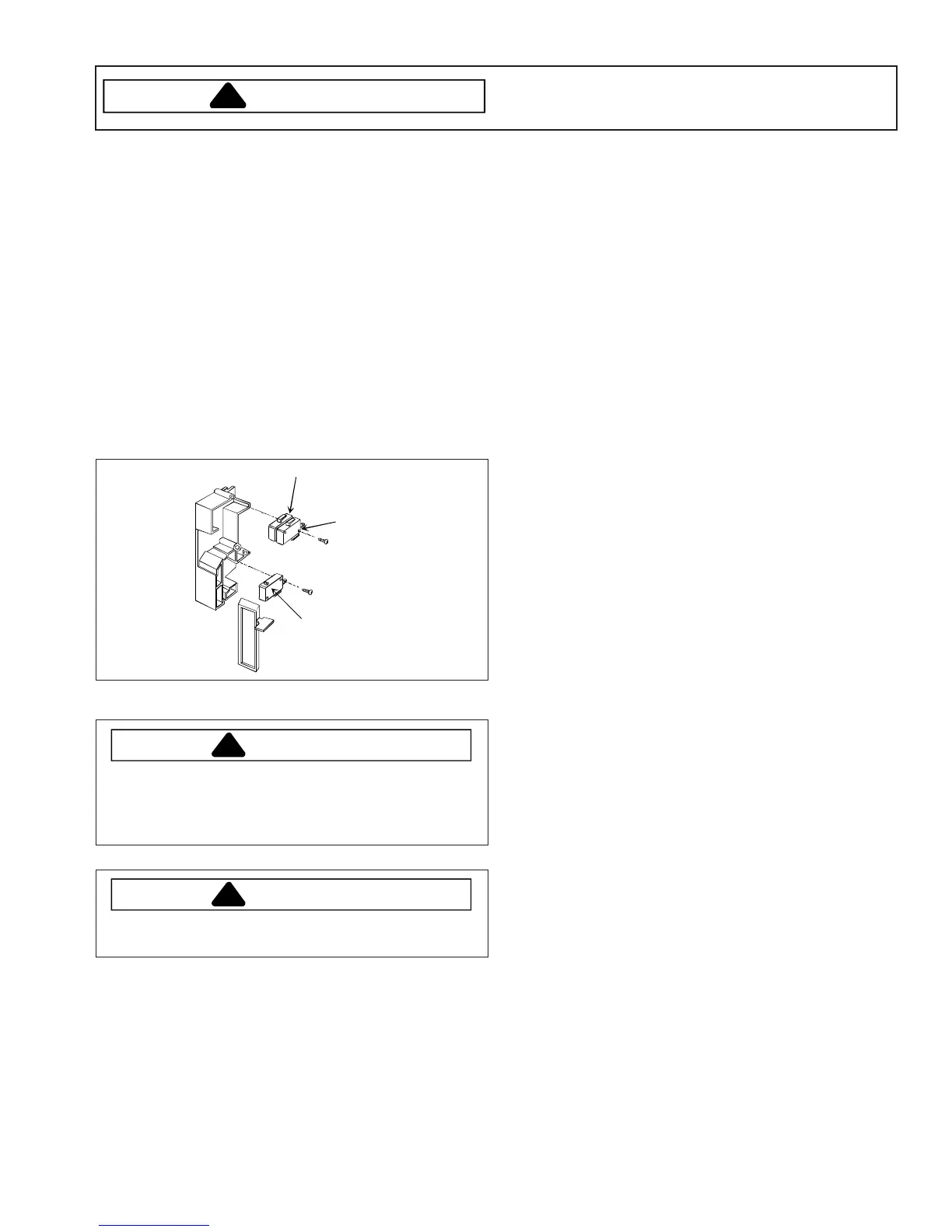

Secondary Interlock, Monitor, and Oven
Lamp Switch Removal
1. Remove outer case, see “Outer Case Removal.”
2. Open oven door to release stress on interlock
assembly.
3. Remove wire terminals from secondary interlock,
monitor, oven lamp switch.
4. Remove screws securing secondary interlock,
monitor, oven lamp switch bracket.
5. Slide bracket upward to release.
6. Remove screw securing switch being removed to
bracket.
7. Replace and reassemble in reverse order.
8. Perform adjustment procedure.
NOTE: When line fuse blows, replace monitor, primary,
secondary interlock switches.
Oven lamp
switch
Secondary
switch
Monitor
switch
Adjustment Procedure for Interlock Switches
CAUTION
!
To avoid possible exposure to microwave energy
leakage, the following adjustment of interlock switches
should be performed only by an authorized service
technician.
CAUTION
!
Microwave leakage test must always be performed
when unit is serviced, for any reason.
1. Loosen screws securing primary interlock bracket to
oven cavity front flange.
2. With oven door closed, adjust the bracket for a tight
fit.
3. Tighten screws securing primary interlock bracket.
4. Loosen screws securing secondary interlock,
monitor, oven lamp bracket to oven cavity front
flange.
5. With oven door closed, adjust the bracket for a tight
fit.
6. Tighten screws securing primary interlock bracket.
NOTE: Maximum amount of play allowed in the door,
when closed is 0.02 inches.
NOTE: After adjustment, perform the following test,
which should be performed by an authorized
service technician.
1. Maximum amount of play allowed in the door, when
closed is 0.02 inches when latched. First verify
primary interlock bracket, by pushing and pulling the
upper portion of the door. Then verify secondary
interlock, monitor, oven lamp bracket, by pushing and
pulling the lower portion of the door. Results should
be less than 0.02 inches of play.
2. Verify door latch closes the monitor and oven light
switches after the primary interlock switch is opened.
This test is performed by opening the door very
slowly.
3. Reinstall outer case and check for microwave
leakage.
