246EdwardsStreet,SE
Cleveland.-ennessee37311
Tei:423-,172-3333
Fax:423-s78-67;0

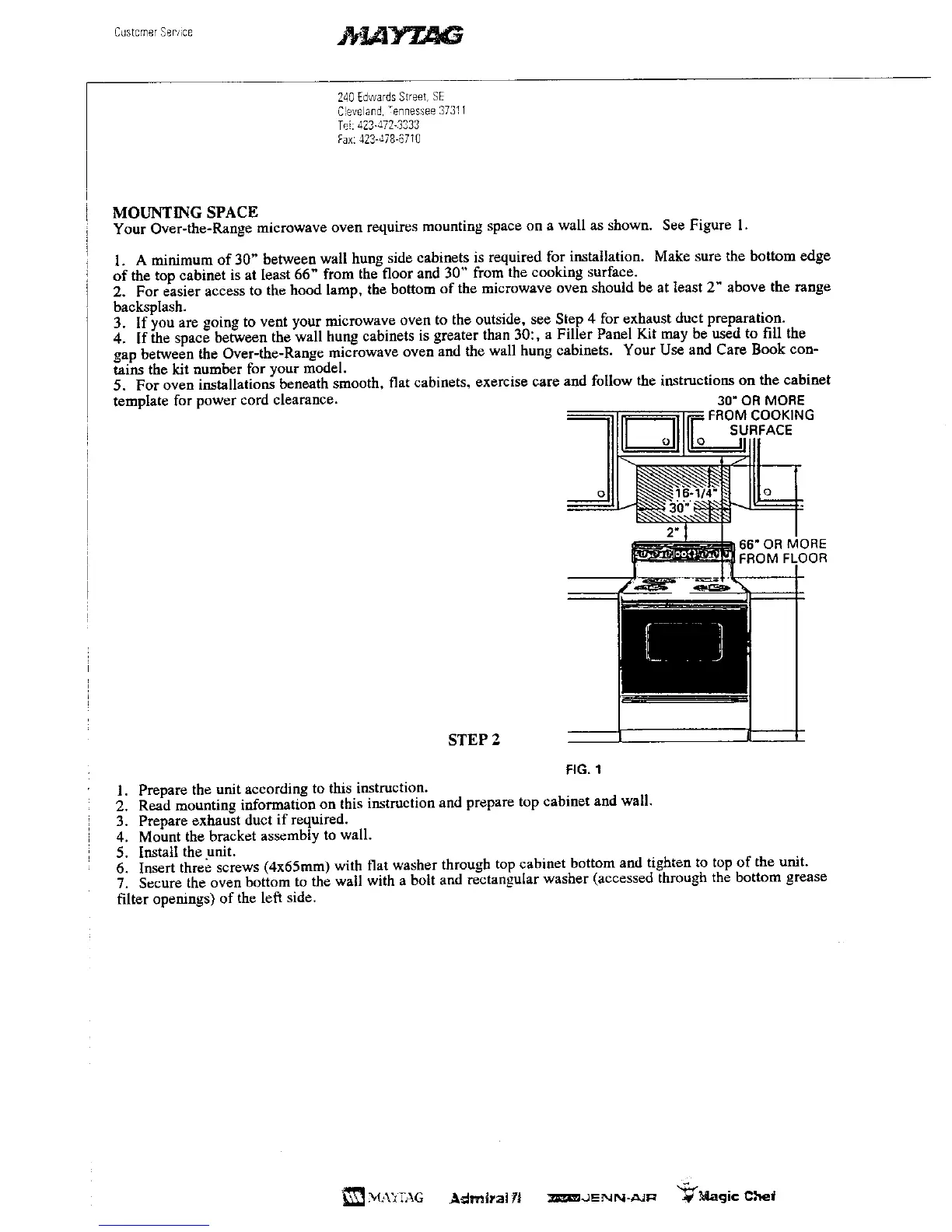

MOUNTING SPACE
Your Over-the-Range microwave oven requires mounting space on a wall as shown. See Figure 1.
1. A minimum of 30" between wall hung side cabinets is required for installation. Make sure the bottom edge
of the top cabinet is at least 66" from the floor and 30" from the cooking surface.
2. For easier access to the hood lamp, the bottom of the microwave oven should be at least 2" above the range
backsplash.
3. If you are going to vent your microwave oven to the outside, see Step 4 for exhaust duct preparation.
4. If the space between the wall hung cabinets is greater than 30:, a Filler Panel Kit may be used to fill the
gap between the Over-the-Range microwave oven and the wall hung cabinets. Your Use and Care Book con-
tains the kit number for your model.
5. For oven installations beneath smooth, flat cabinets, exercise care and follow the instructions on the cabinet
template for power cord clearance. 30" OR MORE
:OOKING
SURFACE
2-
66" OR MORE
FROM FLOOR
STEP 2
FIG. 1
I. Prepare the unit according to this instruction.
2. Read mounting information on this instruction and prepare top cabinet and wall.
3. Prepare exhaust duct if required.
4. Mount the bracket assembly to wall.
5. Install the unit.
6. Insert three screws (4x65mm) with fiat washer through top cabinet bottom and tighten to top of the unit.
7. Secure the oven bottom to the wall with a bolt and rectangular washer (accessed through the bottom grease
filter openings) of the left side.
L
MA'_TAG Admiral )'1 =JENN-A]I:_ "_,'_ia¢Ji¢ C,"1¢1_
