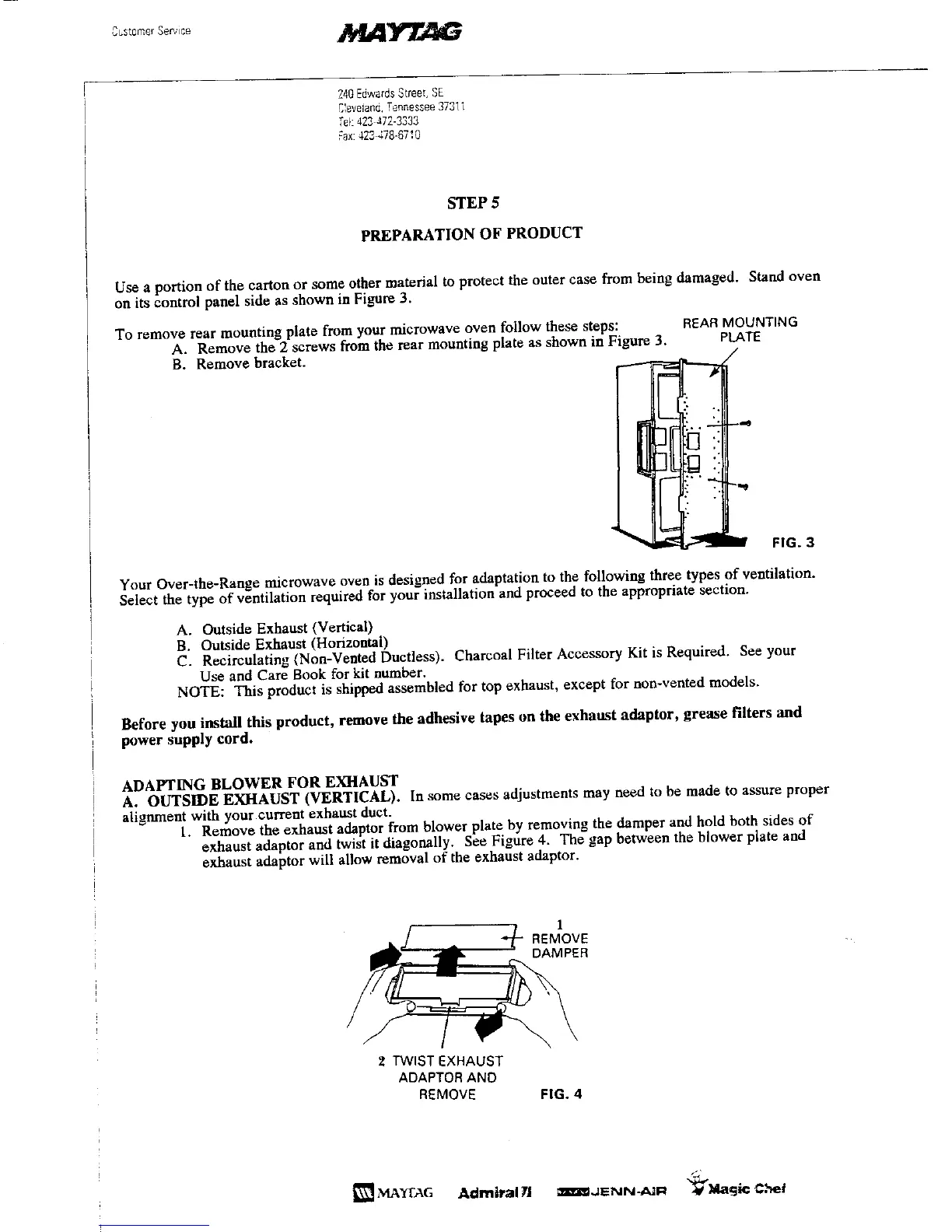

STEP 5
PREPARATION OF PRODUCT
Use a portion of the carton or some other material to protect the outer case from being damaged. Stand oven
on its control panel side as shown in Figure 3.
To remove rear mounting plate from your microwave oven follow these steps: REAR MOUNTING
A. Remove the 2 SCrews from the rear mounting plate as shown in Figure 3. PLATE
B. Remove bracket. _ _ /
,r
, i
*
11."
_' _ _ FIG, 3
Your 0ver-the-Range microwave oven is designed for adaptation to the following three types of ventilation.
Select the type of ventilation required for your installation and proceed to the appropriate section.
A. Outside Exhaust (Vertical)
B. Outside Exhaust (Horizontal)
C. Recirculating (Non-Vented Ductless). Charcoal Filter Accessory Kit is Required. See your
Use and Care Book for kit number.
NOTE: This product is shipped assembled for top exhaust, except for non-vented models.
Before you install this product, remoee the adhesive tapes on the exhaust adaptor, grease filters and
power supply cord.
ADAPTING BLOWER FOR EXHAUST
A. OUTSIDE EXHAUST (VERTICAL). In some cases adjustments may need to be made to assure proper
alignment with your current exhaust duct.
1. Remove the exhaust adaptor from blower plate by removing the damper and hold both sides of
exhaust adaptor and twist it diagonally. See Figure 4. The gap between the blower plate and
exhaust adaptor will allow removal of the exhaust adaptor.
2 TWIST EXHAUST
ADAPTOR AND
REMOVE FIG. 4
