240EdwardsS[reet.SE
Cleveland,Tennessee37311
Tei:,_23-472-3333
Fax:423-478-6710

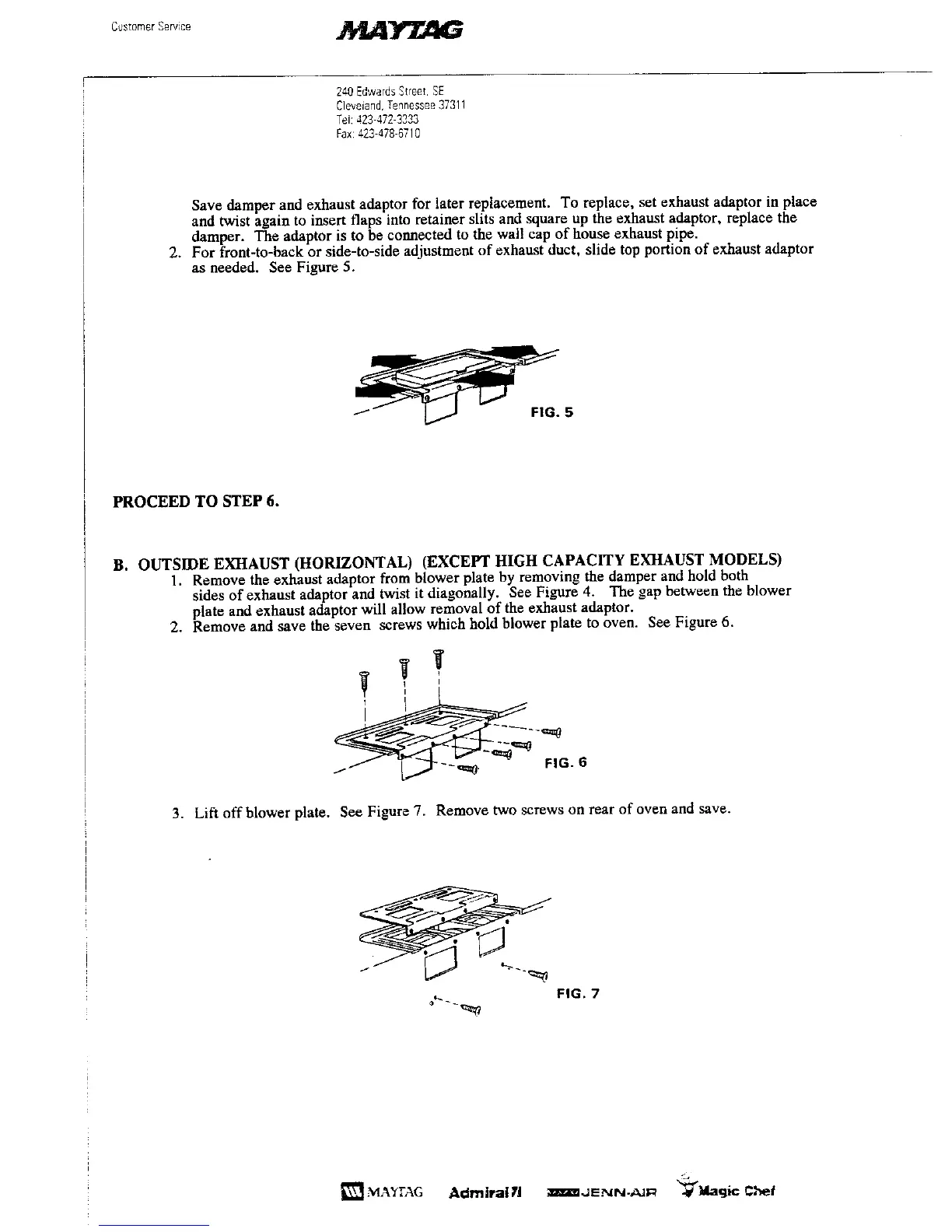

Save damper and exhaust adaptor for later replacement. To replace, set exhaust adaptor in place
and twist again to insert flaps into retainer slits and square up the exhaust adaptor, replace the
damper. The adaptor is to be connected to the wall cap of house exhaust pipe.
2. For front-to-back or side-to-side adjustment of exhaust duct, slide top portion of exhaust adaptor
as needed. See Figure 5.
PROCEED TO STEP 6.
B. OUTSIDE EXHAUST (HORIZONTAL) (EXCEPT HIGH CAPACITY EXHAUST MODELS)
1. Remove the exhaust adaptor from blower plate by removing the damper and hold both
sides of exhaust adaptor and twist it diagonally. See Figure 4. The gap between the blower
plate and exhaust adaptor will allow removal of the exhaust adaptor.
2. Remove and save the seven screws which hold blower plate to oven. See Figure 6.
3. Lift off blower plate. See Figure 7. Remove two screws on rear of oven and save.
FIG. 7
[] MA_rA6 Admiral 7| IJENN-_ _¢Jic C_|
