240EdwarasStreet,SE
Uevelenu,Tennessee37311
Tei:_23-472-3333
Fax:423-478-6710

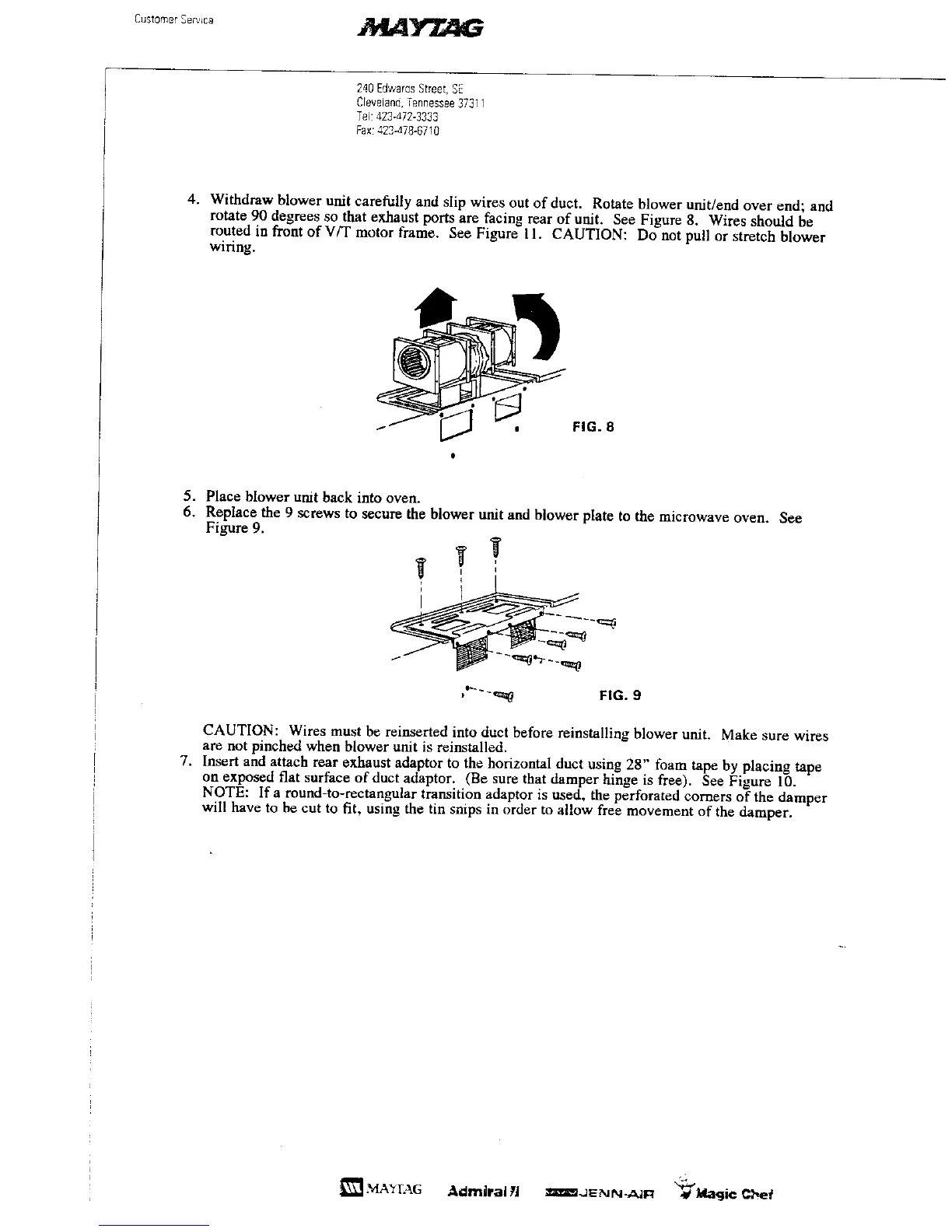

4. Withdraw blower unit carefully and slip wires out of duct. Rotate blower unit/end over end; and
rotate 90 degrees so that exhaust ports are facing rear of unit. See Figure 8. Wires should be
routed in front of V/T motor frame. See Figure [ 1. CAUTION: Do not pull or stretch blower
wiring.
FIG. 8
Q
5. Place blower unit back into oven.
6. Replace the 9 screws to secure the blower unit and blower plate to the microwave oven. See
Figure 9.
_"--_ FIG. 9
CAUTION: Wires must be reinsertad into duet before reinstalling blower unit. Make sure wires
are not pinched when blower unit is reinstalled,
7. Insert and attach rear exhaust adaptor to the horizontal duct using 28" foam tape by placing tape
on exposed fiat surface of duct adaptor. (Be sure that damper hinge is free). See Figure 10.
NOTE: Ira round-to-rectangular transition adaptor is used, the perforated corners of the damper
will have to be cut to fit, using the tin snips in order to allow free movement of the damper.
c
