2_40EdwardsStreet,SE
Cleveland,Tennessee3731l
Tei:_t23-472-3333
.ax:423-478-67;0

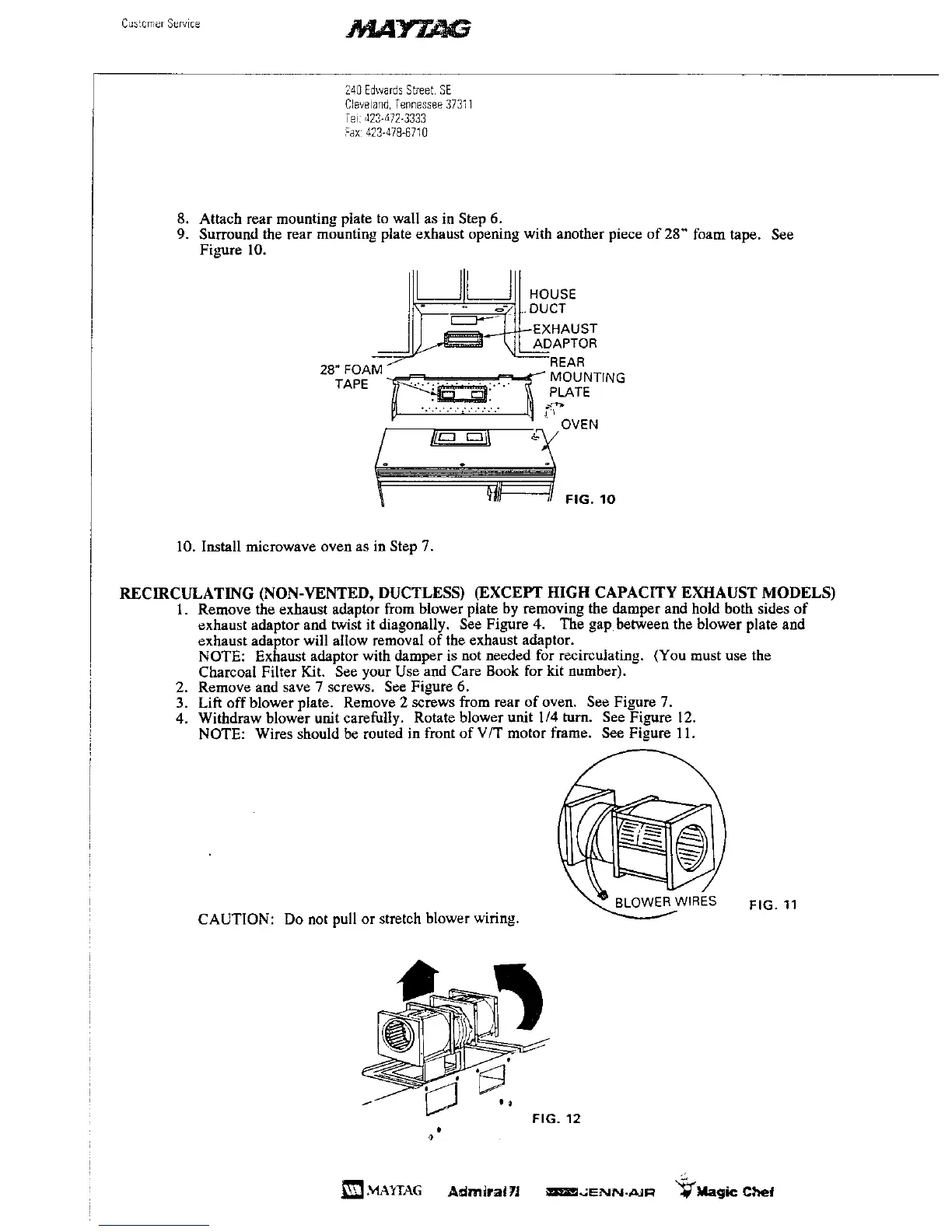

8. Attach rear mounting plate to wall as in Step 6.
9. Surround the rear mounting plate exhaust opening with another piece of 28" foam tape. See
Figure 10.
IIL___Jtot/I.oos
_I ADAPTOR
28" FOAM / REAR
_ _ MOUNTING
TAPE _--_:"" "--_ PLATE
OVEN
FIG. 10
10. Install microwave oven as in Step 7.
RECIRCULATING (NON-VENTED, DUCTLESS) (EXCEPT HIGH CAPACITY EXHAUST MODELS)
1. Remove the exhaust adaptor from blower plate by removing the damper and hold both sides of
exhaust adaptor and twist it diagonally. See Figure 4. The gap between the blower plate and
exhaust adaptor will allow removal of the exhaust adaptor.
NOTE: Exhaust adaptor with damper is not needed for recirculating. (You must use the
Charcoal Filter Kit. See your Use and Care Book for kit number).
2. Remove and save 7 screws. See Figure 6.
3. Lift offblower plate. Remove 2 screws from rear of oven. See Figure 7.
4. Withdraw blower unit carefully. Rotate blower unit 1/4 turn. See Figure 12.
NOTE: Wires should be routed in front of V/T motor frame. See Figure 11.
_WIR ES FIG. 11
CAUTION: Do not pull or stretch blower wirin 8.
FIG. 12
_'_ MAYI'AG Admiral 7| ,'x_x_JENN-,AJ_ _"li4agicC,'_f
