240EdwardsStree[,3E
C',eve]and.Tennessee37311
Tel:423-4723333
Fax:423-478-6710

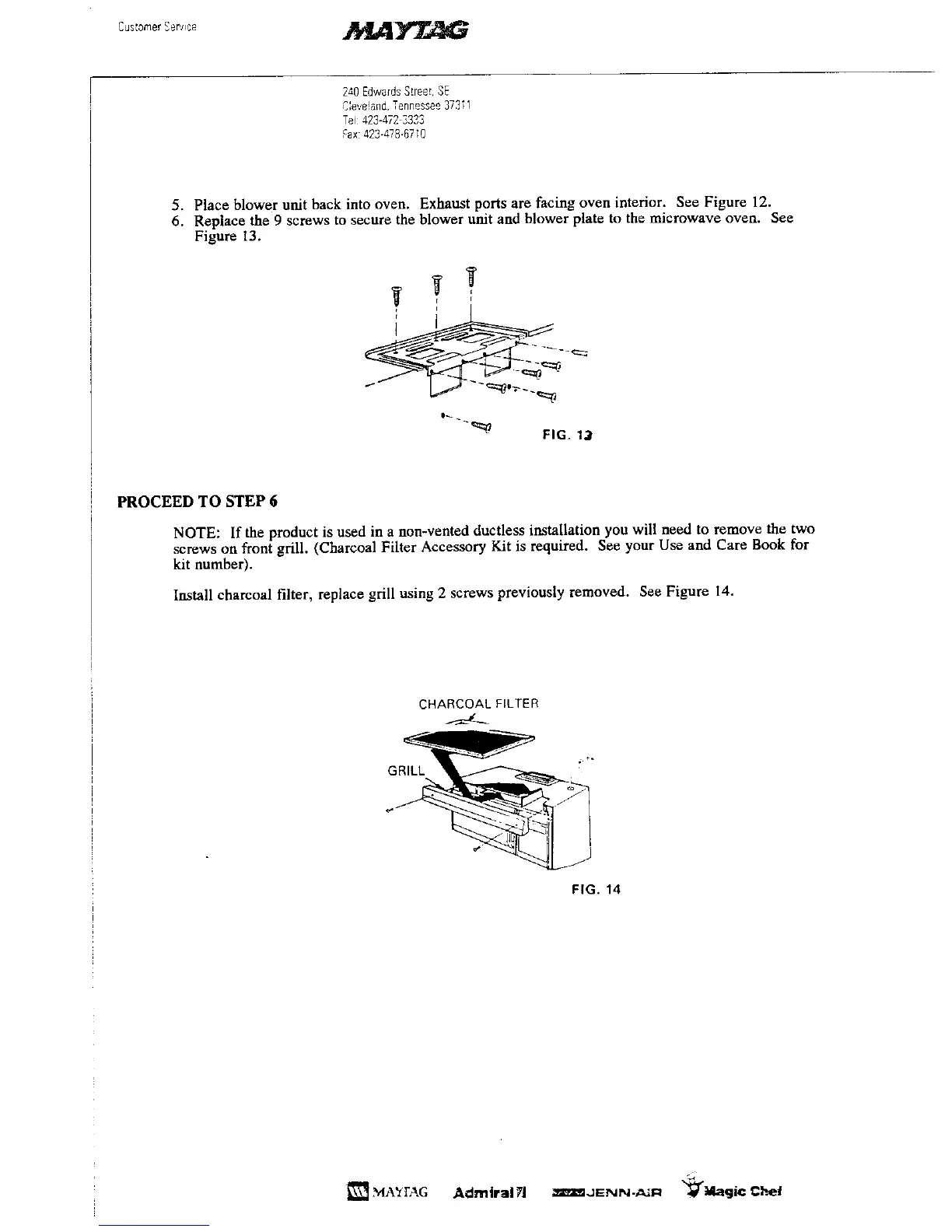

5. Place blower unit back into oven. Exhaust ports are facing oven interior. See Figure 12.
6. Replace the 9 screws to secure the blower unit and blower plate to the microwave oven. See
Figure 13.
"_ FIG. 1,._
PROCEED TO STEP 6
NOTE: If the product is used in a non-vented ductless installation you will need to remove the two
screws on front grill. (Charcoal Filter Accessory Kit is required. See your Use and Care Book for
kit number).
Install charcoal filter, replace grill using 2 screws previously removed. See Figure 14.
CHARCOAL FILTER
FIG. 14
[] MA'/I'AG Admiral _J a,._,-JENN-A_P "_ilagic C:i_ef
