Component Testing Procedures
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to washer before servicing, unless
testing requires power.
16022846 Rev 0 December 2003
4

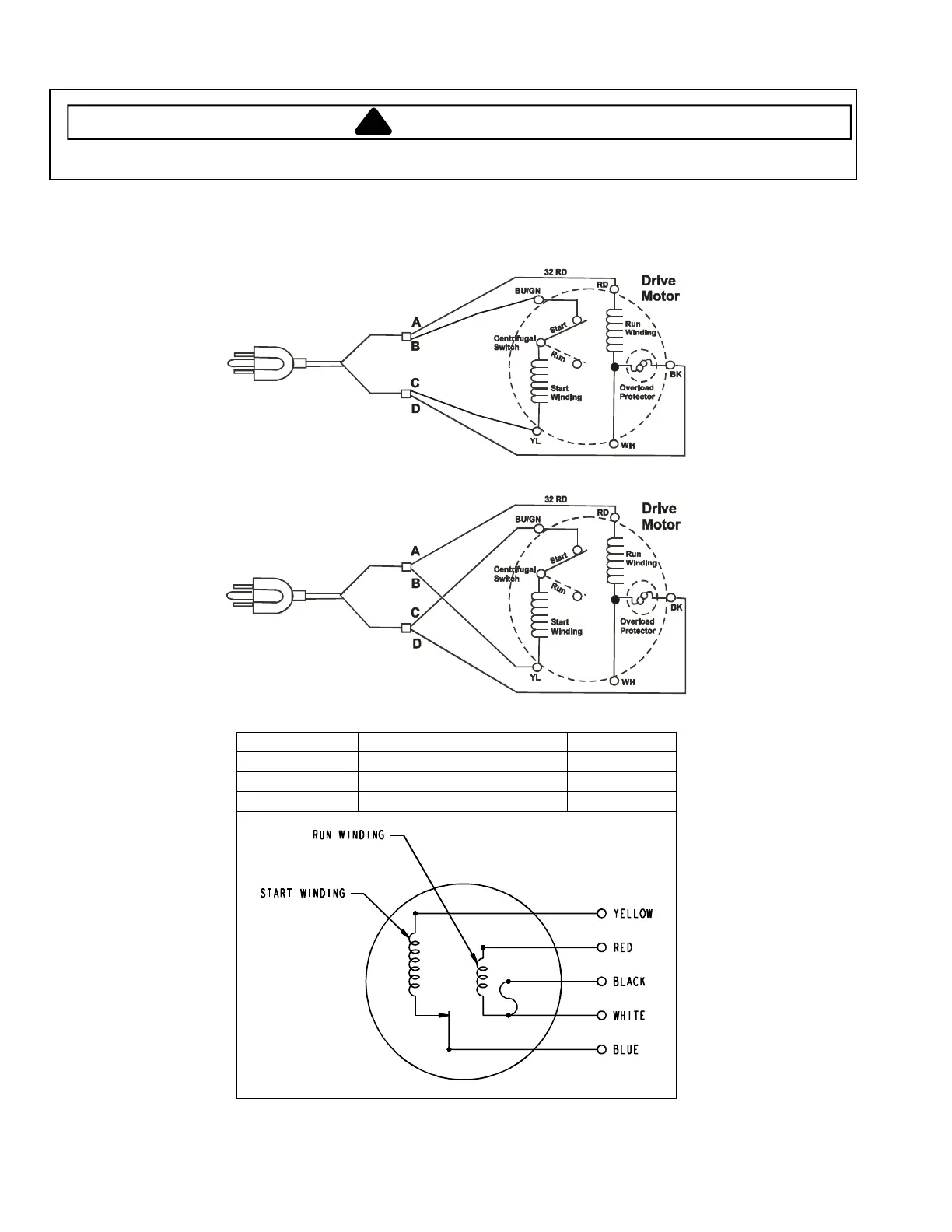

MOTOR TESTING
All four leads of the test cord are required to test the washer drive motor. The following drawings show installation of the test
cord on the drive motor. Reversing the motor to agitate or spin is accomplished by reversing wires B and C.
Spin
Windings Wiring Harness Connections Readings
Run Winding Red to White or Black
1.5Ω
Start Winding Yellow to Blue
3Ω
Over-load White to Black
0 Ω
