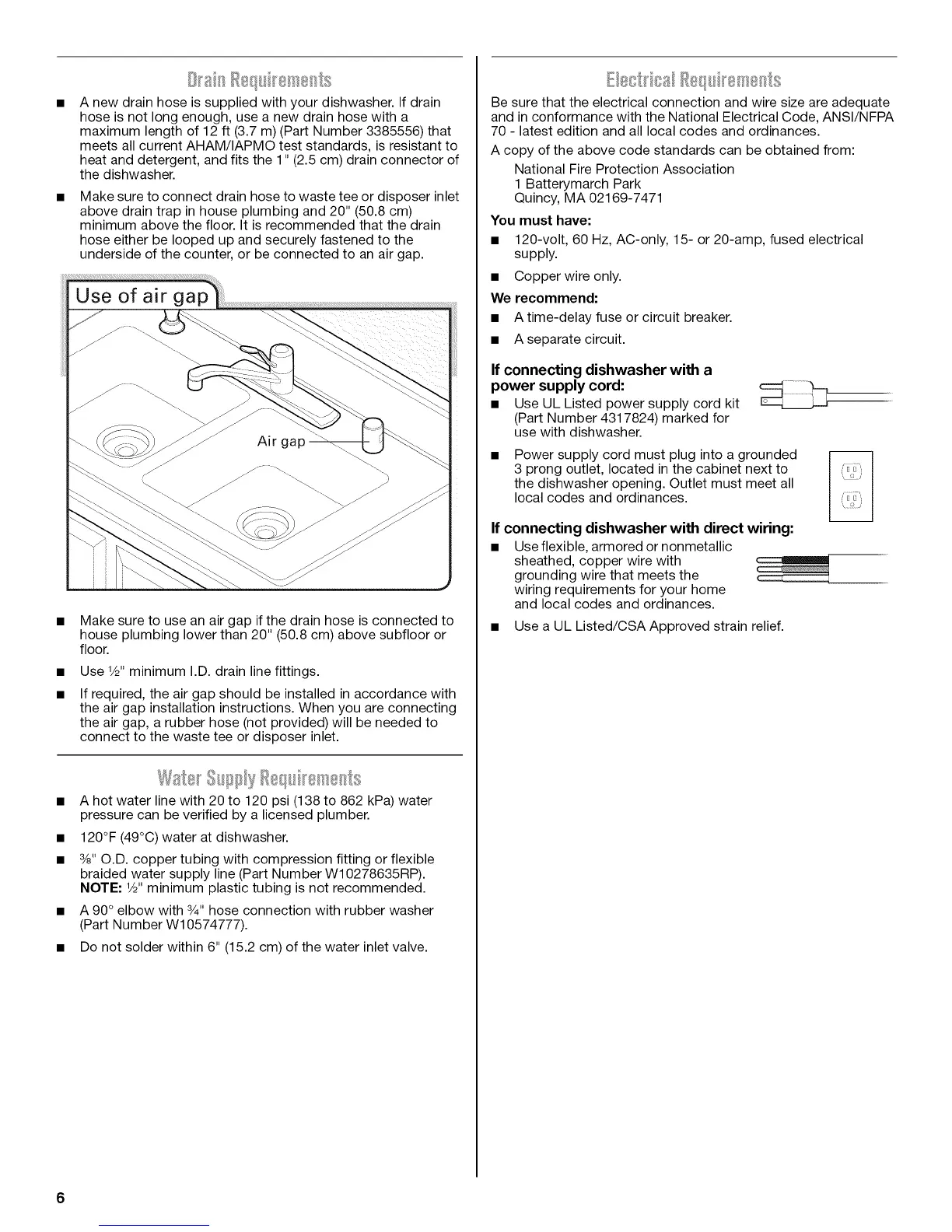

Anewdrainhoseissuppliedwithyourdishwasher.Ifdrain
hoseisnotlongenough,useanewdrainhosewitha
maximumlengthof12ft(3.7m)(PartNumber3385556)that
meetsallcurrentAHAM/IAPMOteststandards,isresistantto
heatanddetergent,andfitsthe1"(2.5cm)drainconnectorof
thedishwasher.
Makesuretoconnectdrainhosetowasteteeordisposerinlet
abovedraintrapinhouseplumbingand20"(50.8cm)
minimumabovethefloor.Itisrecommendedthatthedrain
hoseeitherbeloopedupandsecurelyfastenedtothe
undersideofthecounter,orbeconnectedtoanairgap.
Makesuretouseanairgapifthedrainhoseisconnectedto
houseplumbinglowerthan20"(50.8cm)abovesubflooror
floor.
UseV2" minimum I.D. drain line fittings.
If required, the air gap should be installed in accordance with
the air gap installation instructions. When you are connecting
the air gap, a rubber hose (not provided) will be needed to
connect to the waste tee or disposer inlet.
W2_ o_ ......_ _ _,_s'_"_,:_
• A hot water line with 20 to 120 psi (138 to 862 kPa) water
pressure can be verified by a licensed plumber.
• 120°F (49°C) water at dishwasher.
• 3/8"O.D. copper tubing with compression fitting or flexible
braided water supply line (Part Number W10278635RP).
NOTE: W' minimum plastic tubing is not recommended.
• A 90° elbow with 3/4"hose connection with rubber washer
(Part Number W10574777).
• Do not solder within 6" (15.2 cm) of the water inlet valve.
Be sure that the electrical connection and wire size are adequate
and in conformance with the National Electrical Code, ANSI/NFPA
70 - latest edition and all local codes and ordinances.
A copy of the above code standards can be obtained from:
National Fire Protection Association
1 Batterymarch Park
Quincy, MA 02169-7471
You must have:
• 120-volt, 60 Hz, AC-only, 15- or 20-amp, fused electrical
supply.
• Copper wire only.
We recommend:
• A time-delay fuse or circuit breaker.
• Aseparate circuit.
If connecting dishwasher with a
power supply cord:
Use UL Listed power supply cord kit
(Part Number 4317824) marked for
use with dishwasher.
Power supply cord must plug into a grounded
3 prong outlet, located in the cabinet next to
the dishwasher opening. Outlet must meet all
local codes and ordinances.
If connecting dishwasher with direct wiring:
• Use flexible, armored or nonmetallic
sheathed, copper wire with
grounding wire that meets the
wiring requirements for your home
and local codes and ordinances.
• Use a UL Listed/CSA Approved strain relief.
6
