4-7
Lift the coin funnel out through the service
access door on the top of the metercase.
4.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before
operating.
Failure to do so can result in death or
electrical shock.
Remove the coin vault.
Remove the 7/16” hex nut from the top of
the coin vault area.
Remove the service access door on top of
the metercase (See page 4-3).
1.
2.
3.

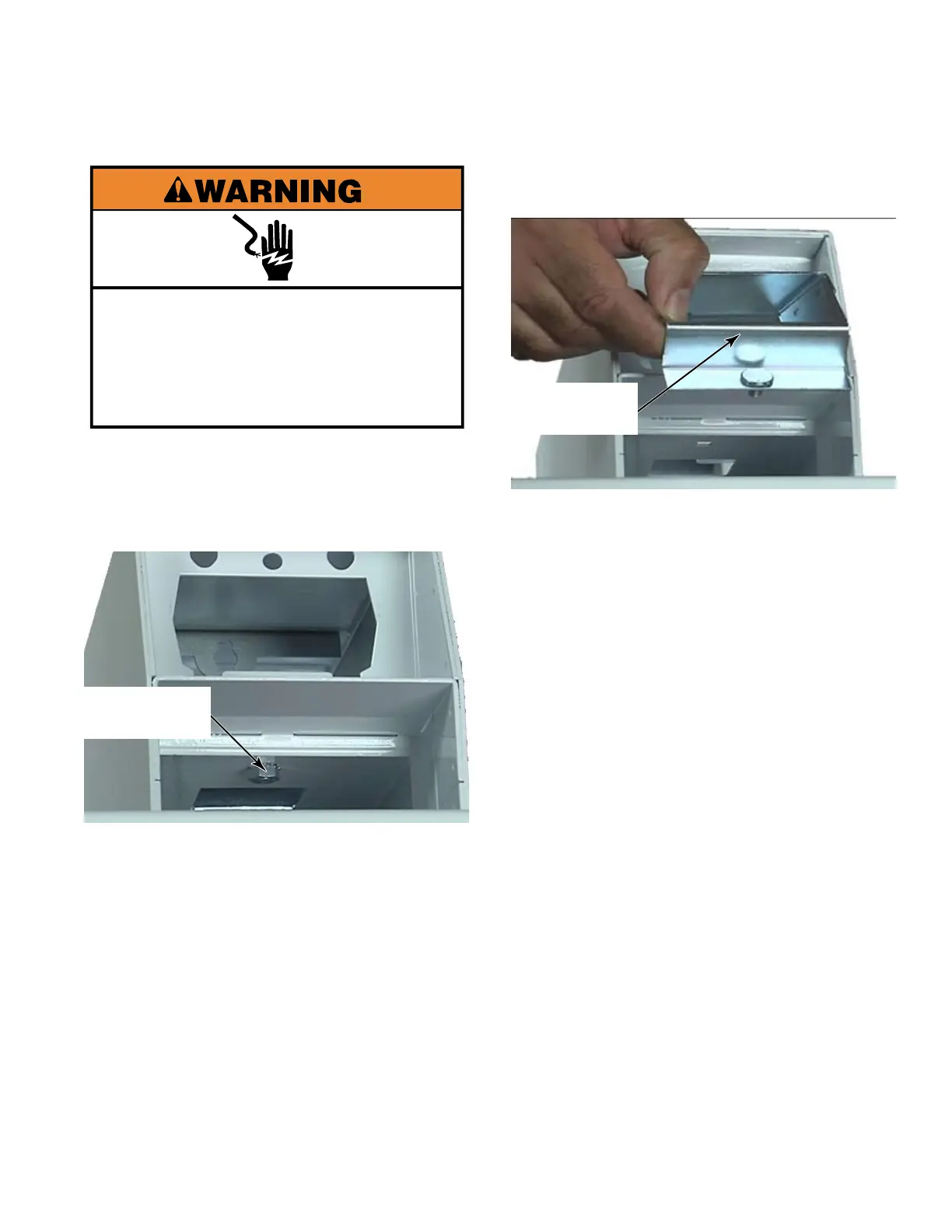

REMOVE COIN FUNNEL - CS
One 7/16”
Hex Nut
Coin Funnel
