10 Maytag Co. 113184-7

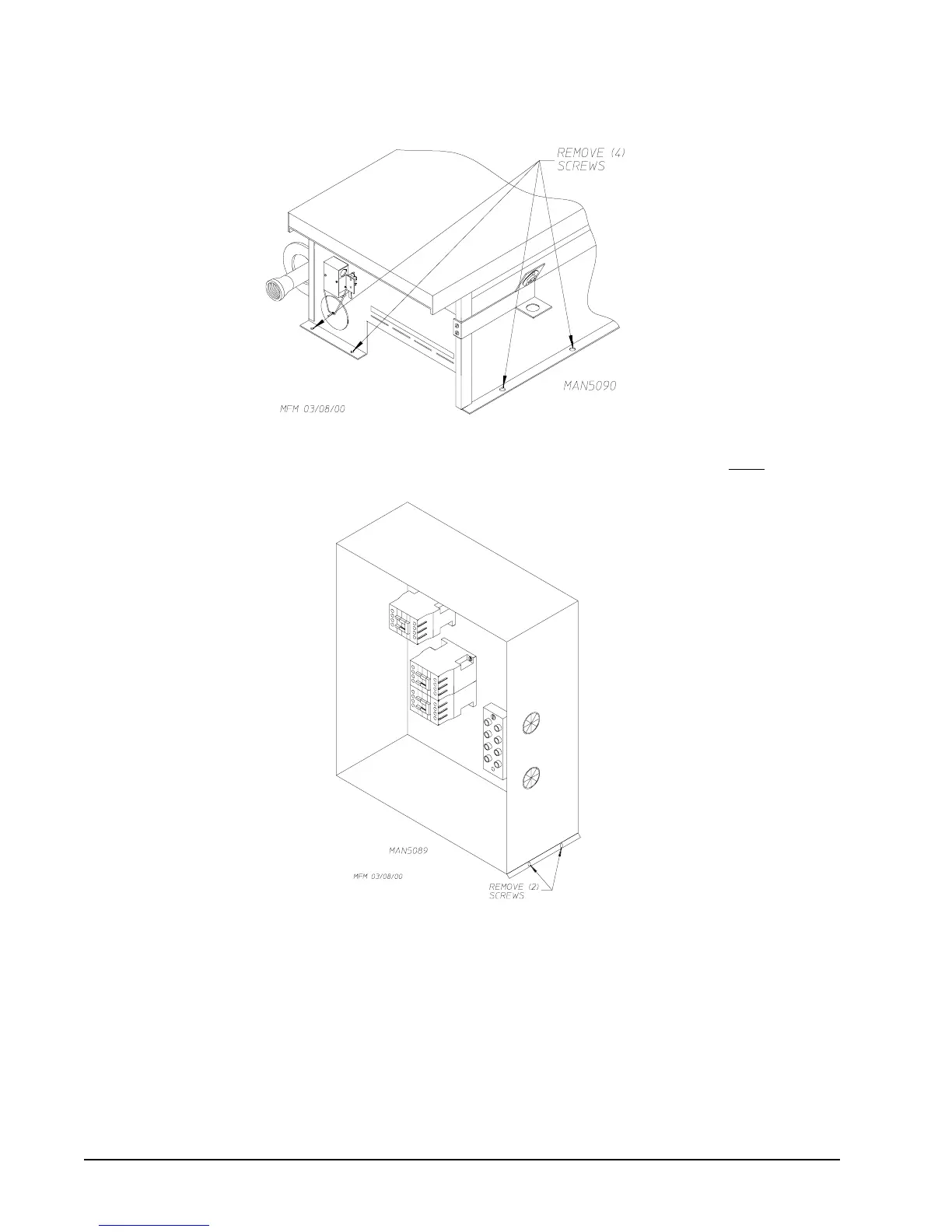

c. Remove the four (4) self-tapping screws on the burner box that secure it to the top of the dryer shown
in the illustration below.
d. Remove the two (2) self-tapping screws on the back electrical box and pull through ALL associated
wires from the motor to this electrical box (refer to the illustration below).
e. Reverse procedure for installing top section.
