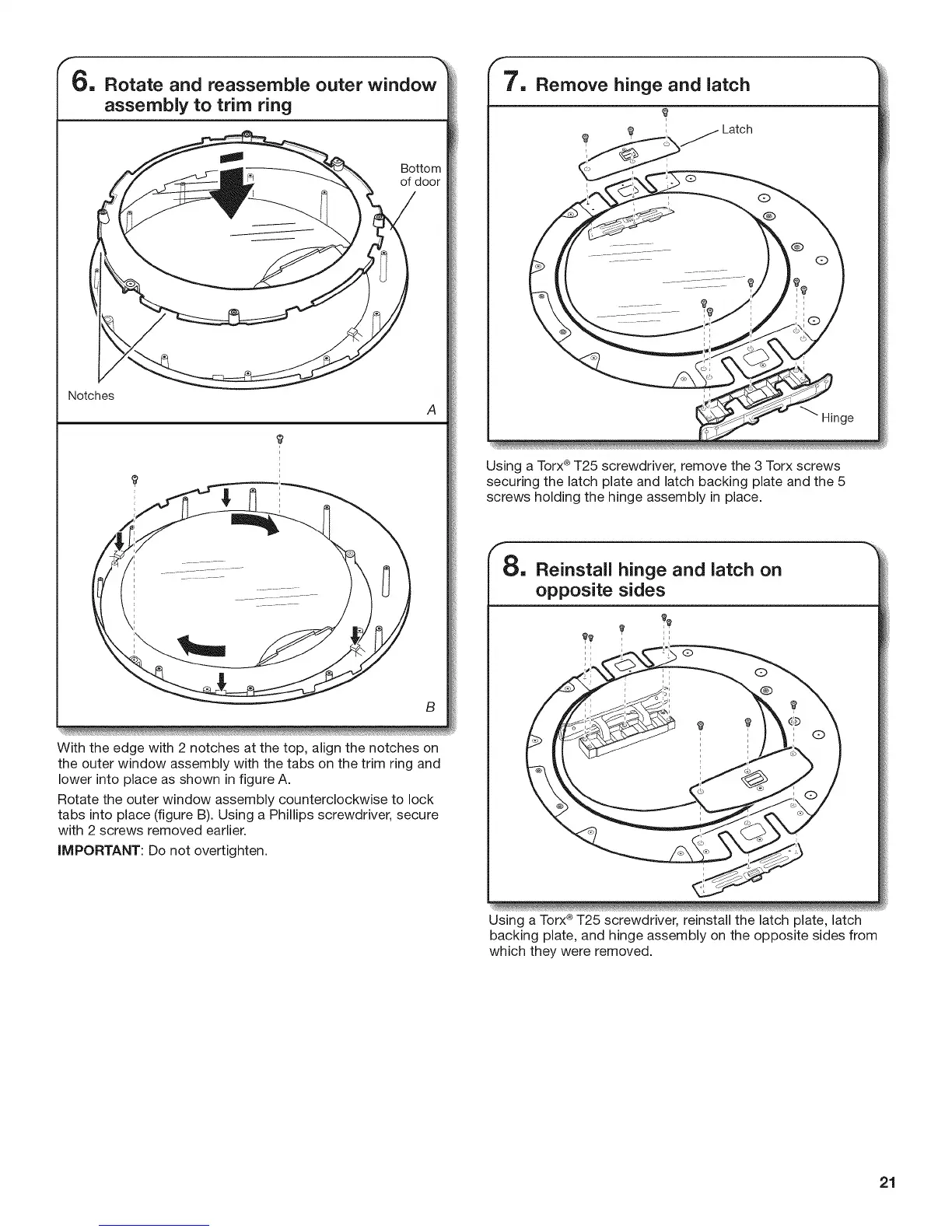

6, Rotate and reassemble outer window
assembly to trim ring
Bottom
of door
Notches
i
A
B
With the edge with 2 notches at the top, align the notches on
the outer window assembly with the tabs on the trim ring and
lower into place as shown in figure A.
Rotate the outer window assembly counterclockwise to lock
tabs into place (figure B). Using a Phillips screwdriver, secure
with 2 screws removed earlier.
IMPORTANT: Do not overtighten.
Using a Torx®T25 screwdriver, remove the 3 Torx screws
securing the latch plate and latch backing plate and the 5
screws holding the hinge assembly in place.
Reinstall hinge and latch on
opposite sides
Using a Torx®T25 screwdriver, reinstall the latch plate, latch
backing plate, and hinge assembly on the opposite sides from
which they were removed.
21
