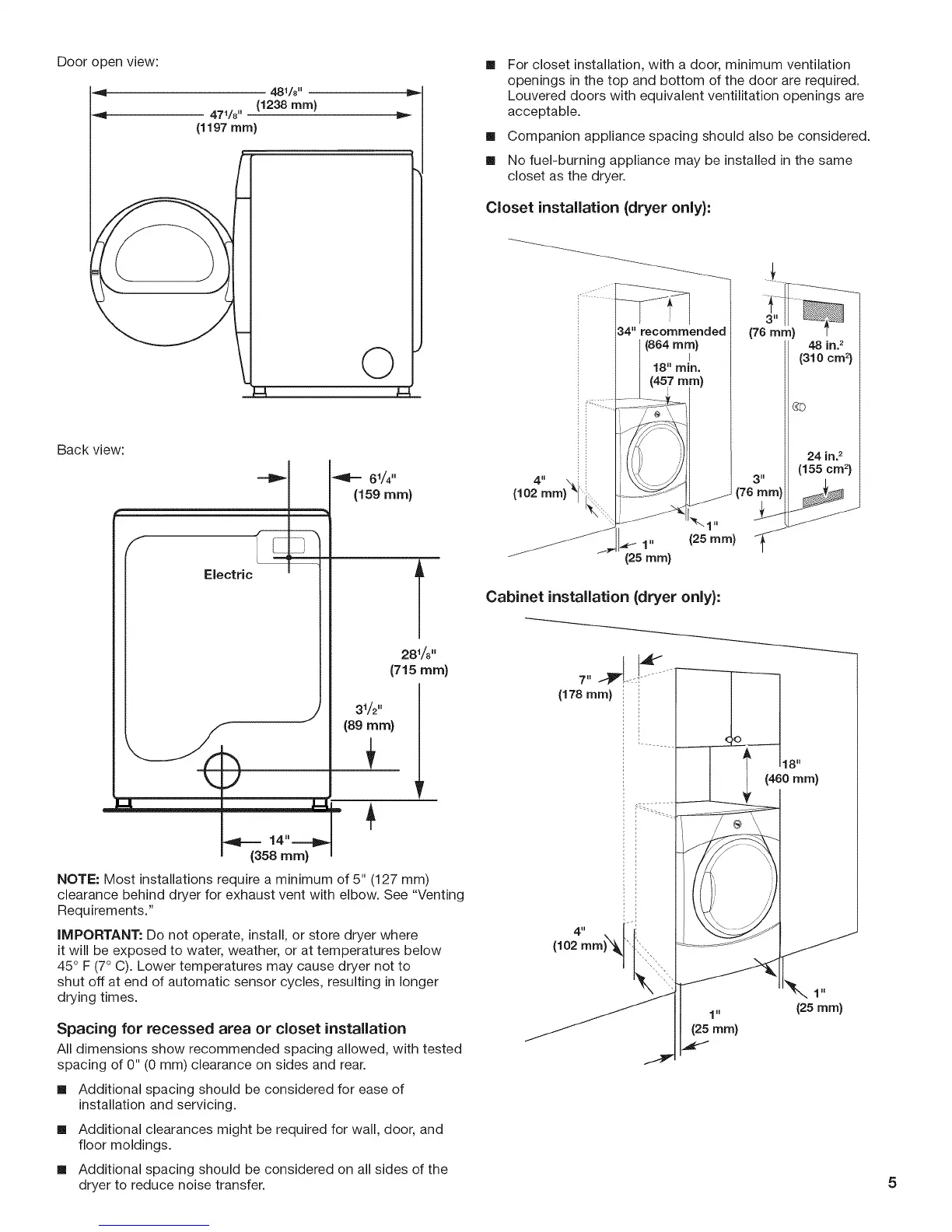

Door open view:
481/8"
(1238 ram)
471/8''
(1197 ram)
©
Back view:
f
f------
Electric
6t/4.
(159 ram)
31/2"
J
(89 ram}
T
28t/8"
(715 ram)
NOTE: Most installations require a minimum of 5" (127 mm)
clearance behind dryer for exhaust vent with elbow. See "Venting
Requirements."
IMPORTANT: Do not operate, install, or store dryer where
it will be exposed to water, weather, or at temperatures below
45 ° F (7° C). Lower temperatures may cause dryer not to
shut off at end of automatic sensor cycles, resulting in longer
drying times.
Spacing for recessed area or closet installation
All dimensions show recommended spacing allowed, with tested
spacing of 0" (0 mm) clearance on sides and rear.
[]
[]
[]
Additional spacing should be considered for ease of
installation and servicing.
Additional clearances might be required for wall, door, and
floor moldings.
Additional spacing should be considered on all sides of the
dryer to reduce noise transfer.
[]
[]
[]
For closet installation, with a door, minimum ventilation
openings in the top and bottom of the door are required.
Louvered doors with equivalent ventilitation openings are
acceptable.
Companion appliance spacing should also be considered.
No fuel-burning appliance may be installed in the same
closet as the dryer.
Closet installation (dryer only):
(864 mm)
I
18" mill.
1 II
(25 ram}
3 II
(76 ram}
(25 ram} .._j_/
48 in?
(310 cm_)
24 in?
(155 cm_)
Cabinet installation (dryer only):
1 ii
(25 ram}
(25 ram}
