Maytag MLE2000AYW - Before You Start; Tools and Items Provided

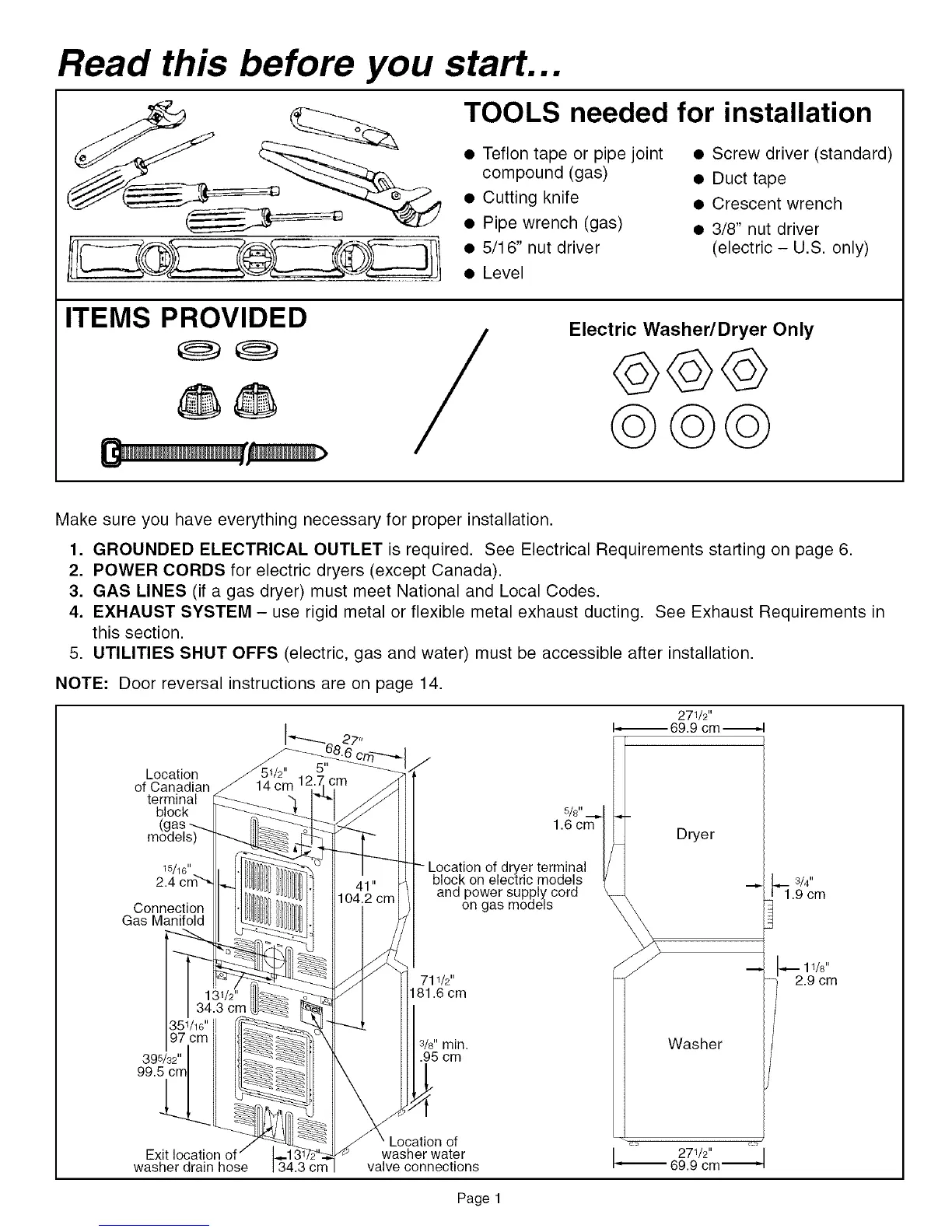

Read this before you start...
TOOLS needed for installation
• Teflon tape or pipe joint
compound (gas)
• Cutting knife
• Pipe wrench (gas)
• 5/16" nut driver
• Level
• Screw driver (standard)
• Duct tape
• Crescent wrench
• 3/8" nut driver
(electric - U.S. only)
ITEMS PROVIDED
@@
/
Electric Washer/Dryer Only
©©©
©©©
Make sure you have everything necessary for proper installation.
1. GROUNDED ELECTRICAL OUTLET is required. See Electrical Requirements starting on page 6.
2. POWER CORDS for electric dryers (except Canada).
3. GAS LINES (if a gas dryer) must meet National and Local Codes.
4. EXHAUST SYSTEM - use rigid metal or flexible metal exhaust ducting. See Exhaust Requirements in
this section.
5. UTILITIES SHUT OFFS (electric, gas and water) must be accessible after installation.
NOTE: Door reversal instructions are on page 14.
Location
of Canadian
terminal
block
Connection
Gas Manifold
711/2"
81.6 cm
271/2"
I_ 69.9 cm -_,4
8/8"
1.6 cm Dryer
Loca!ion of,dryer terminal /
OIOCKon electric models
and power supply cord _ "-"
on gas models
3/8"min.
.95 cm
398/32"
99.5
Exit
washer drain hose
Location of
washer water
valve connections
Washer
271/2''
l 69.9 cm "_
11/8"
2.9 cm
