Installation Instructions

ALIGNING THE WALL PLATE

1.Draw a Vertical line on the wall at the center of the

30" wide space.

2.Draw a Horizontal line on the wall at the bottom of

“Rear Wall Template”.

3.Drill 5/8" holes for toggle bolts on 3 locations

(Hole A, Hole B, Hole C) but if the location of hole

is same as that of stud, drill a 3/16" hole for wood

screw. In other words, toggle bolt can not be used

to the location of stud.

NOTE: DO NOT MOUNT THE PLATE AT THIS

TIME.

NOTE: Holes A, B and C are inside area E. If none of

A, B and C is in a stud, find a stud somewhere in area

E and draw a forth circle to line up with the stud. It is

important to use at least one wood screw mounted

firmly in a stud to support the weight of the

microwave. Set the mounting plate aside.

CAUTION: Wear gloves to avoid cutting

fingers on sharp edges.

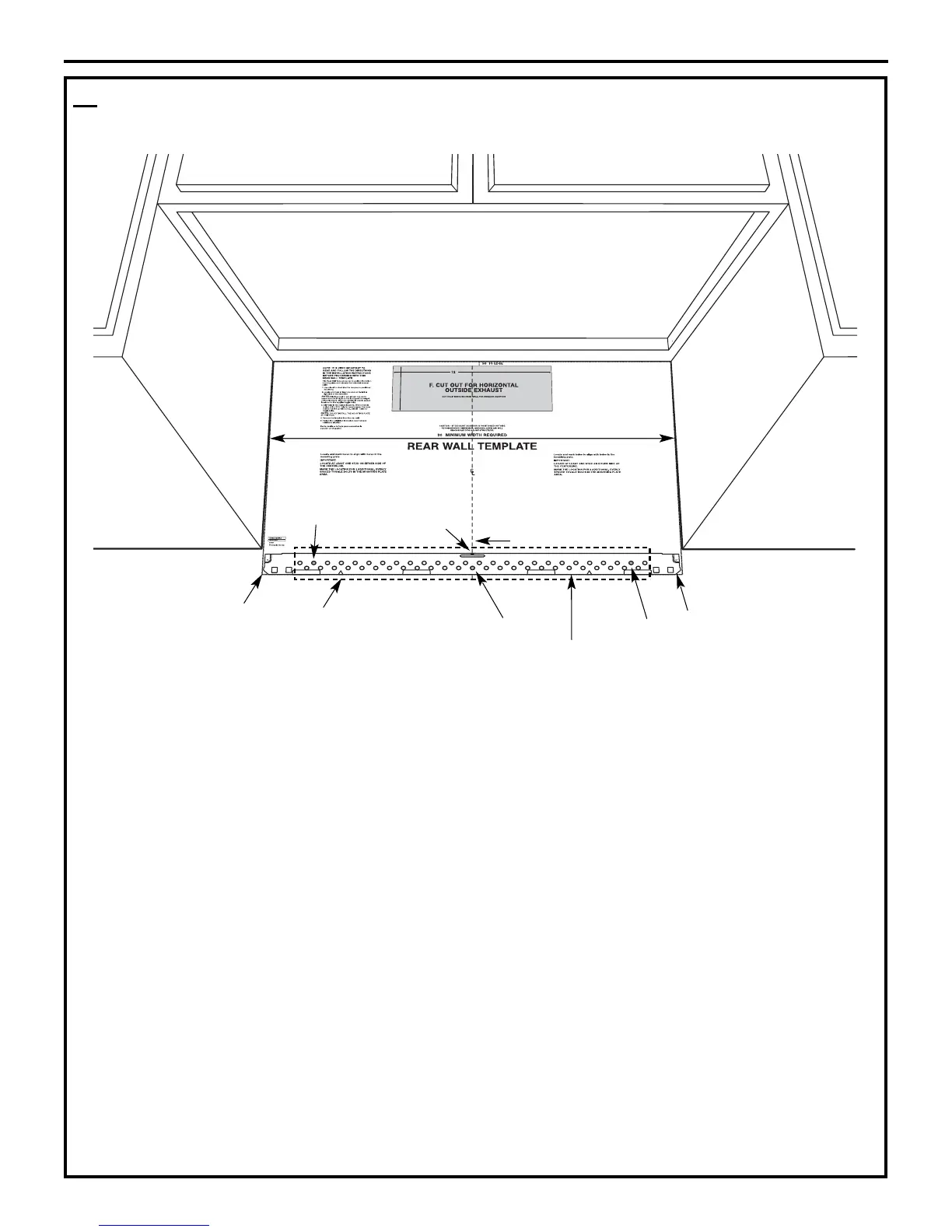

Area E

Hole C

Hole B

Hole A

Centerline

notches

Draw a Vertical Line

on Wall from Center

of Top Cabinet

Draw a Horizontal line on wall from

bottom of “Rear Wall Template”.

Horizontal Line
