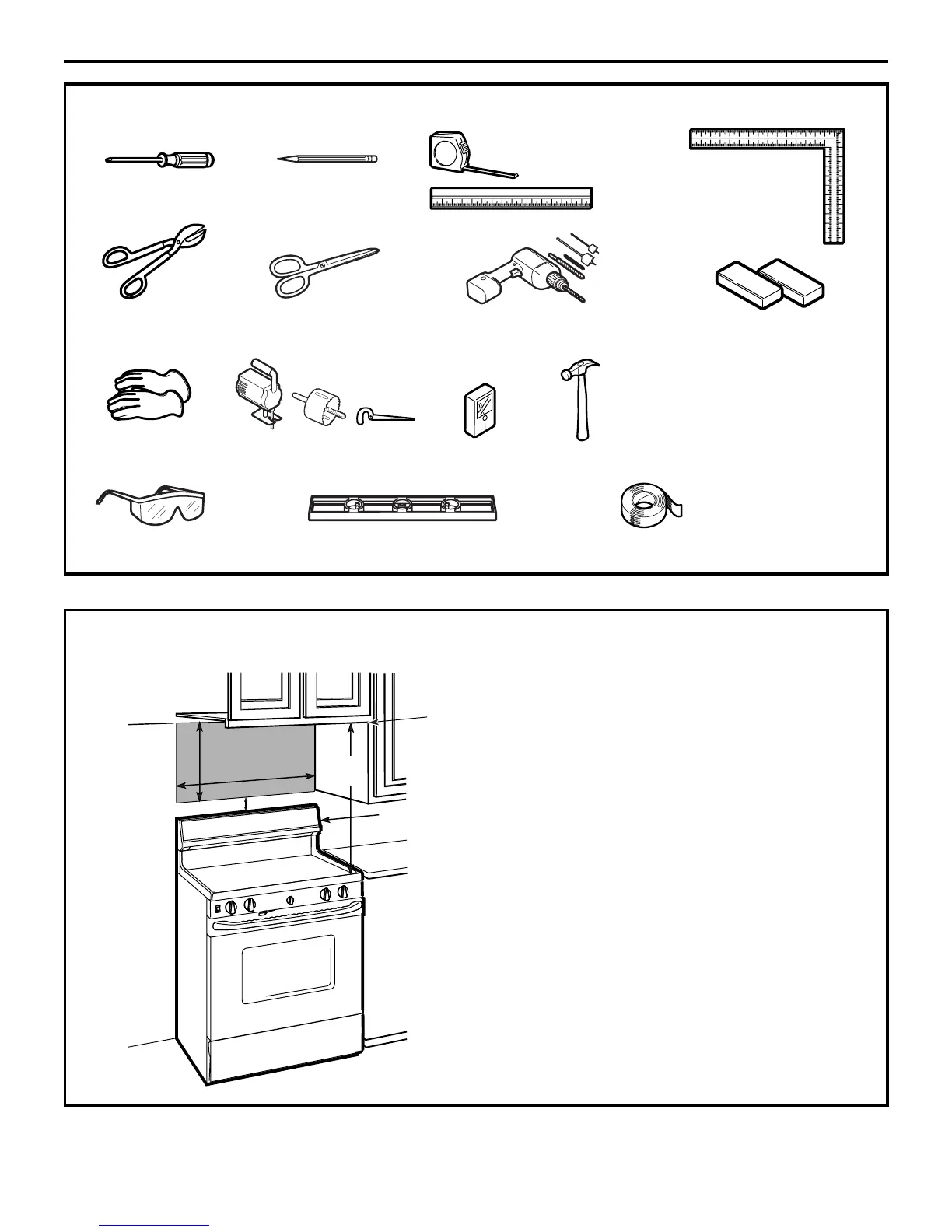

Installation Instructions
7
TOOLS YOU WILL NEED
# 1 and #2 Phillips screwdriver
LevelSafety goggles
Stud finder or Hammer (optional)
Saw (saber, hole or keyhole)
Gloves
Scissors
(to cut template, if necessary)
Pencil
Filler blocks or scrap wood
pieces, if needed for top
cabinet spacing (used on
recessed bottom cabinet
installations only)
Duct and masking tape
Ruler or tape measure
and straight edge
Carpenter square
(optional)
Tin snips (for cutting
damper, if required)
Electric drill with
3
/16
", ½"
and
5
/8
" drill bits
MOUNTING SPACE
NOTES:
The space between the cabinets must be
30" wide and free of obstructions.
This microwave oven is for installation over
ranges up to 33" wide.
If you are going to vent your microwave
oven to the outside, see Hood Exhaust
Section for exhaust duct preparation.
When installing the microwave oven
beneath smooth flat cabinets be careful
to follow the instructions on the top
cabinet template for power cord
clearance.
Backsplash
16-½ "
33"min.
5"
3
0
"
Bottom edge of
cabinet needs
to be 33" or
more from the
cooking
surface
