Installation Instructions
17
B5.

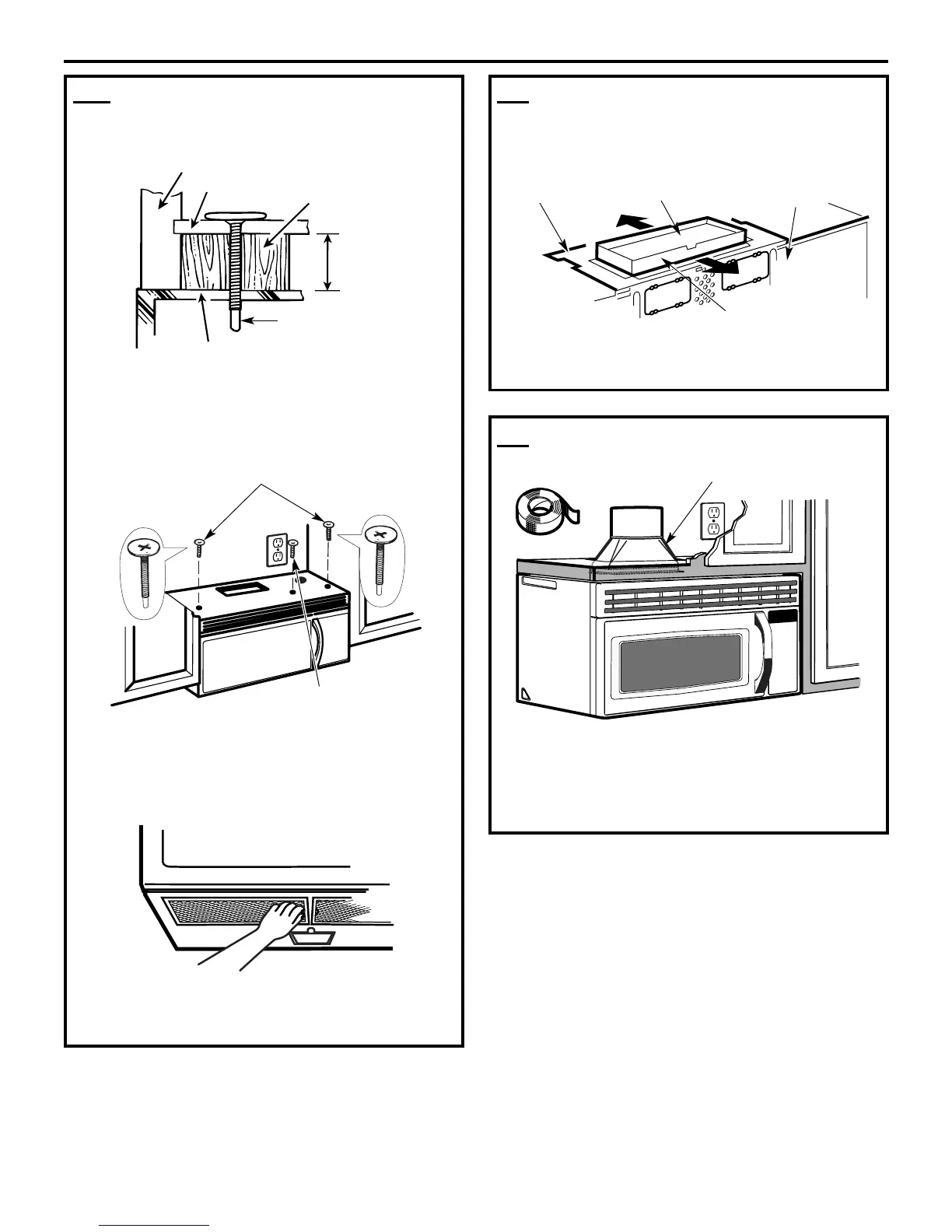

MOUNT THE MICROWAVE OVEN
(cont.)
4.Attach the microwave oven to the top cabinet.
7.Tighten the outer two screws to the top of the
microwave oven. (While tightening screws, hold
the microwave oven in place against the wall and
the top cabinet.)
8.Install grease filters. See the Owner’s Manual
packed with the microwave.
B6.
ADJUST THE EXHAUST ADAPTOR
Open the top cabinet and adjust the exhaust adaptor
to connect to the house duct.
B7.
CONNECTING DUCTWORK
1.Extend the house duct down to connect to the
exhaust adaptor.
2.Seal exhaust duct joints using duct tape.
Cabinet Front
Self-Aligning Screw
Equivalent to
Depth of Cabinet
Recess
Microwave Oven Top
Filler Block
Cabinet Bottom Shelf
6.Tighten center screw
completely.
5.Insert 2 self-aligning screws
through outer top cabinet holes.
Turn two full turns on each screw.
Back of
Microwave
Damper
For Front-to-Back
Adjustment, Slide the
Exhaust Adaptor as
Needed
Blower-Plate
House Duct
To Next Page
