9

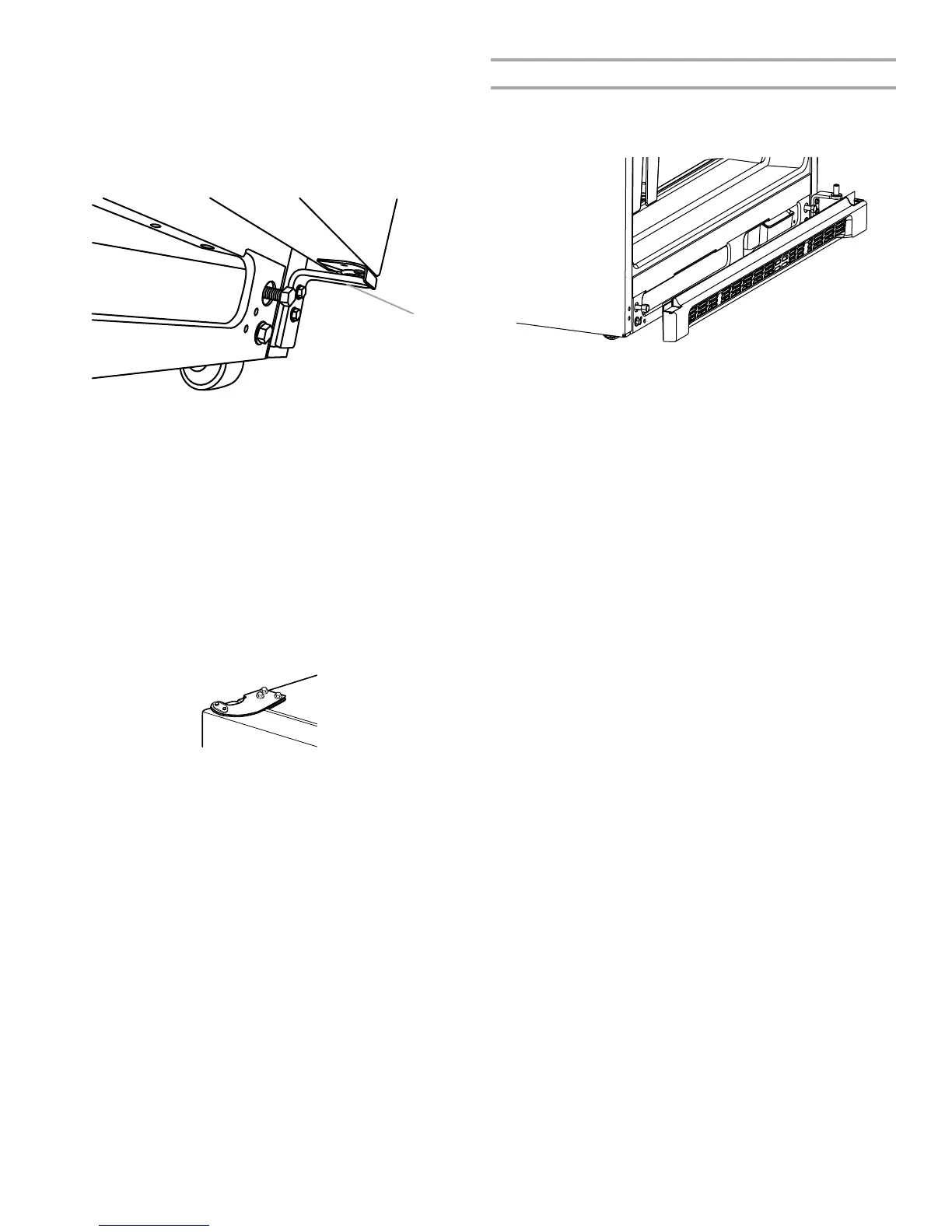

Install Refrigerator Door
1. Replace the parts for the bottom hinge as shown. Tighten
screws.
NOTE: Provide additional support for the doors while the
hinges are being moved. Do not depend on the door magnets
to hold the doors in place while you are working.
2. Lower the bottom of the refrigerator door onto the bottom
hinge pin.
3. Measure the distance from the bottom of the refrigerator door
to the floor. The distance should be approximately 3¹⁄₂"
(88 mm).
NOTE: If necessary, loosen the bottom hinge without
removing the screws, adjust the door to the correct height,
and then fully tighten the screws.
4. Assemble the parts for the center hinge as previously shown
and tighten all screws. See Center Hinge graphic.
Install Freezer Door
1. Place washer on the upper hinge pin of the center hinge.
2. Place the freezer door on the upper hinge pin of the center
hinge.
3. Insert the top hinge pin into the drilled hole in the top of the
freezer door. Do not tighten the screws completely.
4. Align the doors so that the bottom of the freezer door aligns
evenly with the top of the refrigerator door. Tighten all screws.
NOTE: The distance between the doors should be
approximately ⁵⁄₈" (16 mm).
Final Steps
1. Remove the cover from the base grille. Move cover to the
opposite side.
2. Push the base grille toward the cabinet until it is flush.
3. Plug in the refrigerator or reconnect the power.
4. Reset the controls. See “Using the Controls.”
5. Return all removable door parts to doors and food to
refrigerator.
A. Bottom hinge
