7. Move the door stop to the opposite side, making sure that the
hole in the door stop plate is aligned perfectly with the hole for
the center hinge pin.
8. Using the screw removed in Step 6, fasten the door stop to
the bottom of the freezer door.
9. Align the handle with the shoulder screw. Position the handle
so that the mounting base is flush against the door.
10. Fasten the bottom of the handle to the bottom of the freezer
door.
11. Tighten all screws. Set aside the freezer door until the hinges
and refrigerator door are in place.
Reverse Refrigerator Door
1. Remove the screws from the top of the refrigerator door
handle.
2. Using the ¹⁄₈" hex key, loosen the setscrew attaching the
bottom of the handle. Pull the handle away from the door.
3. Remove door hinge hole plug from refrigerator door. Move to
opposite side hinge hole.
4. Remove and discard the plug covering the hole on the
opposite side of the door, where the refrigerator door handle
will be installed.
NOTE: A new door handle hole plug is provided in the
Reversibility Kit.
5. Remove the shoulder screw and its washer from the left-hand
side of the door and fasten it into the hole in the door that was
behind the plug.
6. Remove the door stop from the bottom of the refrigerator
door.
7. Replace the door stop on the opposite side of the refrigerator
door, making sure that the hole in the door stop plate is
aligned perfectly with the hole for the bottom hinge pin.
8. Using the screw removed in Step 6, fasten the door stop to
the bottom of the refrigerator door.
9. Align the handle with the shoulder screw. Position the handle
so that the mounting base is flush against the door.
10. Fasten the top of the refrigerator handle to the top of the
refrigerator door.
11. Cover the remaining hole with the hole plug (provided).
12. Tighten all screws. Set aside refrigerator door until bottom
hinge is installed on the opposite side of the refrigerator.

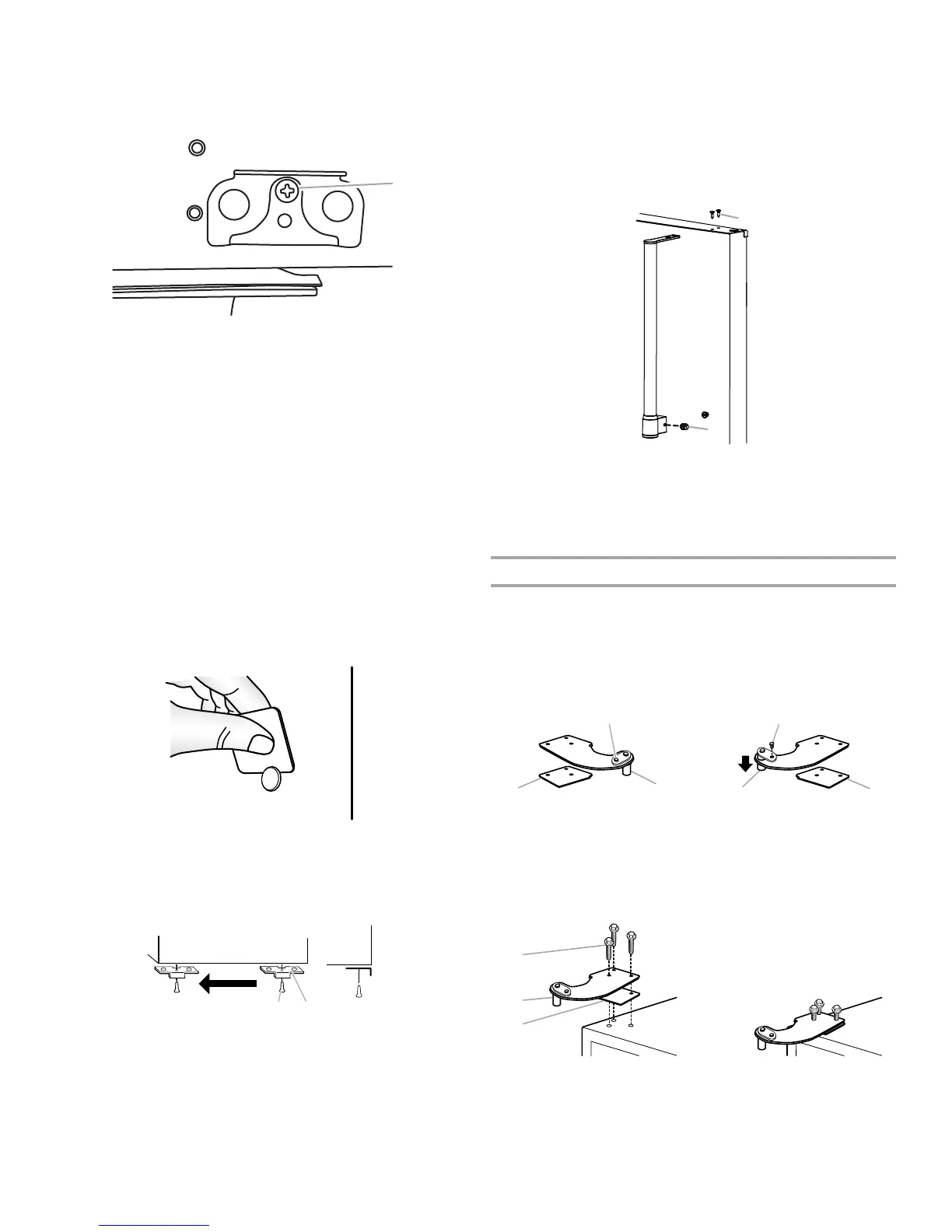

Replace Doors and Hinges
Reverse Top Hinge
1. Remove the screw attaching the hinge pin to the hinge. Turn
the hinge over so that it is pointing in the opposite direction.
2. Place the plastic spacer beneath the hinge so that it will be
between the hinge and the cabinet, making sure the holes are
aligned.
3. Fasten the top hinge to the opposite side of the cabinet,
inserting the screws only halfway, so you will be able to
replace and align the freezer door later.
A. Door stop screw
A. Door stop screw
B. Door stop
A
B
A
A. Flat-head handle screws
B. Setscrew
A. Plastic spacer
B. Hinge pin screw
C. Hinge pin
A.
⁵⁄₁₆ " Hex-head hinge screws
B. Top hinge pin
C. Plastic spacer
A
B
B
C
A
B
C
A
A
B
C
