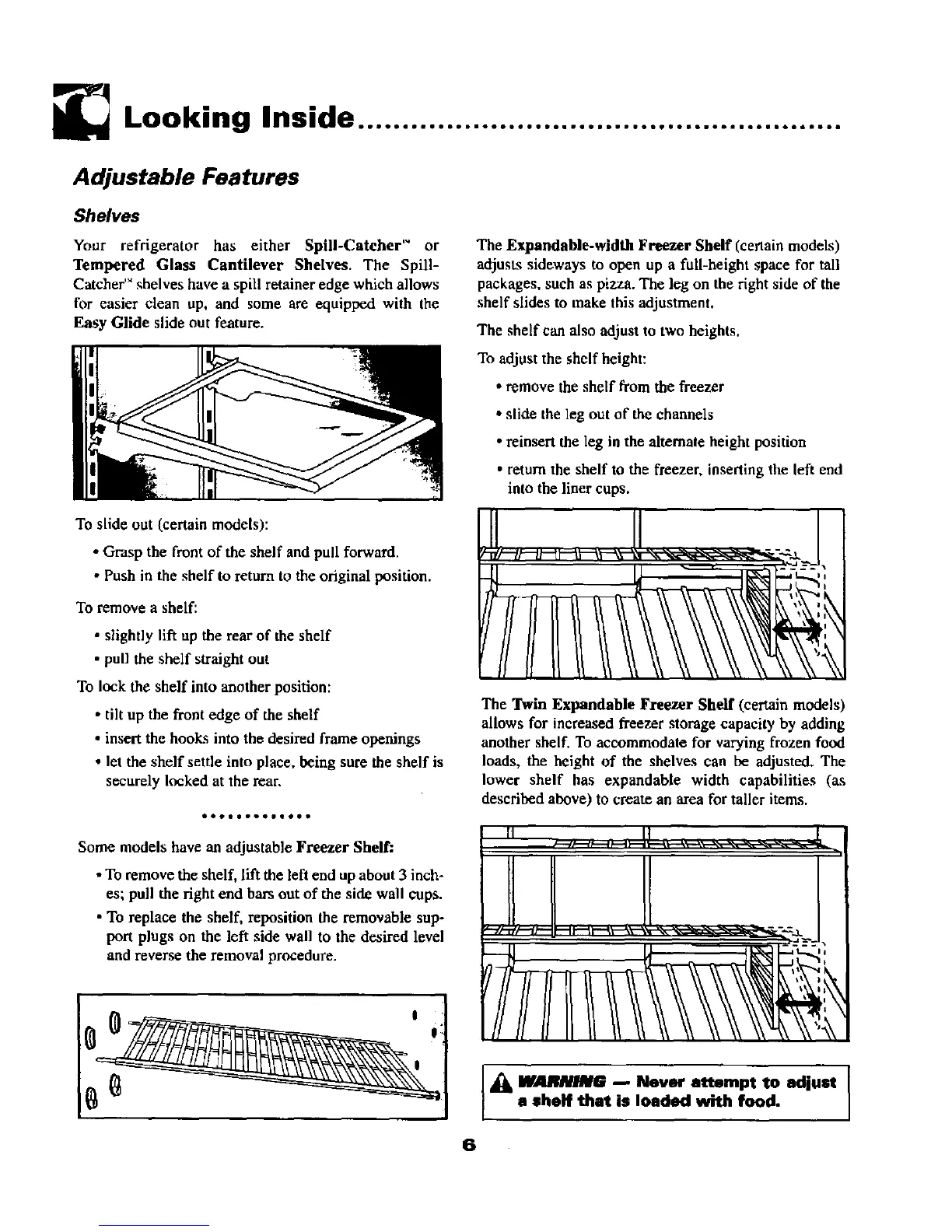

Looking Inside .......................................................
Adjustable Features
Shelves
Your refrigerator has either Spill-Catcher'" or
Tempered Glass Cantilever Shelves. The Spill-
Catcher'" shelves have a spill retainer edge which allows
for easier clean up, and some are equipped with the
Easy Glide slide out feature.
To slide out (certain models):
• Grasp the front of the shelf and pull forward.
• Push in the shelf to return to the original position.
To remove a shelf:
• slightly lift up the rear of the shelf
• pull the shelf straight out
To lock the shelf into another position:
• tilt up the front edge of the shelf
• insert the hooks into the desired frame openings
• let the shelf settle into place, being sure the shelf is
securely locked at the rear.
Some models have an adjustable Freezer Shelf."
• To remove the shelf, lift the left end up about 3 inch-
es; pull the right end bars out of the side wall cups.
• To replace the shelf, reposition the removable sup-
port plugs on the left side wall to the desired level
and reverse the removal procedure.
The Expandable.width Freezer Shelf (certain models)
adjusts sideways to open up a full-height space for tall
packages, such as pizza. The leg on the right side of the
shelf slides to make this adjustment,
The shelf can also adjust to two heights.
To adjust the shelf height:
• remove the shelf from the freezer
• slide the leg out of the channels
• reinsert the leg in the alternate height position
• return the shelf to the freezer, inserting the left end
into the liner cups.
__.
The Twin Expandable Freezer Shelf (certain models)
allows for increased freezer storage capacity by adding
another shelf. To accommodate for varying frozen food
loads, the height of the shelves can be adjusted. The
lower shelf has expandable width capabilities (as
described above) to create an area for taller items.
I_L WARN/NIm -- Never attempt to adjust [
I
a shelf that is loaded with food.
I
6
